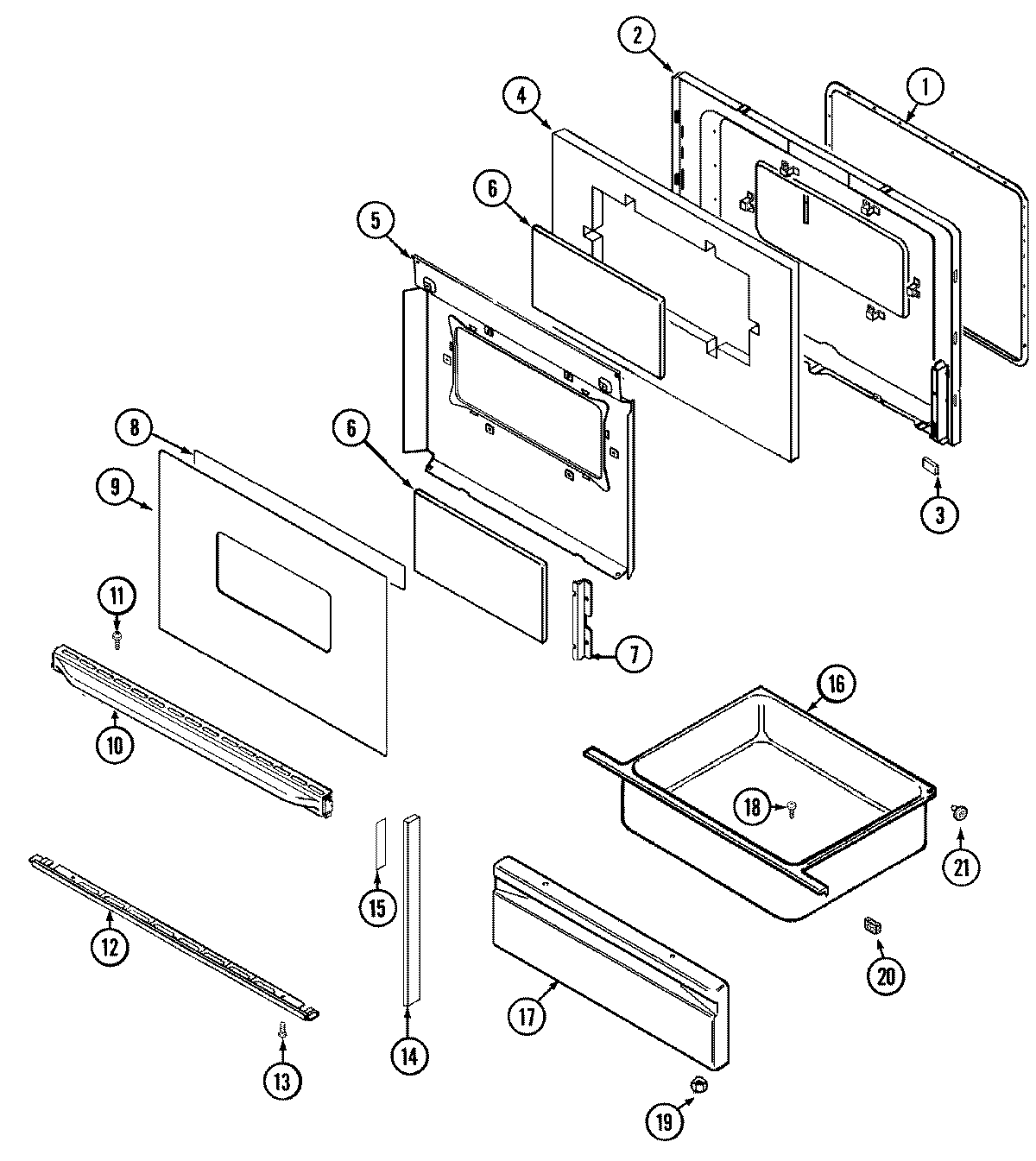

CE38300BAV 03 – DOOR/DRAWER

Products

Position	Product
1	GASKT-DOOR OVEN
2	LINING, OVEN DOOR
4	MAY 74001842
5	MAY 74001843
6	GLASS, INNER
7	MAY 74001844
8	MAY 8270P078-60
9	MAY 74003395
10	MAY 74003396
11	WP98008544 Whirlpool Screw Assembly
13	SCREW
14	MAY 74003398
15	MAY 8270P093-60
16	MAY 71003042
17	MAY 74003399
18	MAY 7101P037-60
19	WPW10131078 Whirlpool Nut Assembly
20	WP74005546 Whirlpool RU Spacer
21	SHAFT, STORAGE DRAWER ROLLER
21	WP74004078 Whirlpool Door Roller
21	WP488130 Whirlpool Air Conditioner Nut
