CE3832SRA 03 – DOOR/DRAWER (CE3832SRx) – Aparts

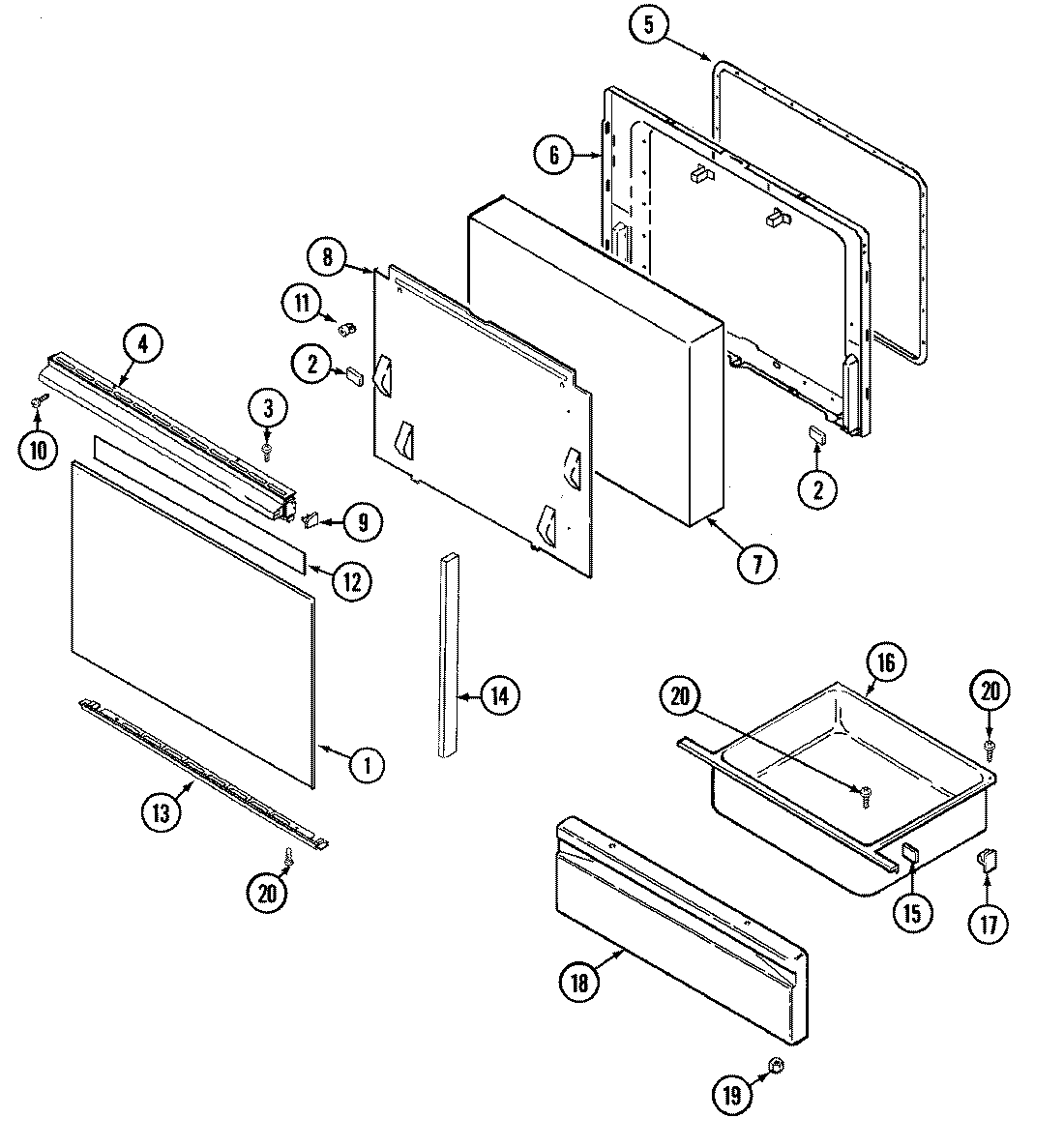

CE3832SRA 03 – DOOR/DRAWER (CE3832SRx)

Products

Position	Product
1	MAY 7902P325-60
2	MAY 8010P085-60
3	WP98008545 Whirlpool Screw
4	MAY 7701P103-60
5	GASKT-DOOR OVEN
6	MAY 2402W210-19
7	MAY 4804F012-60
8	MAY 3601F218-45
9	MAY 7744P076-60
9	MAY 7744P075-60
10	WP3387230 Whirlpool Screw
11	MAY 7103P045-60
12	TAPE, FOIL (3`` WIDE)
13	MAY 7744P105-60
14	MAY 74002084
14	MAY 7744P055-60
15	MAY 7208P011-60
16	MAY 3405F015-80
17	WP8004P026-60 Whirlpool Support
18	MAY 2416F039-64
19	WPW10131078 Whirlpool Nut Assembly
20	SCREW
