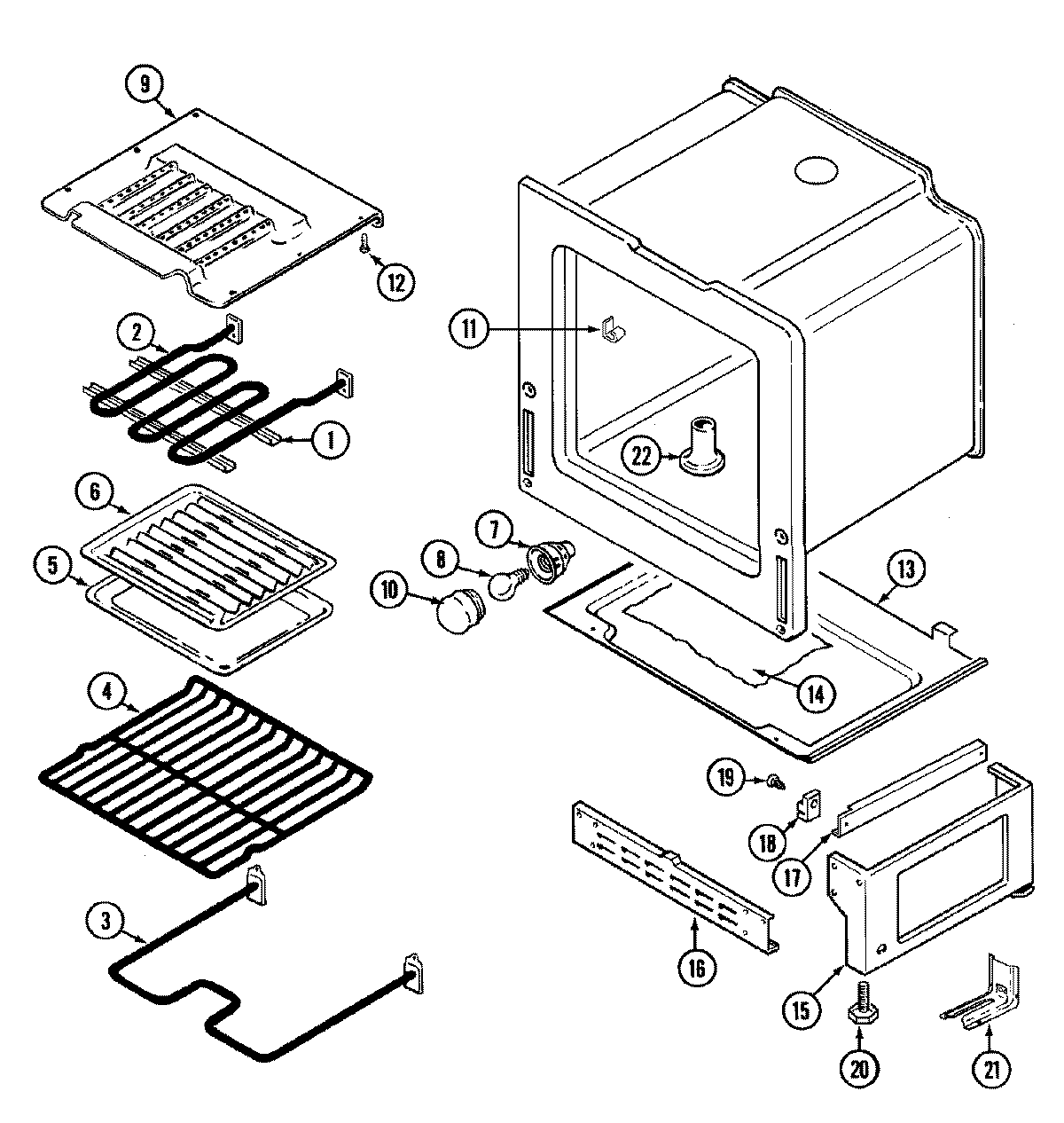

CE3832XRA 06 – OVEN/BASE

Products

Position	Product
1	MAY 7101P334-60
1	MAY 3807F387-45
2	MAY Y04000057
3	MAY Y04000058
4	MAY 7801P036-60
5	MAY Y3401F02019
6	MAY Y3413F01619
7	SCREW
7	WP7407P182-60 Whirlpool Lamp
7	MAY 74003125
8	MAY 7407P091-60
9	MAY 3601F202-45
10	WP9781049 Whirlpool Light Lens
11	WP7112P004-60 Whirlpool Thermal Clip
12	MAY 7101P290-60
13	MAY 3804F109-51
14	MAY 8312P058-60
15	MAY 4020W007-80
15	MAY 74003016
16	MAY 4020F001-80
17	RUNNER, DRAWER
17	MAY 3406F028-51
18	MAY 74003566
18	MAY 74002312
18	WP488130 Whirlpool Air Conditioner Nut
18	MAY 8004P025-60
19	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
19	MAY 74001449
20	W11665456 Whirlpool Range Level Foot
20	MAY 7101P306-60
21	MAY 7101P289-60
21	MAY 3801F218-51
22	MAY 8026P019-60
