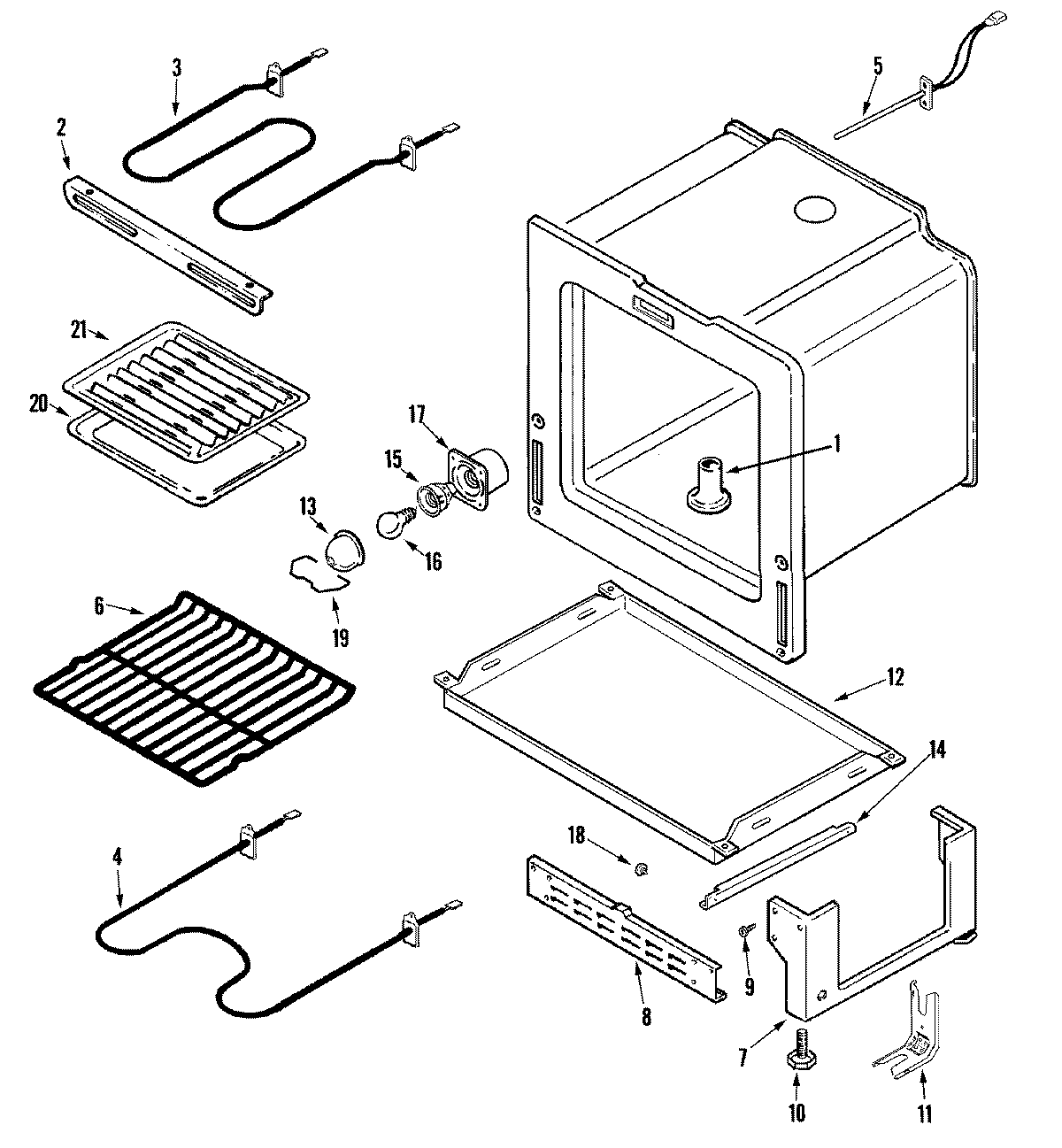

CE38600AAB 05 – OVEN/BASE

CE38600AAB 05 – OVEN/BASE

Written by

in

CE38600AAB 05 – OVEN/BASE

Products

PositionProduct
1MAY 74003469
2SUPPORT, BROIL ELEMENT
3WPW10310249 Whirlpool Broil Element
4WP74010750 Whirlpool Oven Bake Element
512001656 Whirlpool Range Oven Temperature Sensor
6WPW10282492 Whirlpool Oven Rack
7MAY 74006325
8MAY 4020F001-80
10W11665456 Whirlpool Range Level Foot
11WP3801F656-51 Whirlpool Range Anti-Tip Bracket
11WP7101P485-60 Whirlpool Anchor Tip
12RETAINER, INSULATION (BOTTOM)
13MAY 74003389
14RUNNER, DRAWER
14SCREW
15MAY 74003387
16RANGE ONLY 40W 120V APPL BULB
17MAY 74003388
18SHAFT, STORAGE DRAWER ROLLER
18WP74004078 Whirlpool Door Roller
18WP488130 Whirlpool Air Conditioner Nut
19MAY 74003391
20MAY Y3401F02019
21MAY Y3413F01619
21NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
