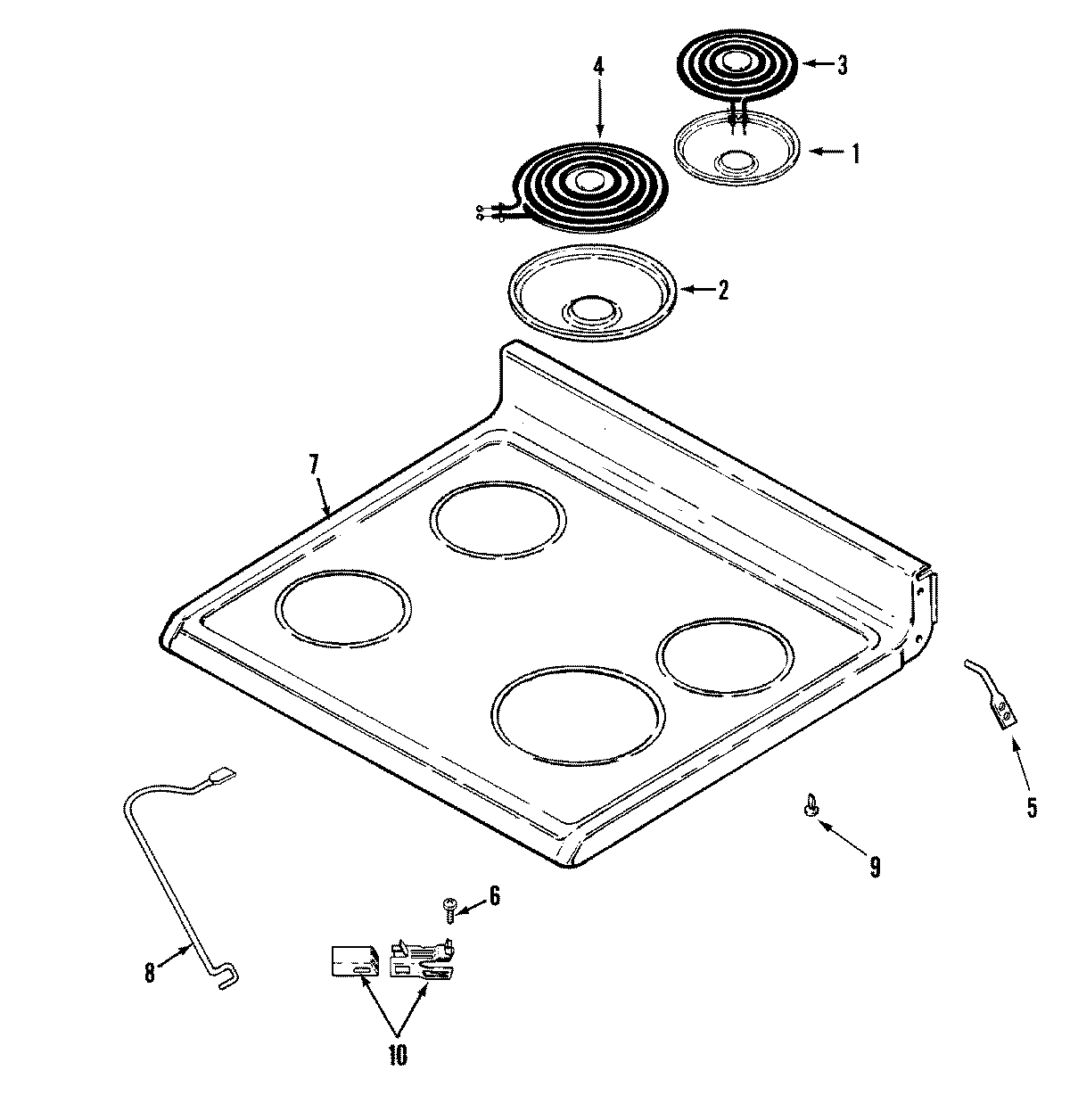

CE38600AAB 07 – TOP ASSEMBLY

CE38600AAB 07 – TOP ASSEMBLY

Written by

in

CE38600AAB 07 – TOP ASSEMBLY

Products

PositionProduct
1WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
2MAY Y04100393
3WPW10259868 Whirlpool Surface Heating Element
4WPW10345410 Whirlpool Surface Element
5MAY 74003371
574003975 Whirlpool Screw P1 (8ABX3/8-BLK)
6MAY 7118P013-60
7MAY 74003582
8MAY 74004084
8NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
9W11189172 Whirlpool Glide Drawer
10WP74007474 Whirlpool Dishwasher Element Receptacle
