CE38600AAQ 03 – DOOR/DRAWER

CE38600AAQ 03 – DOOR/DRAWER

Written by

in

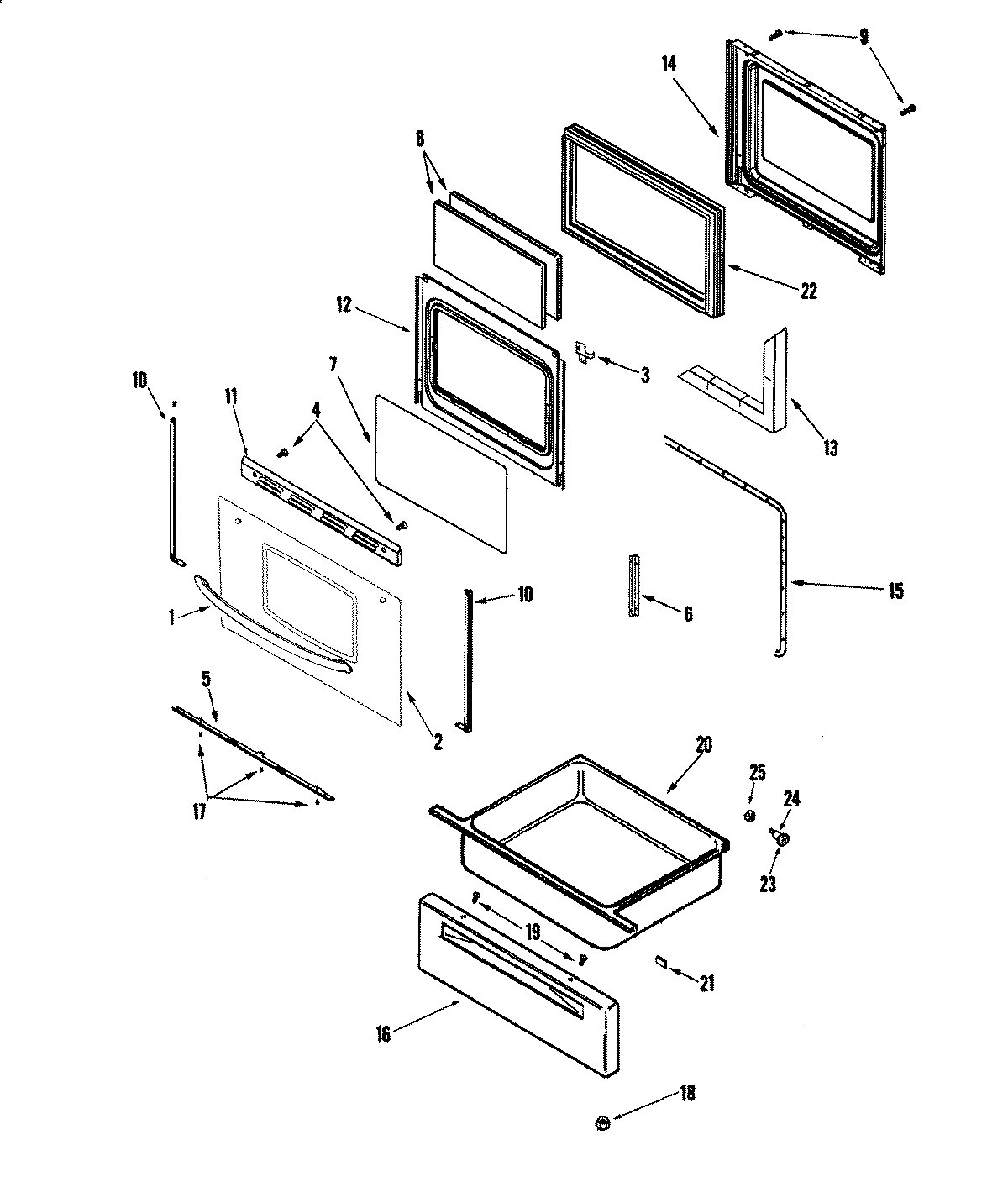

CE38600AAQ 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74010336
2MAY 12002506
33801F831-45 Whirlpool Bracket Assembly
33801F832-45 Whirlpool Bracket
4WP74006515 Whirlpool Washer Screw
4MAY 74001521
5SUPPORT, GLASS (BSQ)
6MAY 74003650
7GLASS, DOOR
874003645 Whirlpool Range Oven Door Inner Glass
9SCREW
10TRIM, DOOR (BSQ-RT)
10TRIM, DOOR (BSQ-LT)
10WP74009014 Whirlpool Double Tape
11MAY 7101P356-60
11MAY 74010237
12MAY 74009502
13INSULATION, OVEN DOOR
14MAY 74003642
14NUT, SNAP (ROUND-BLK)
15GASKT-DOOR OVEN
16MAY 74005055
17WP74009541 Whirlpool Screw Assembly
18WPW10131078 Whirlpool Nut Assembly
20MAY 74008337
21WP74005546 Whirlpool RU Spacer
22FRAME, GLASS
23WP74004078 Whirlpool Door Roller
24SHAFT, STORAGE DRAWER ROLLER
25WP488130 Whirlpool Air Conditioner Nut
