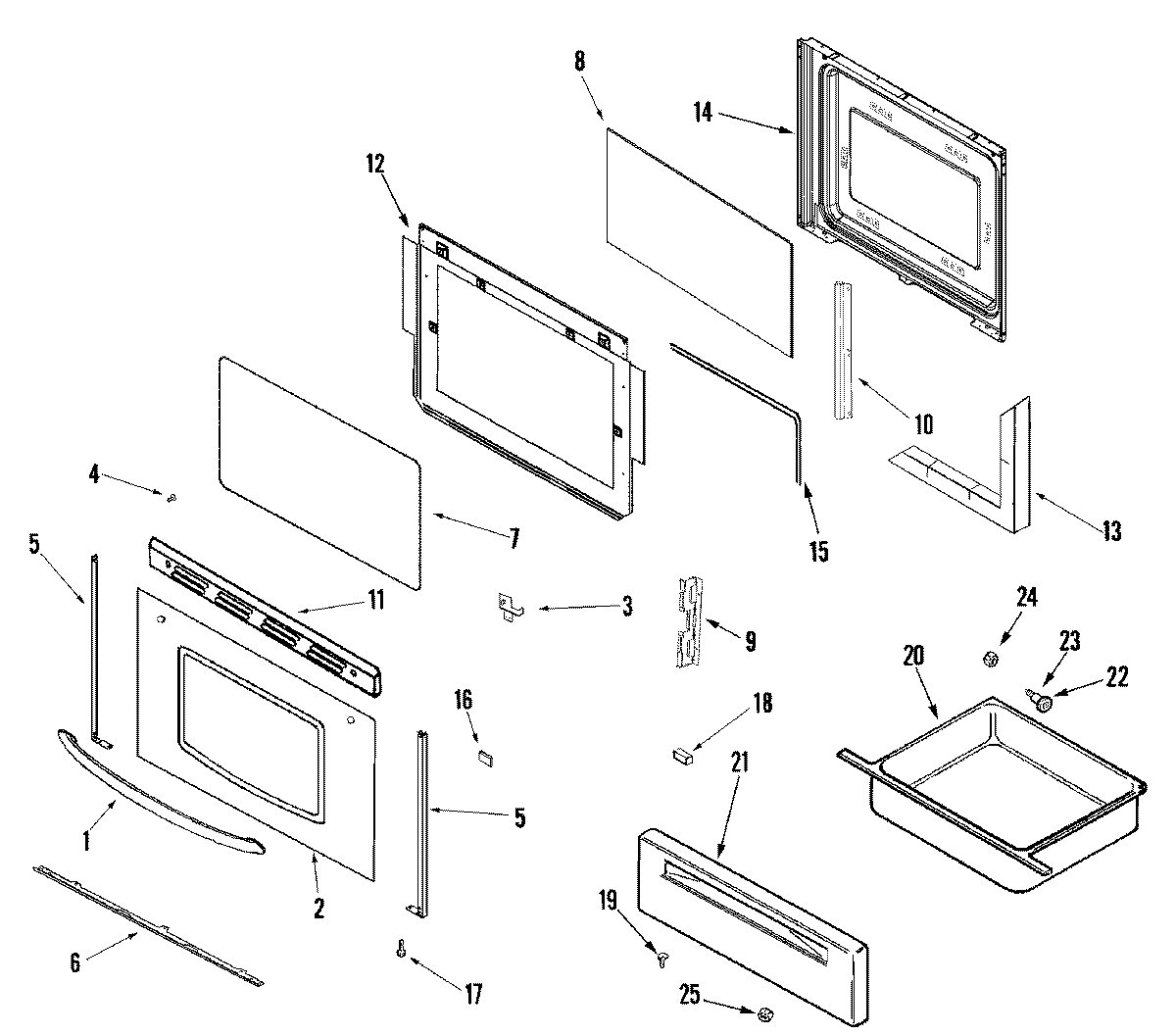

CE38600AAV 04 – DOOR/DRAWER (SERIES 16)

Products

Position	Product
1	MAY 74010337
2	MAY 74010363
2	TAPE, FOIL 29`` X 2``
3	SCREW (10ABX1/4P TR ZN)
3	3801F831-45 Whirlpool Bracket Assembly
3	3801F832-45 Whirlpool Bracket
3	SCREW, 8 X 1/2
4	WP74006515 Whirlpool Washer Screw
5	WP74004224 Whirlpool Tape
5	WP3608F117-71 Whirlpool Door Trim
5	WP3608F116-71 Whirlpool Door Trim
6	WP3807F708-71 Whirlpool Support
7	GLASS, DOOR
8	74003645 Whirlpool Range Oven Door Inner Glass
9	SCREW
9	MAY 74003650
10	3801F886-51 Whirlpool Mounting Bracket
11	MAY 74010238
12	MAY 7101P356-60
12	3601F373-51 Whirlpool Baffle
13	INSULATION, OVEN DOOR
14	NUT, SNAP (ROUND-BLK)
14	LINING, DOOR
15	GASKT-DOOR OVEN
16	SPACER, RUBBER (BLK-SQUARE)
17	WP98008544 Whirlpool Screw Assembly
18	WP74005546 Whirlpool RU Spacer
20	MAY 74008337
21	MAY 74003399
22	WP74004078 Whirlpool Door Roller
23	SHAFT, STORAGE DRAWER ROLLER
24	WP488130 Whirlpool Air Conditioner Nut
25	WPW10131078 Whirlpool Nut Assembly
