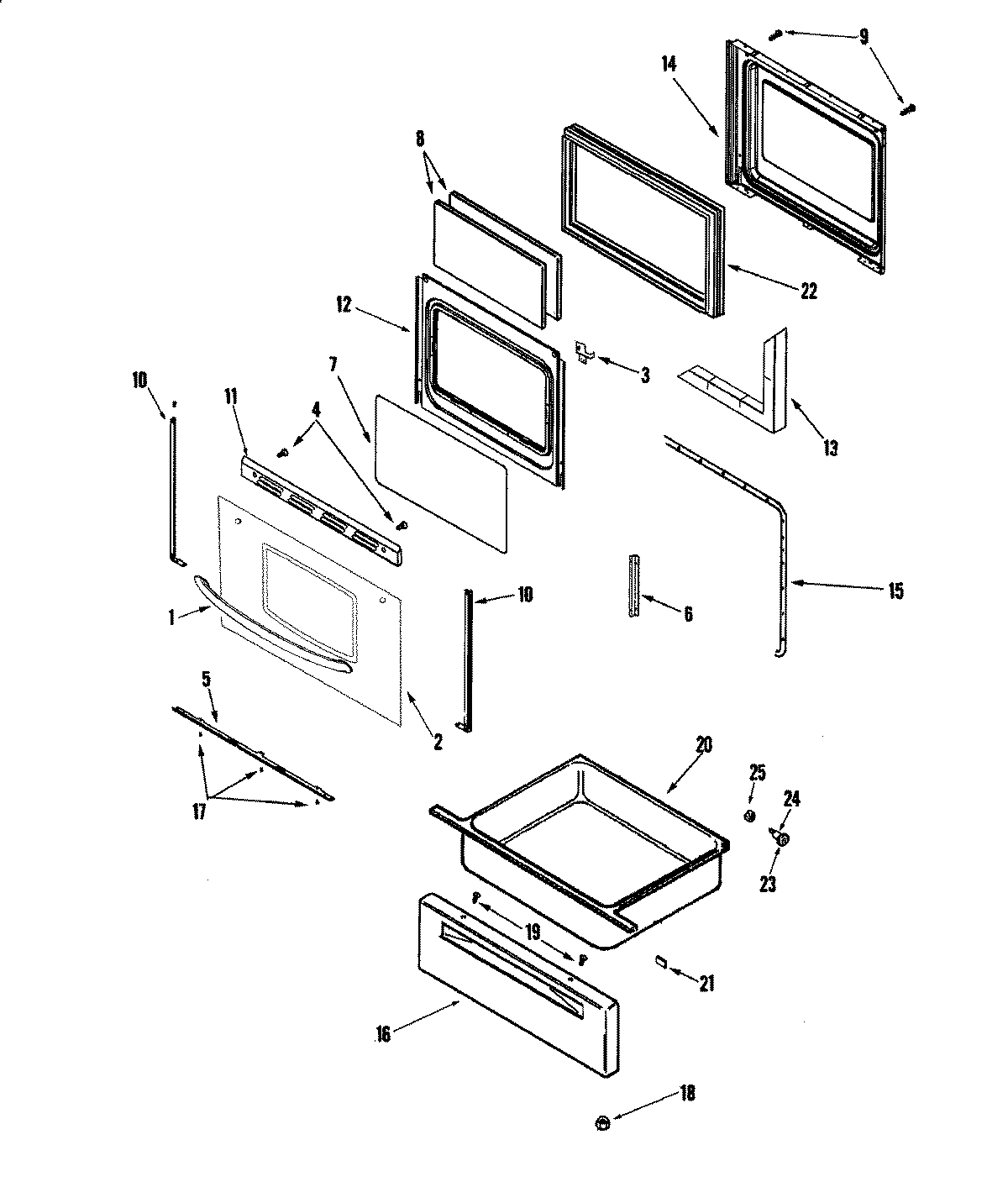

CE38600AAW 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74010338
2	MAY 12002507
3	3801F832-45 Whirlpool Bracket
3	3801F831-45 Whirlpool Bracket Assembly
4	MAY 74001521
4	WP74006515 Whirlpool Washer Screw
5	SUPPORT, GLASS (BLK)
6	MAY 74003650
7	GLASS, DOOR
8	74003645 Whirlpool Range Oven Door Inner Glass
9	SCREW
10	WP3608F117-70 Whirlpool Door Trim
10	WP3608F116-70 Whirlpool Door Trim
10	WP74009014 Whirlpool Double Tape
11	MAY 74010239
11	MAY 7101P356-60
12	MAY 74009502
13	INSULATION, OVEN DOOR
14	MAY 74003642
14	NUT, SNAP (ROUND-BLK)
15	GASKT-DOOR OVEN
16	MAY 74003399
17	WP98008544 Whirlpool Screw Assembly
18	WPW10131078 Whirlpool Nut Assembly
20	MAY 74008337
21	WP74005546 Whirlpool RU Spacer
22	FRAME, GLASS
23	WP74004078 Whirlpool Door Roller
24	SHAFT, STORAGE DRAWER ROLLER
25	WP488130 Whirlpool Air Conditioner Nut
