CE38600AAW 04 – DOOR/DRAWER (SERIES 16)

CE38600AAW 04 – DOOR/DRAWER (SERIES 16)

Written by

in

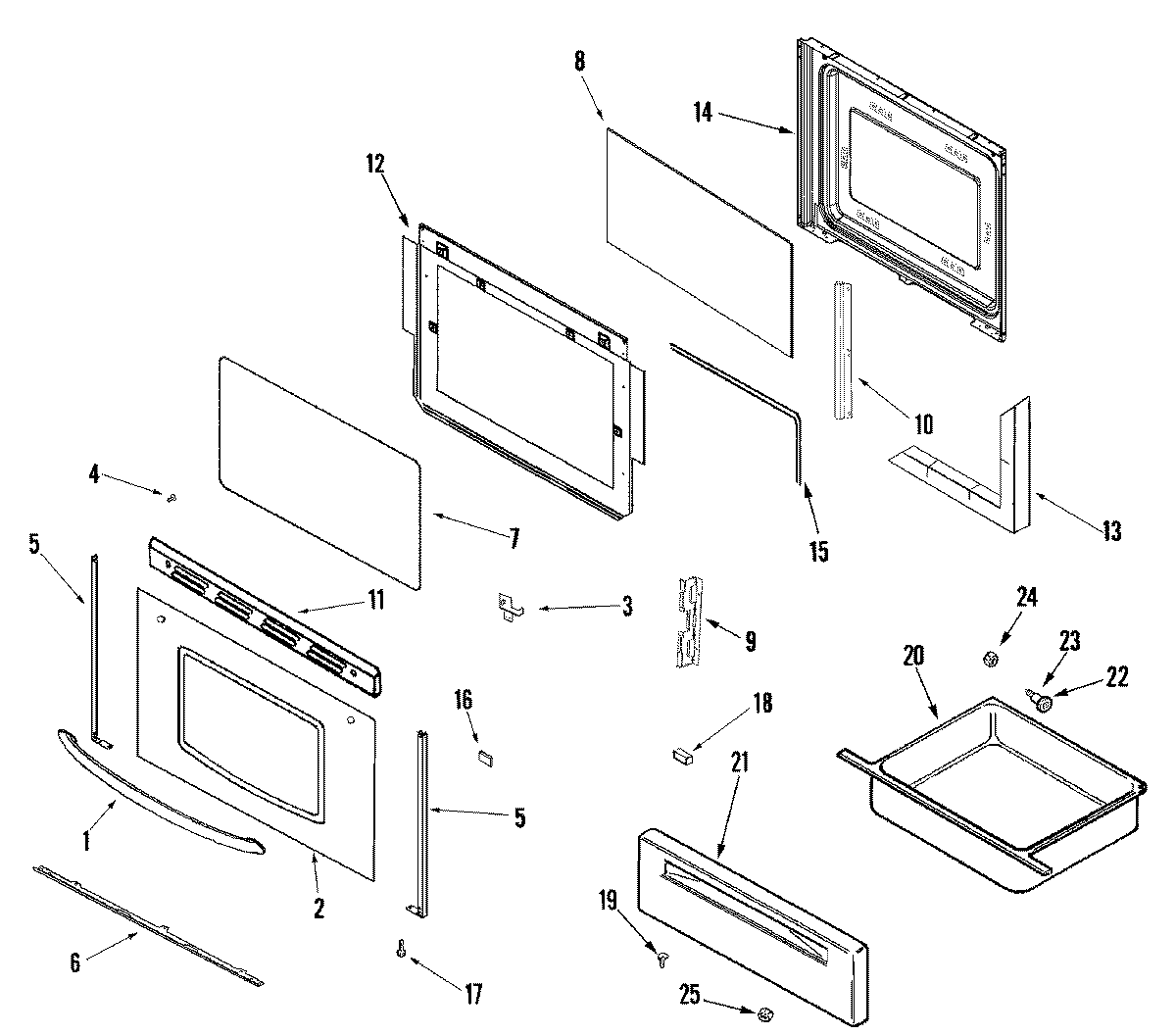

CE38600AAW 04 – DOOR/DRAWER (SERIES 16)

Products

PositionProduct
1MAY 74010338
2MAY 74010362
2TAPE, FOIL 29“ X 2“
33801F832-45 Whirlpool Bracket
3SCREW (10ABX1/4P TR ZN)
33801F831-45 Whirlpool Bracket Assembly
3SCREW, 8 X 1/2
4WP74006515 Whirlpool Washer Screw
5WP3608F116-70 Whirlpool Door Trim
5WP74004224 Whirlpool Tape
5WP3608F117-70 Whirlpool Door Trim
6SUPPORT, GLASS (BLK)
7GLASS, DOOR
874003645 Whirlpool Range Oven Door Inner Glass
9SCREW
9MAY 74003650
103801F886-51 Whirlpool Mounting Bracket
11MAY 74010239
12MAY 7101P356-60
123601F373-51 Whirlpool Baffle
13INSULATION, OVEN DOOR
14NUT, SNAP (ROUND-BLK)
14LINING, DOOR
15GASKT-DOOR OVEN
16SPACER, RUBBER (BLK-SQUARE)
17WP98008545 Whirlpool Screw
17WP98008544 Whirlpool Screw Assembly
18WP74005546 Whirlpool RU Spacer
20MAY 74008337
21MAY 74003399
22WP74004078 Whirlpool Door Roller
23SHAFT, STORAGE DRAWER ROLLER
24WP488130 Whirlpool Air Conditioner Nut
25WPW10131078 Whirlpool Nut Assembly
