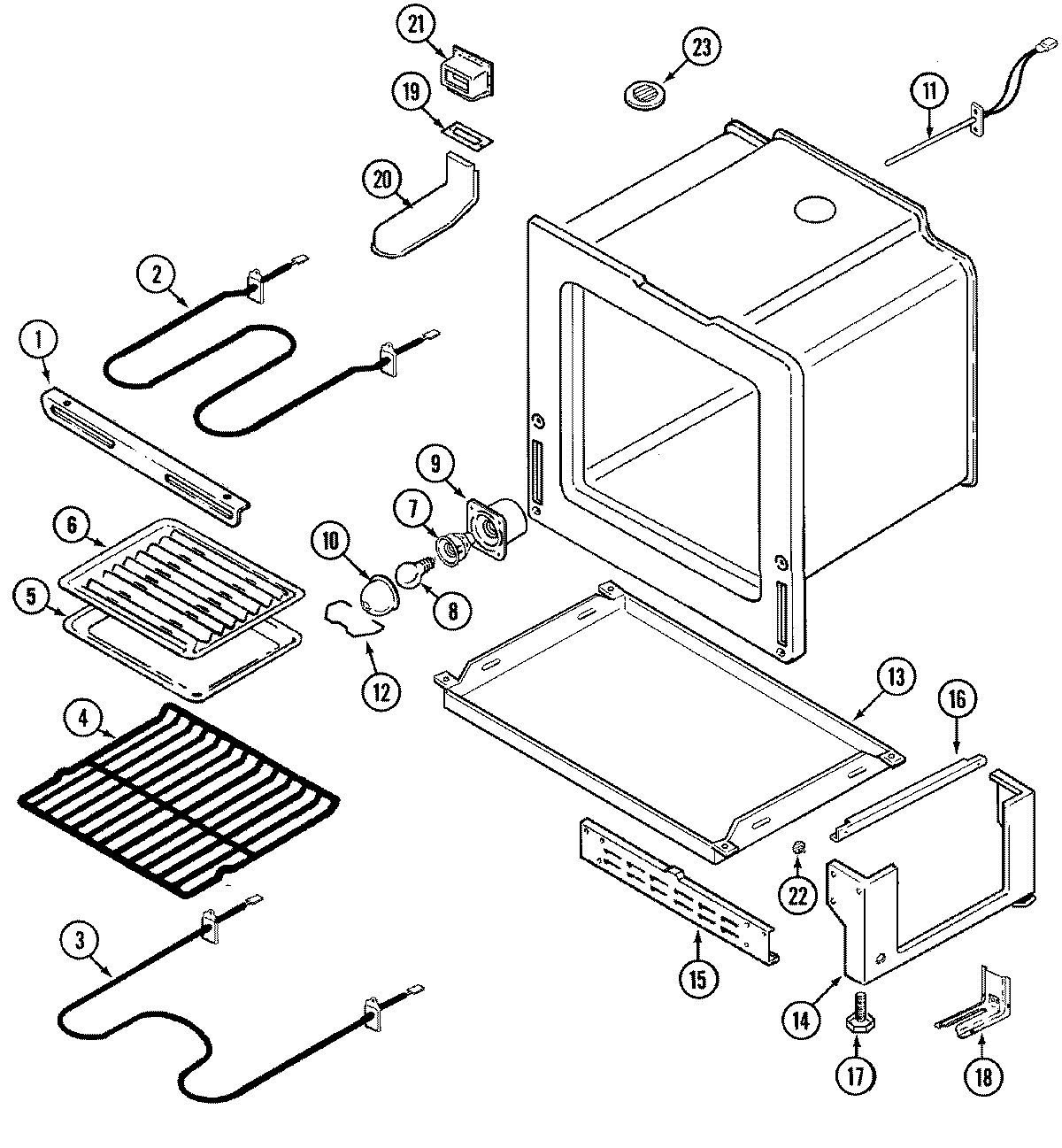

CE38700AAV 04 – OVEN/BASE

CE38700AAV 04 – OVEN/BASE

Written by

in

CE38700AAV 04 – OVEN/BASE

Products

PositionProduct
1SUPPORT, BROIL ELEMENT
2WPW10310249 Whirlpool Broil Element
3WP74010750 Whirlpool Oven Bake Element
4WPW10282492 Whirlpool Oven Rack
5MAY Y3401F02019
6MAY Y3413F01619
7MAY 74003387
7WP7407P182-60 Whirlpool Lamp
8MAY Y707319
9MAY 74003388
10MAY 74003389
10WP9781049 Whirlpool Light Lens
11MAY 74003390
12MAY 74003391
13MAY 74003242
13MAY 8312P058-60
14MAY 74003393
15MAY 4020F001-80
16RUNNER, DRAWER
17W11665456 Whirlpool Range Level Foot
18WP7101P485-60 Whirlpool Anchor Tip
18MAY 74002311
19MAY 74003285
20MAY 74003394
21MAY 3826W014-45
21SCREW
22WP488130 Whirlpool Air Conditioner Nut
22MAY 74003566
23MAY 74003633
