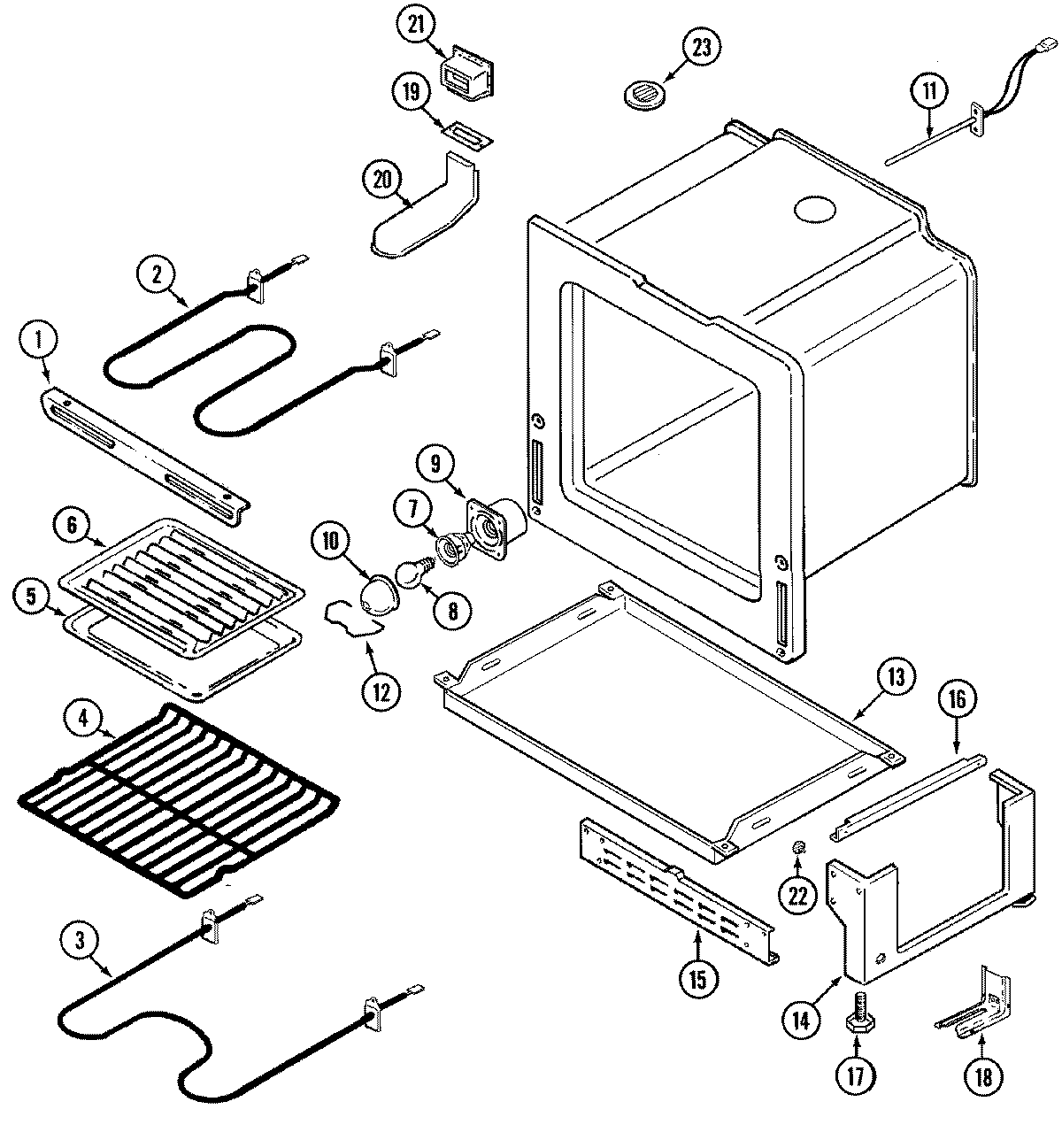

CE38700BAV 04 – OVEN/BASE

Products

Position	Product
1	SUPPORT, BROIL ELEMENT
2	WPW10310249 Whirlpool Broil Element
3	WP74010750 Whirlpool Oven Bake Element
4	WPW10282492 Whirlpool Oven Rack
5	MAY Y3401F02019
6	MAY Y3413F01619
7	MAY 74003387
8	MAY Y707319
9	MAY 74003388
10	MAY 74003389
11	12001656 Whirlpool Range Oven Temperature Sensor
12	MAY 74003391
13	RETAINER, INSULATION (BOTTOM)
14	MAY 74006325
15	MAY 4020F001-80
16	RUNNER, DRAWER
17	W11665456 Whirlpool Range Level Foot
18	WP7101P485-60 Whirlpool Anchor Tip
18	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
19	MAY 74003285
20	SCREW
20	MAY 74003394
21	MAY 74004535
22	74005230 Whirlpool Oven Lock Nut (8-32)
22	SHAFT, STORAGE DRAWER ROLLER
22	WP74004078 Whirlpool Door Roller
23	MAY 74003633
