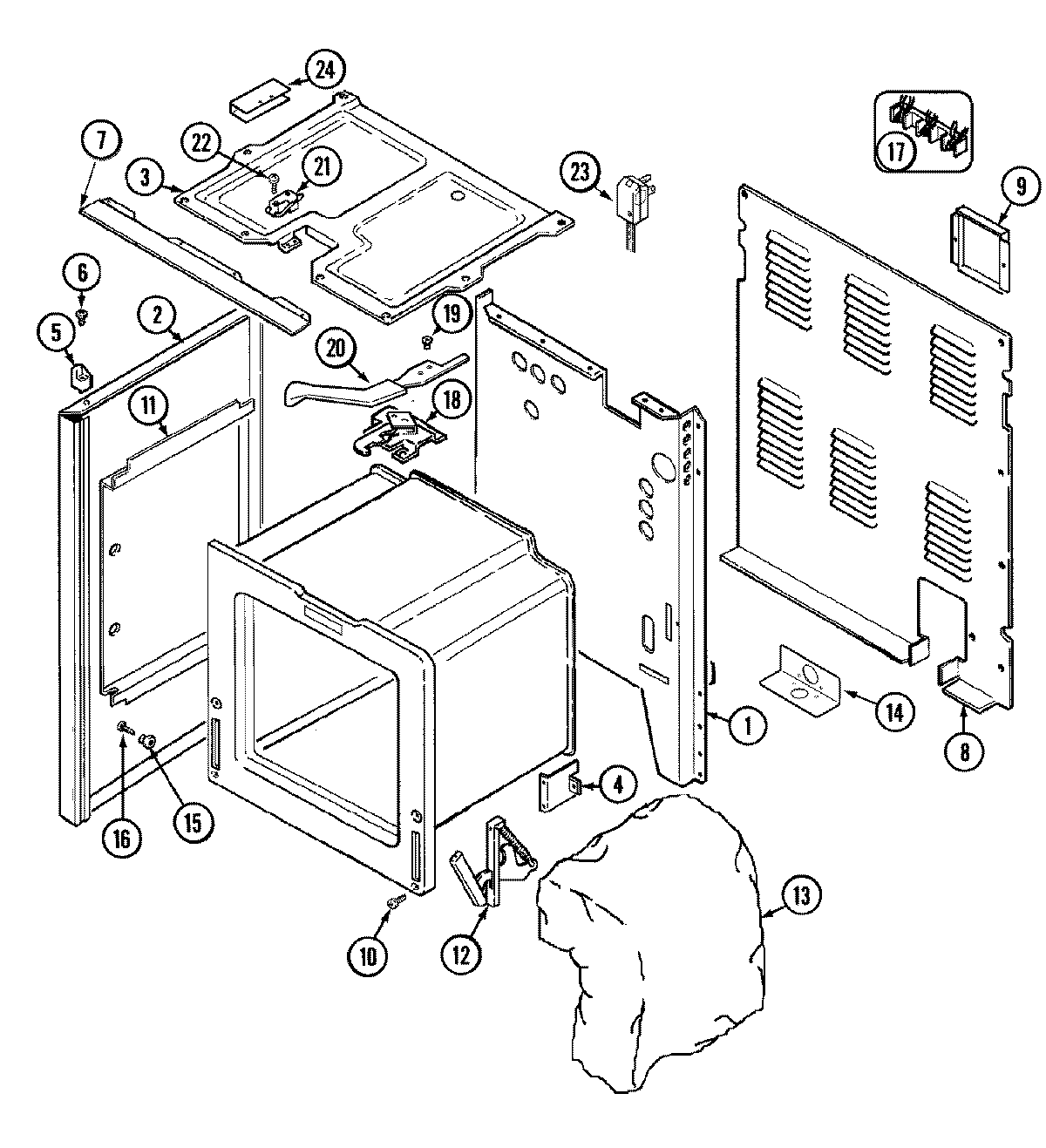

CE38700BCV 01 – BODY

CE38700BCV 01 – BODY

Written by

in

CE38700BCV 01 – BODY

Products

PositionProduct
1MAY 74006322
1MAY 74002334
2TAPE, FOIL (3“ WIDE)
2MAY 74003236
3MAY 74006384
4SUPPORT,OVEN REAR
5SPACER, MAIN TOP (LT)
5SPACER, MAIN TOP (RT)
6MAY 7101P313-60
7MAY 74003384
8MAY 74003241
9MAY 4005F427-51
9SCREW
10SCREW (10-24X5/16-NI)
11MAY 74003422
12WP74011140 Whirlpool Oven Hinge
13MAY 74005771
13WP74010942 Whirlpool Insulation
14W10190166 Whirlpool Service Bracket
15MAY 8004P024-60
16W11693756 Whirlpool Screw Assembly
16MAY 74001449
17MAY 7401P038-60
17WP7103P027-60 Whirlpool Nut
17SCREW (10ABX1.0-ZN)
18MAY 12001944
18MAY 74003139
18MAY 74003380
18MAY 74006501
19SCREW, LEVER
20MAY 74002973
21MAY 74003383
22MAY 7101P330-60
23MAY 7402P050-60
24MAY 74003630
