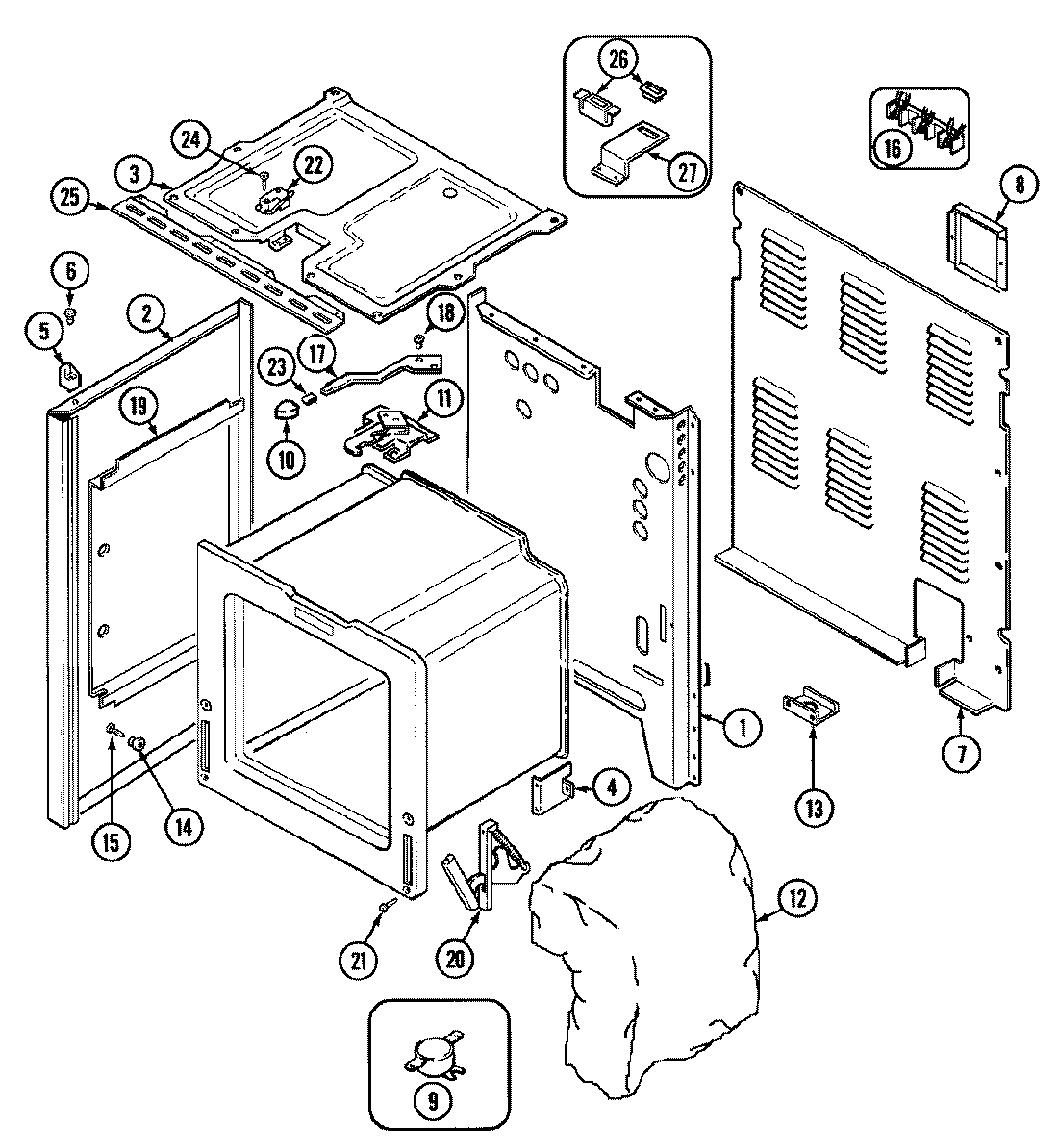

CE3878VVA 01 – BODY

Products

Position	Product
1	MAY 74001772
2	MAY 2618F110-74
3	MAY 74001707
3	MAY 4011F207-19
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	MAY 7101P313-60
7	MAY 4005F455-51
8	MAY 4005F427-51
9	MAY 7403P160-60
10	MAY 74001719
11	MAY 8002P025-60
11	MAY 4804F028-60
11	MAY 7101P280-60
12	MAY 74001800
12	MAY 4804F036-60
13	MAY 3605F174-51
14	MAY 8004P024-60
15	WP400021-1 Whirlpool Screw
16	WPW10245259 Whirlpool Terminal Block
17	MAY 74001725
18	SCREW, LEVER
19	MAY 3804F103-51
20	MAY 7106P056-60
21	SCREW (10-24X5/16-NI)
22	MAY 7403P363-60
22	MAY 74001708
23	MAY 7112P112-60
24	MAY 7101P130-60
25	MAY 3801F305-80
26	MAY 7407P097-60
27	MAY 3801F312-45
27	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
