CE3878VVA 04 – DOOR/DRAWER (VVx SER. PRE. 21) – Aparts

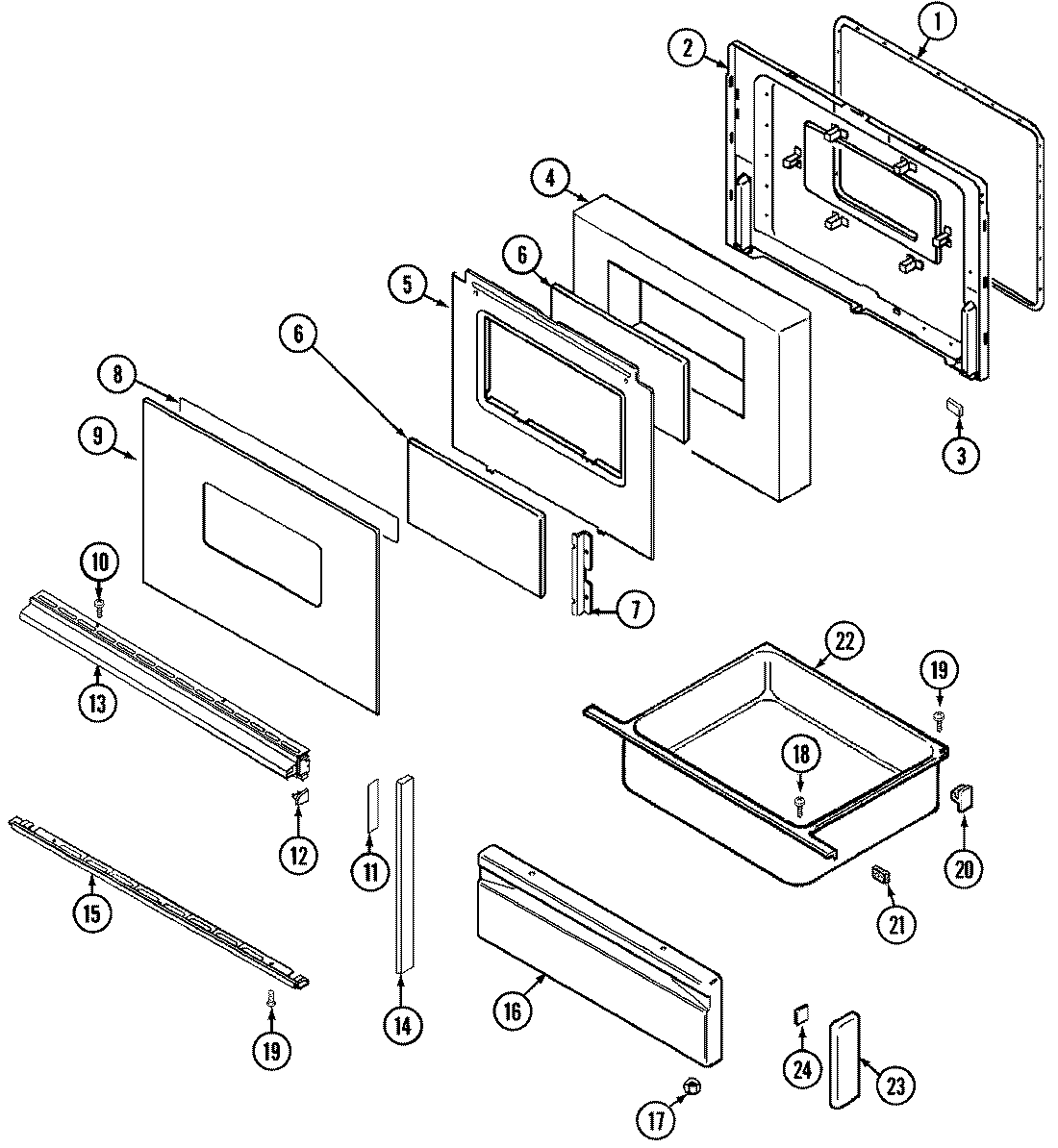

CE3878VVA 04 – DOOR/DRAWER (VVx SER. PRE. 21)

Products

Position	Product
1	GASKT-DOOR OVEN
2	MAY 2402W209-19
3	MAY 8010P085-60
4	MAY 74001842
5	MAY 74001843
6	MAY 74001841
7	MAY 74001844
8	TAPE, FOIL (3`` WIDE)
9	MAY 7902P358-60
10	WP74009541 Whirlpool Screw Assembly
11	MAY 8270P093-60
12	MAY 7744P076-60
12	MAY 7744P075-60
13	MAY 7701P115-60
14	MAY 7744P085-60
15	MAY 7744P104-60
16	MAY 2416F039-64
17	WPW10131078 Whirlpool Nut Assembly
18	WP7101P072-60 Whirlpool Screw
19	MAY 74001280
20	WP8004P026-60 Whirlpool Support
21	MAY 7208P011-60
22	MAY 3405F018-80
23	MAY 7744P113-60
24	TAPE
