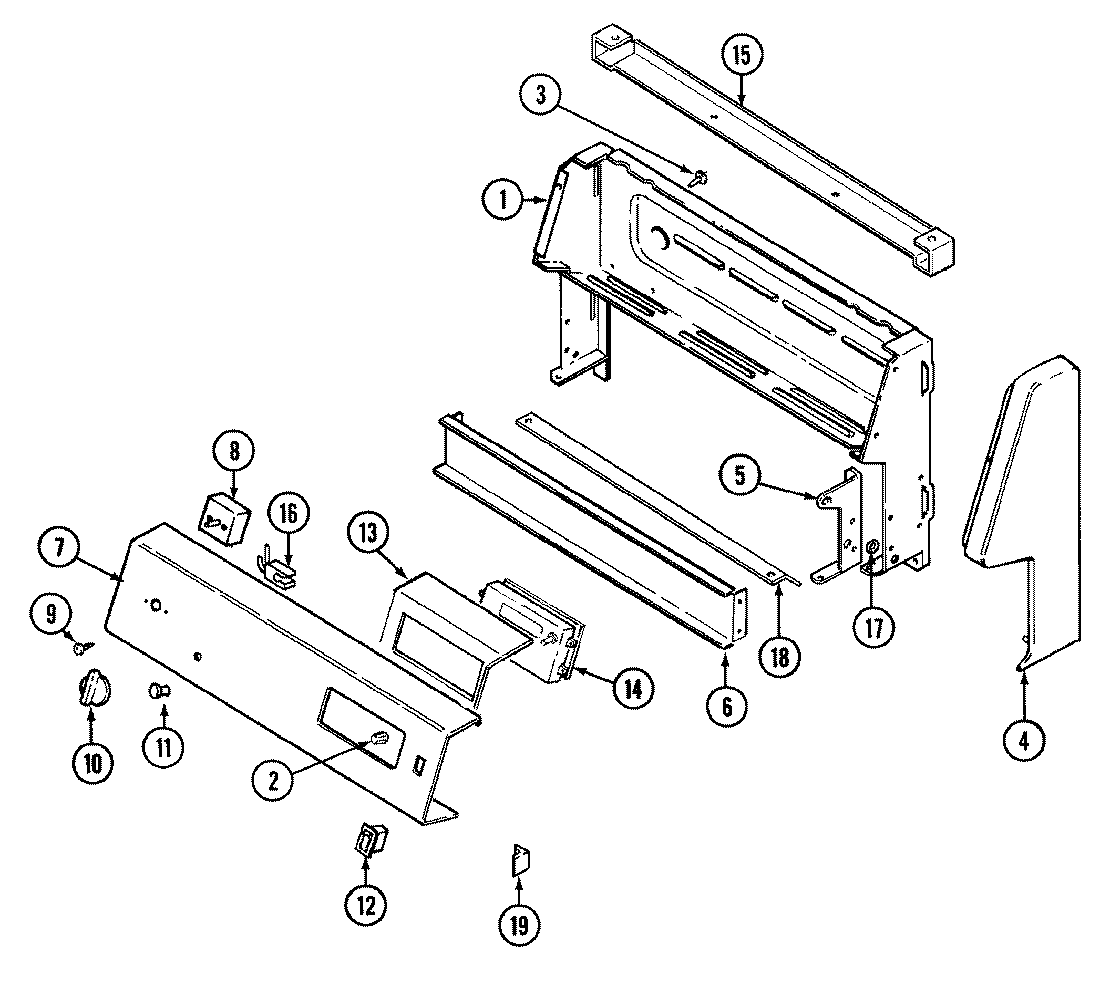

CE3878VVV 02 – CONTROL PANEL

Products

Position	Product
NI	MAY 5125A381-60
NI	MAY 16007454
NI	MAY 5170P205-60
NI	MAY 5195D082-60
NI	MAY 8113P068-60
NI	MAY 5175D052-60
NI	MAY 5175D063-60
NI	MAY 5170D199-60
1	MAY 4001F091-51
2	MAY 7711P493-60
2	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
4	MAY 74002710
4	MAY 74002709
4	MAY 7726P086-60
4	MAY 7726P085-60
5	MAY 3807F453-51
5	MAY 3807F454-51
6	MAY 3802F088-51
7	MAY 7101P348-60
7	MAY 7703P696-60
8	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
8	WP7403P239-60 Whirlpool Oven Switch
9	SCREW
10	MAY 7731P081-60
11	W11690131 Whirlpool Light Lens
12	MAY 7403P200-60
13	WPY706189 Whirlpool Stove Screw
13	MAY 74001703
14	MAY 7601P237-60
14	MAY 74002730
15	MAY 4001F064-51
16	W10852510 Whirlpool Indicator Light
17	WP3195558 Whirlpool Nut
18	MAY 3604F201-80
18	SCREW (8BX3/8-NI)
19	MAY 8010P083-60
19	WP59002061 Whirlpool Microwave Screw
