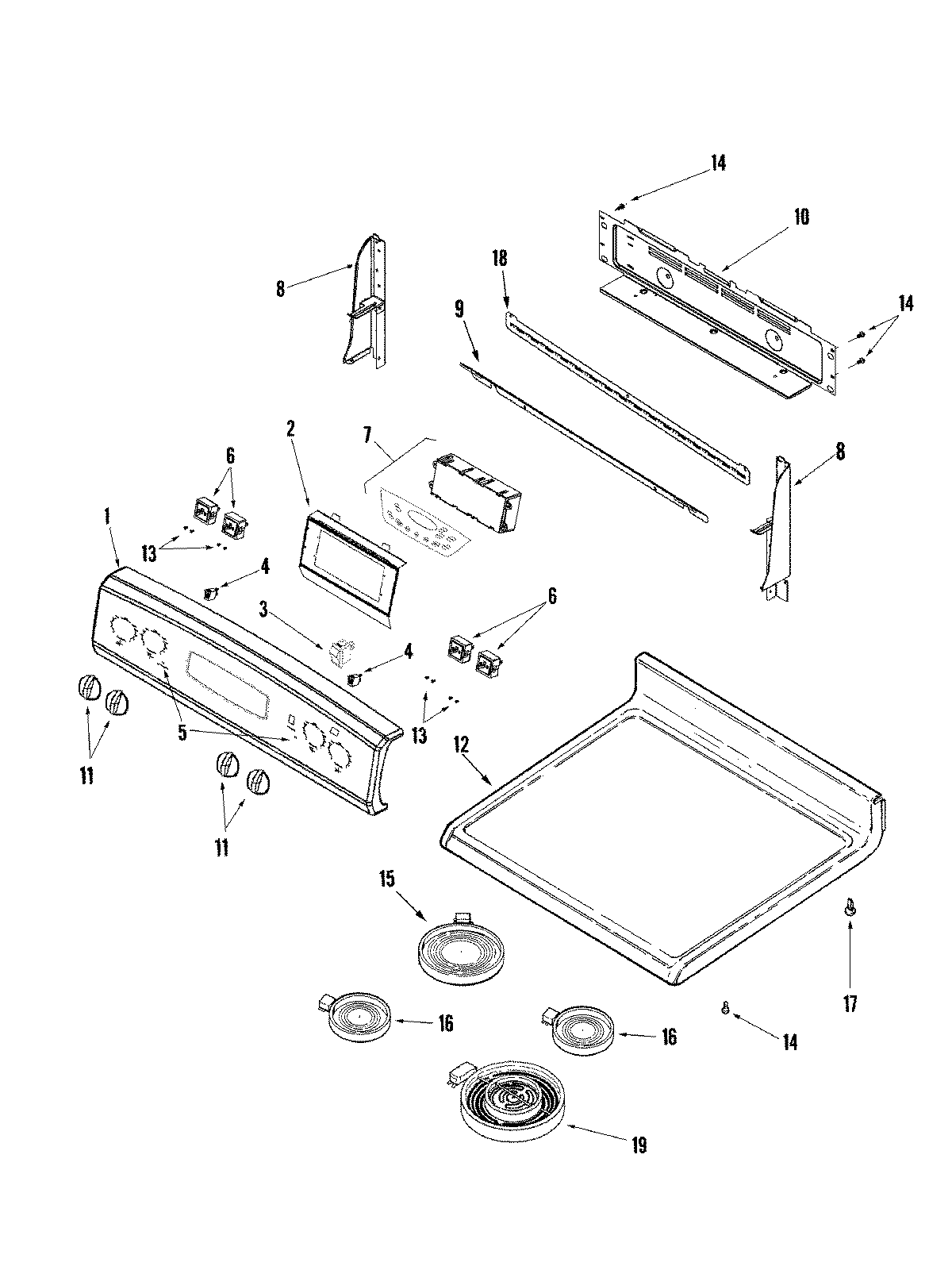

CE38800AAS 02 – CONTROL PANEL/TOP ASSEMBLY

CE38800AAS 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

CE38800AAS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010422
2MAY 74008716
3SWITCH, ROCKER (BLK)
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP7403P239-60 Whirlpool Oven Switch
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
75701M760-60 Whirlpool Electronic Control Board
8MAY 74010202
8MAY 74010201
8WP98008545 Whirlpool Screw
9MAY 74009701
10MAY 74009943
11MAY 74010332
12MAY 74010369
13SCREW
14SCREW
15W10823715 Whirlpool Radiant Surface Element
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17W11189172 Whirlpool Glide Drawer
18MAY 74009708
18WP90767 Whirlpool Screw
19W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
