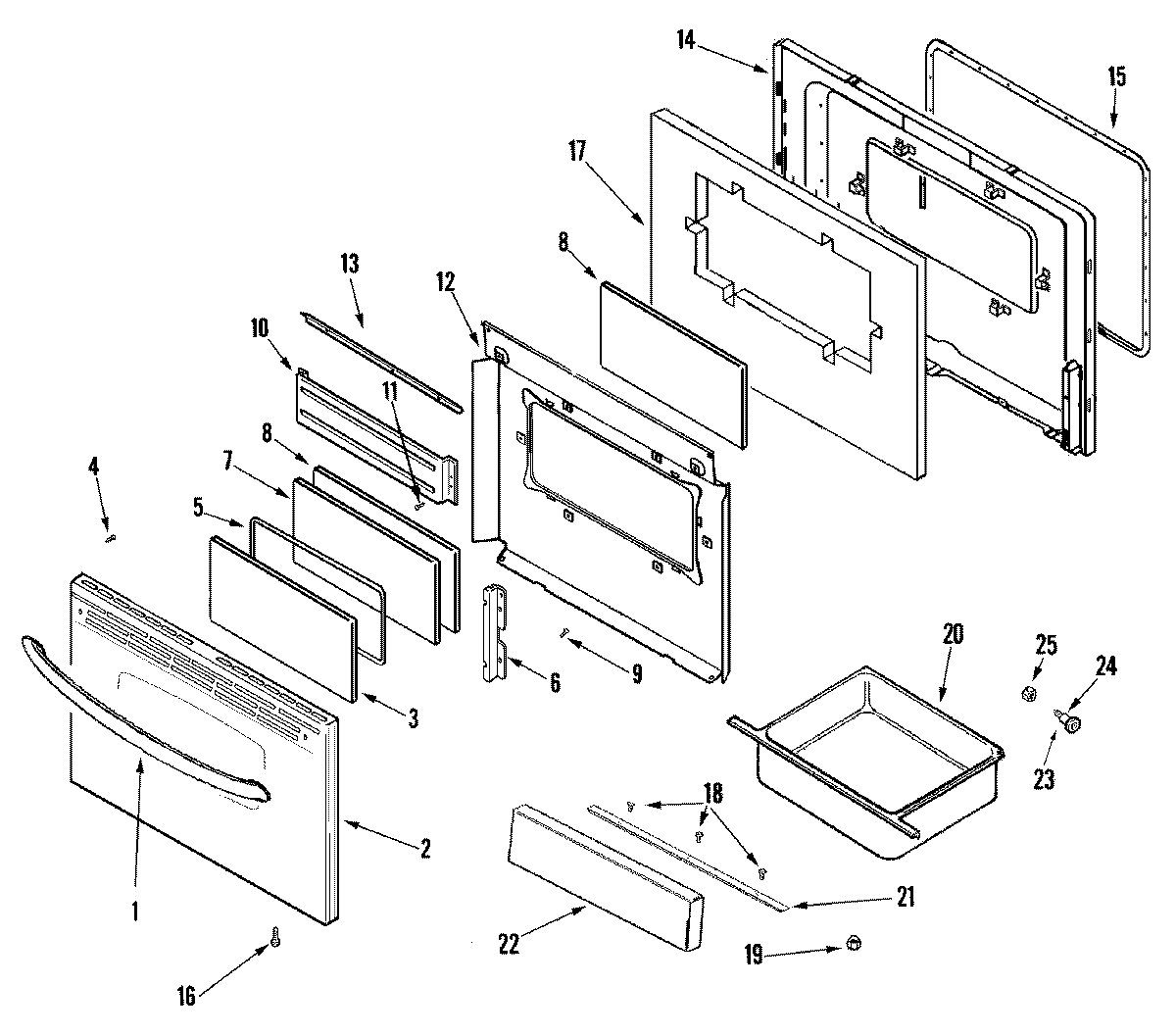

CE38800AAS 03 – DOOR/DRAWER (STL)

CE38800AAS 03 – DOOR/DRAWER (STL)

Written by

in

CE38800AAS 03 – DOOR/DRAWER (STL)

Products

PositionProduct
1MAY 74010338
2MAY 74010298
2MAY 74010355
3MAY 74001072
4WP74006515 Whirlpool Washer Screw
4NUT, SNAP (ROUND-BLK)
5MAY 7201P017-60
6MAY 74003048
7MAY 74002002
8GLASS, INNER
10MAY 74005458
12BAFFLE, OVEN DOOR
13MAY 74004902
14LINING, OVEN DOOR
15GASKT-DOOR OVEN
16SCREW
17MAY 74001842
19WPW10131078 Whirlpool Nut Assembly
20MAY 74008337
21HANDLE, DRAWER (STL)
22MAY 74009842
23SHAFT, STORAGE DRAWER ROLLER
24WP488130 Whirlpool Air Conditioner Nut
25WP74004078 Whirlpool Door Roller
