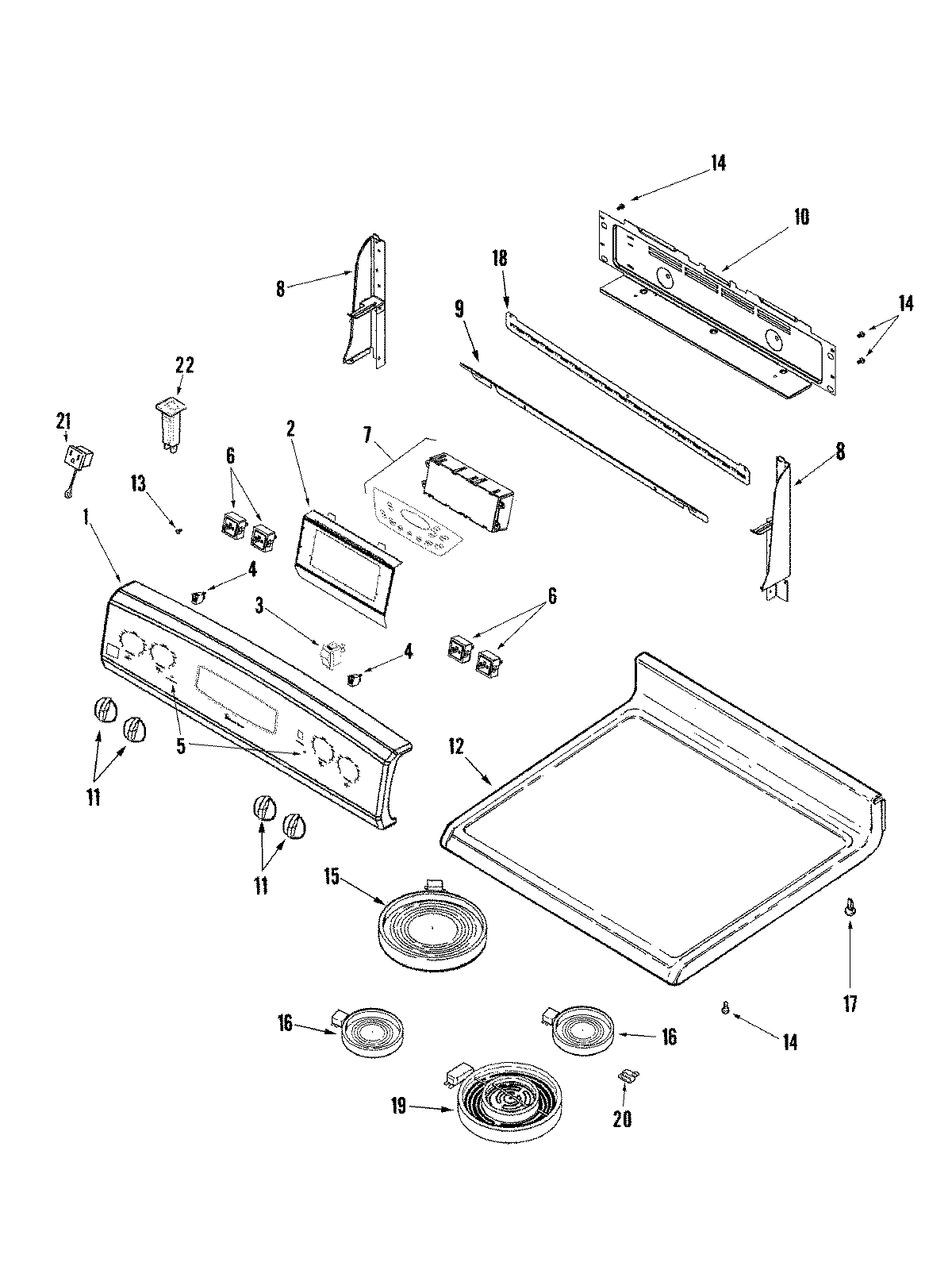

CE38800ACS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74011819
2	MAY 74008716
3	SWITCH, ROCKER (BLK)
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6	WP7403P239-60 Whirlpool Oven Switch
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	5701M760-60 Whirlpool Electronic Control Board
8	MAY 74010202
8	MAY 74010201
8	WP98008544 Whirlpool Screw Assembly
9	MAY 74009701
10	MAY 74009943
11	MAY 74010332
12	MAY 74010369
13	SCREW
14	SCREW
15	W10823715 Whirlpool Radiant Surface Element
16	W10823711 Whirlpool Surface Element Left Front and Right Rear
17	W11189172 Whirlpool Glide Drawer
18	WP90767 Whirlpool Screw
18	MAY 74009708
19	W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
20	8004P093-60 Whirlpool Support C
21	MAY 71003068
22	MAY 71003070
