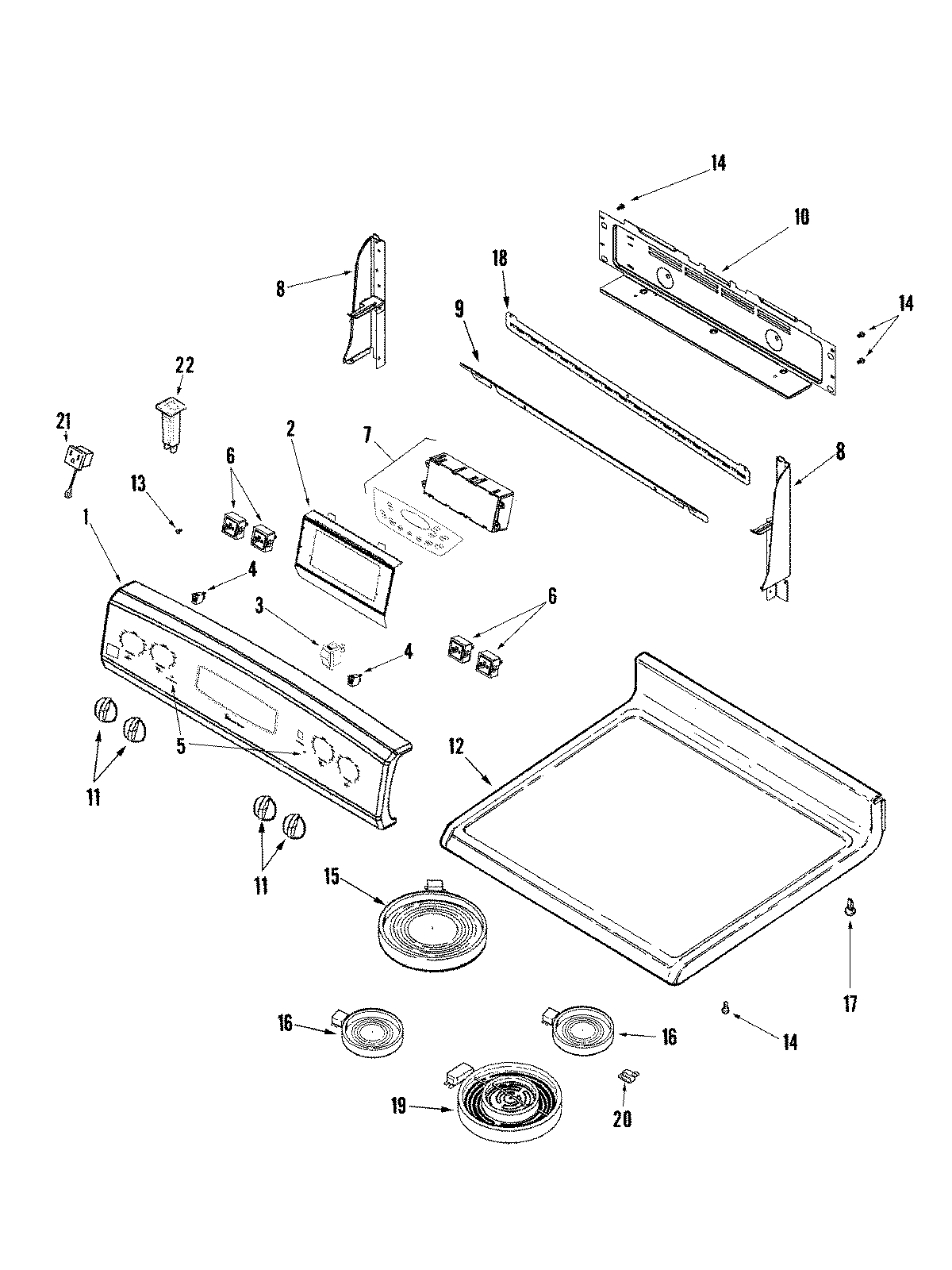

CE38800ACV 02 – CONTROL PANEL/TOP ASSEMBLY

CE38800ACV 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

CE38800ACV 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010384
2MAY 74008716
374008717 Whirlpool White Rocker Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
75701M760-60 Whirlpool Electronic Control Board
8MAY 74009672
8WP98008544 Whirlpool Screw Assembly
8MAY 74009669
9MAY 74009701
10MAY 74009943
11WP74010331 Whirlpool White Knob
12MAY 74010368
13SCREW
14SCREW
15W10823715 Whirlpool Radiant Surface Element
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17W11189172 Whirlpool Glide Drawer
18WP90767 Whirlpool Screw
18MAY 74009708
19W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
208004P093-60 Whirlpool Support C
21MAY 71003069
22MAY 74009322
