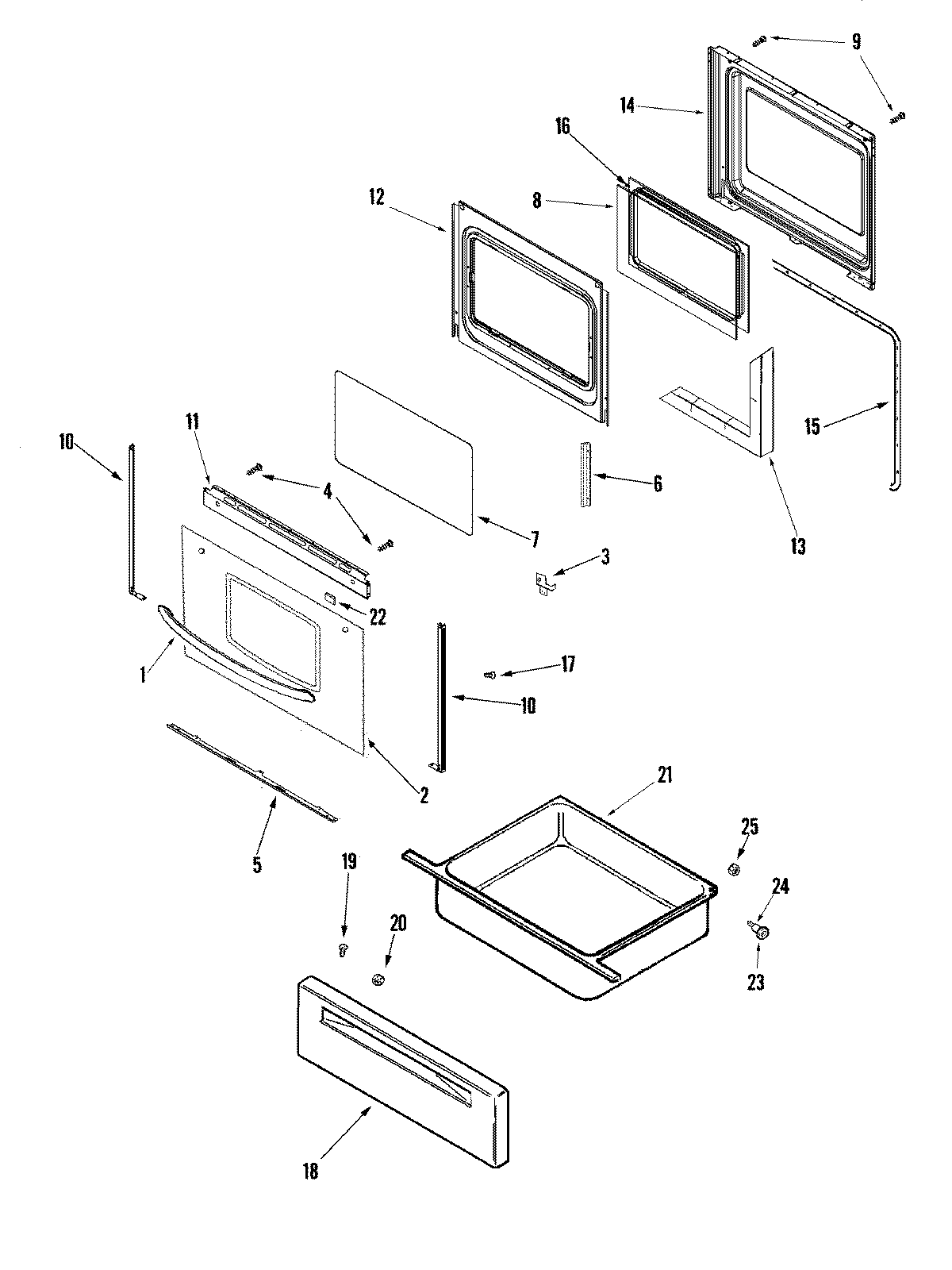

CE38800ACV 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74010337
2	MAY 74010363
3	3801F832-45 Whirlpool Bracket
3	3801F831-45 Whirlpool Bracket Assembly
4	WP74006515 Whirlpool Washer Screw
5	WP3807F708-71 Whirlpool Support
6	MAY 74003650
7	GLASS, DOOR
8	74003645 Whirlpool Range Oven Door Inner Glass
9	SCREW
10	WP74004224 Whirlpool Tape
10	WP3608F116-71 Whirlpool Door Trim
10	WP3608F117-71 Whirlpool Door Trim
11	MAY 74010238
12	MAY 7101P356-60
12	MAY 74009502
13	INSULATION, OVEN DOOR
14	MAY 74003642
15	GASKT-DOOR OVEN
16	FRAME, GLASS
17	WP98008544 Whirlpool Screw Assembly
18	MAY 74003399
20	WPW10131078 Whirlpool Nut Assembly
21	MAY 74008337
22	WP74005546 Whirlpool RU Spacer
23	WP74004078 Whirlpool Door Roller
24	SHAFT, STORAGE DRAWER ROLLER
25	WP488130 Whirlpool Air Conditioner Nut
