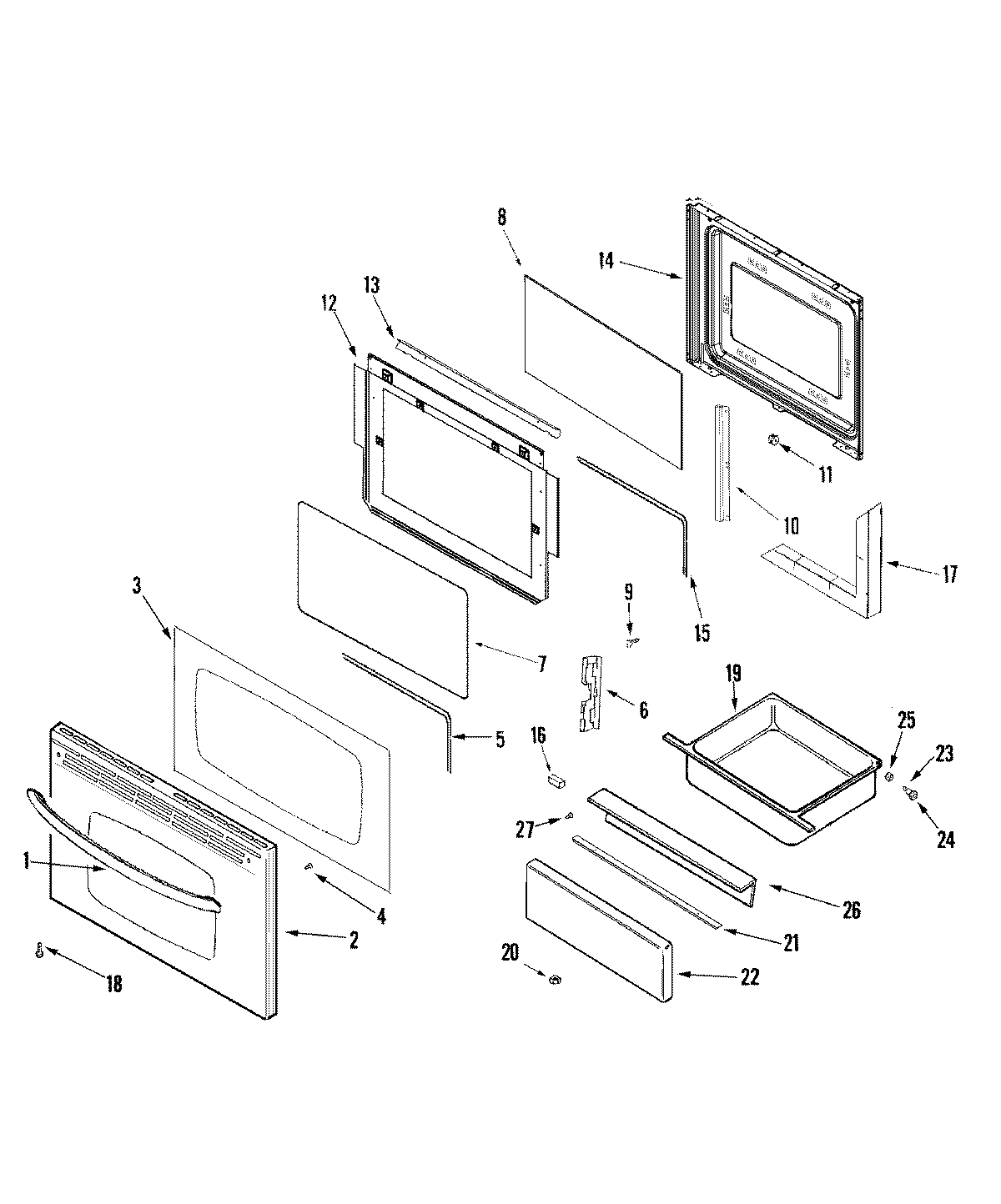

CE38800BAS 04 – DOOR/DRAWER (STL) (SERIES 12)

CE38800BAS 04 – DOOR/DRAWER (STL) (SERIES 12)

Written by

in

CE38800BAS 04 – DOOR/DRAWER (STL) (SERIES 12)

Products

PositionProduct
1MAY 74010338
2MAY 74010233
2MAY 74011478
3MAY 74010042
4WP74006515 Whirlpool Washer Screw
5WP74009029 Whirlpool Door Gasket
6MAY 74010041
7GLASS, DOOR (INNER/COATED)
874003645 Whirlpool Range Oven Door Inner Glass
9SCREW
103801F886-51 Whirlpool Mounting Bracket
123601F373-51 Whirlpool Baffle
13MAY 74010040
14LINING, DOOR
15GASKT-DOOR OVEN
16WP74005546 Whirlpool RU Spacer
17INSULATION, OVEN DOOR
19MAY 74008337
20WPW10131078 Whirlpool Nut Assembly
21HANDLE, DRAWER (STL)
22MAY 74009842
23SHAFT, STORAGE DRAWER ROLLER
24WP74004078 Whirlpool Door Roller
25WP488130 Whirlpool Air Conditioner Nut
26LINING, DRAWER PANEL
