CE38800BAS 05 – OVEN/BASE

CE38800BAS 05 – OVEN/BASE

Written by

in

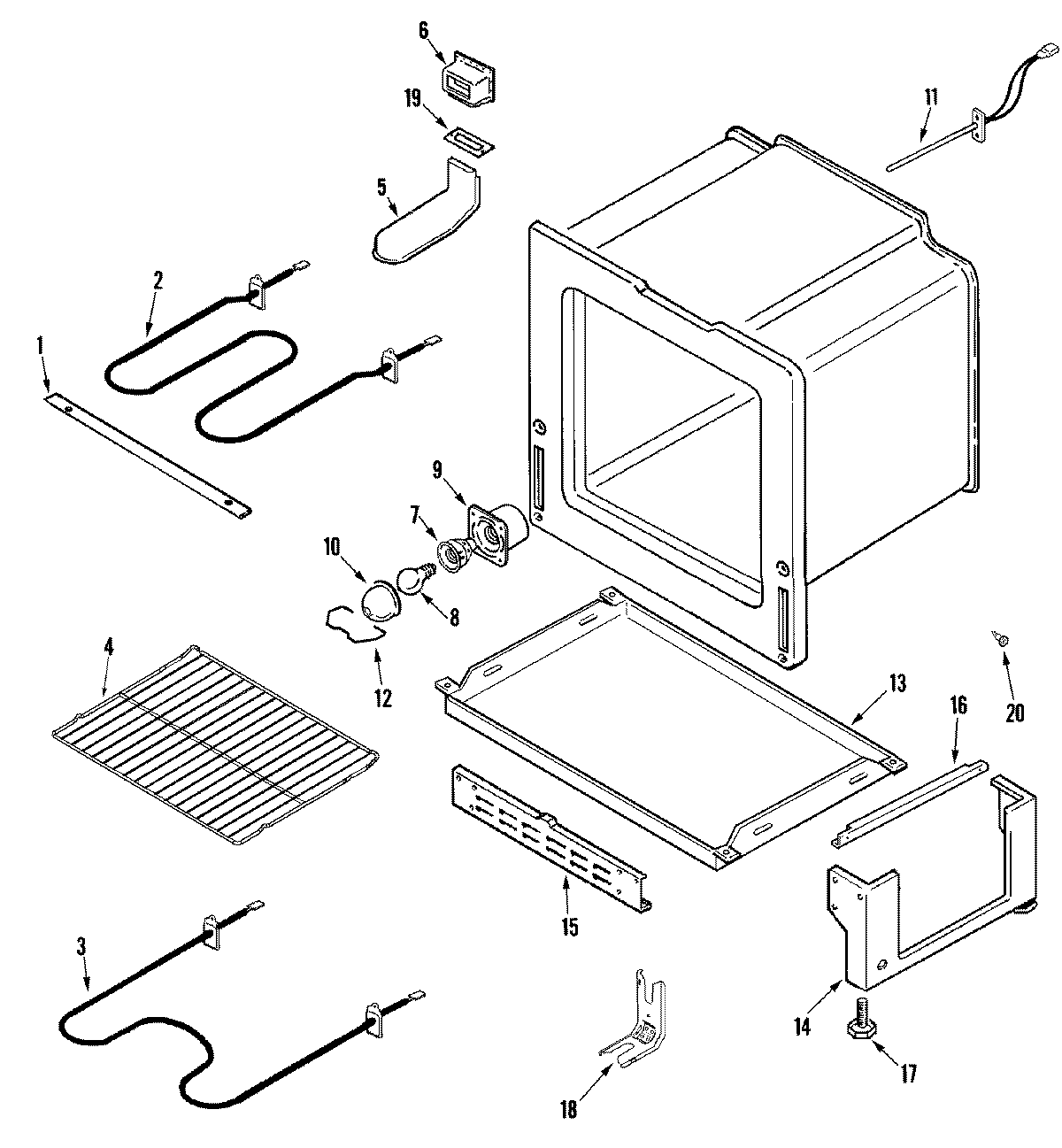

CE38800BAS 05 – OVEN/BASE

Products

PositionProduct
1SUPPORT, BROIL ELEMENT
2WPW10310249 Whirlpool Broil Element
2WP400021-1 Whirlpool Screw
3WP74010750 Whirlpool Oven Bake Element
4WPW10282492 Whirlpool Oven Rack
5MAY 74003394
5SCREEN, SMOKE ELIMINATOR
6SCREW (8BX3/8-NI)
6MAY 74004534
7MAY 74003388
8RANGE ONLY 40W 120V APPL BULB
9MAY 74003387
10MAY 74003389
1112001656 Whirlpool Range Oven Temperature Sensor
12MAY 74003391
13RETAINER, INSULATION (BOTTOM)
14MAY 74006325
15MAY 4020F001-80
16RUNNER, DRAWER
16SCREW
17W11665456 Whirlpool Range Level Foot
18WP3801F656-51 Whirlpool Range Anti-Tip Bracket
18WP7101P485-60 Whirlpool Anchor Tip
19MAY 74003285
20WP74004078 Whirlpool Door Roller
2074005230 Whirlpool Oven Lock Nut (8-32)
20SHAFT, STORAGE DRAWER ROLLER
