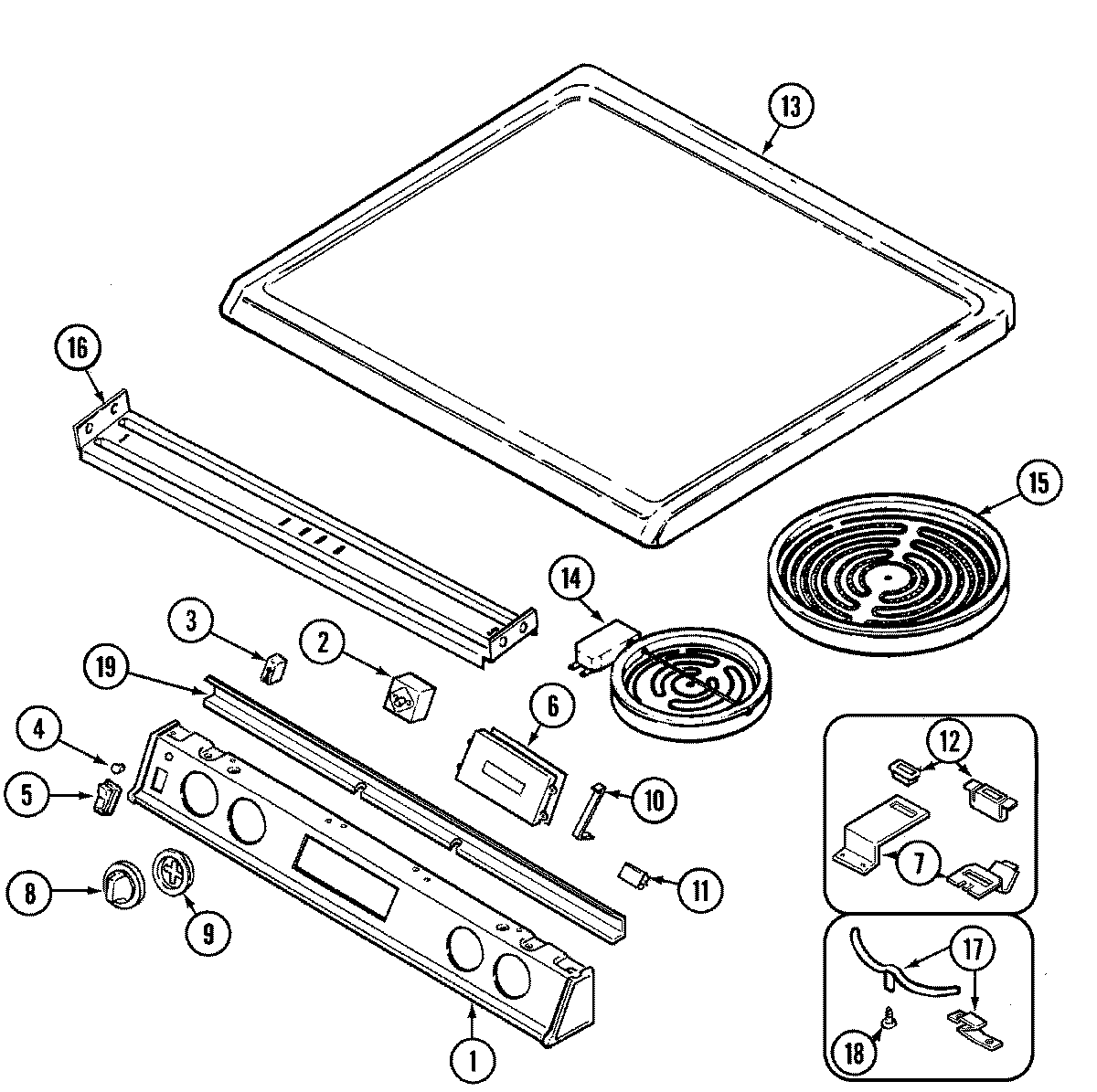

CE6898VVA 05 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 16007454
NI	MAY 8113P068-60
NI	MAY 5170P228-60
NI	MAY 5195D097-60
NI	MAY 16002080
1	MAY 74003015
1	MAY 74002234
2	SCREW
2	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
2	WP7403P239-60 Whirlpool Oven Switch
3	W10852510 Whirlpool Indicator Light
4	W11690131 Whirlpool Light Lens
5	7403P067-60 Whirlpool Light Switch
6	MAY 7601P278-60
6	MAY 74002271
6	WP7711P492-60 Whirlpool Clock Knob
7	MAY 74002978
7	MAY 3801F312-45
8	MAY 7731P082-60
9	MAY 7740P020-60
10	MAY 7101P346-60
10	MAY 3801F349-51
11	MAY 7112P087-60
12	MAY 7407P098-60
12	MAY 74003043
13	MAY 74002236
13	WA906B Whirlpool Cooktop Glass Scraper
13	MAY 8308P002-60
13	MAY 74003030
14	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
14	MAY Y04000064
15	MAY Y04000063
15	W10823707 Whirlpool Range Radiant Surface Element 8"
16	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16	MAY 3807F390-45
17	MAY 74002976
17	MAY 8004P015-60
18	WP59002061 Whirlpool Microwave Screw
18	SCREW
19	MAY 74002647
