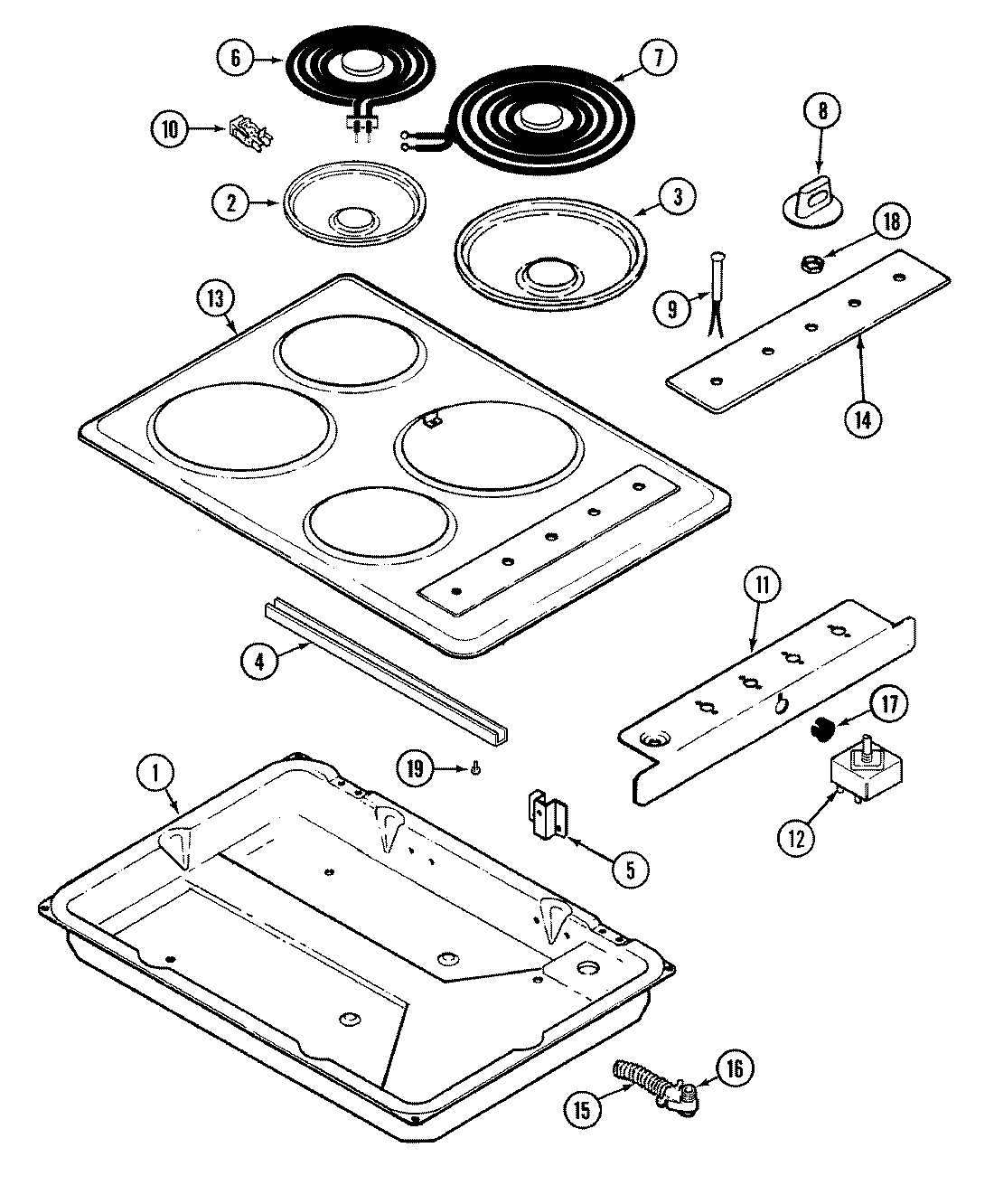

CE8610PW 01 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 8112P102-60
NI	MAY 16002080
NI	SCREW (10ABX1.0-ZN)
1	BOTTOM, BURNER BOX
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
2	MAY 7725P048-60
3	DRIP BOWL 8" W/HOLE CHROME
3	MAY 7725P047-60
4	BRACE, TOP
5	BRACKET, MAIN TOP SUPPORT
6	MAY 7406P037-60
7	MAY 7406P039-60
8	WP7737P026-60 Whirlpool Knob Switch
9	MAY 74001480
9	MAY 7407P062-60
10	MAY 1430306K
11	MAY 3604F133-80
12	W10900107 Whirlpool Oven Surface Element Switch
13	MAY 74001709
14	MAY 7719P060-60
14	MAY 7720P147-60
14	MAY 7720P184-60
15	MAY 3414F035-44
15	MAY 74001216
15	MAY 3801F072-45
16	MAY 7417P004-60
16	MAY 8018P001-60
17	GROMMET
18	MAY 7103P021-60
19	MAY 7118P004-60
