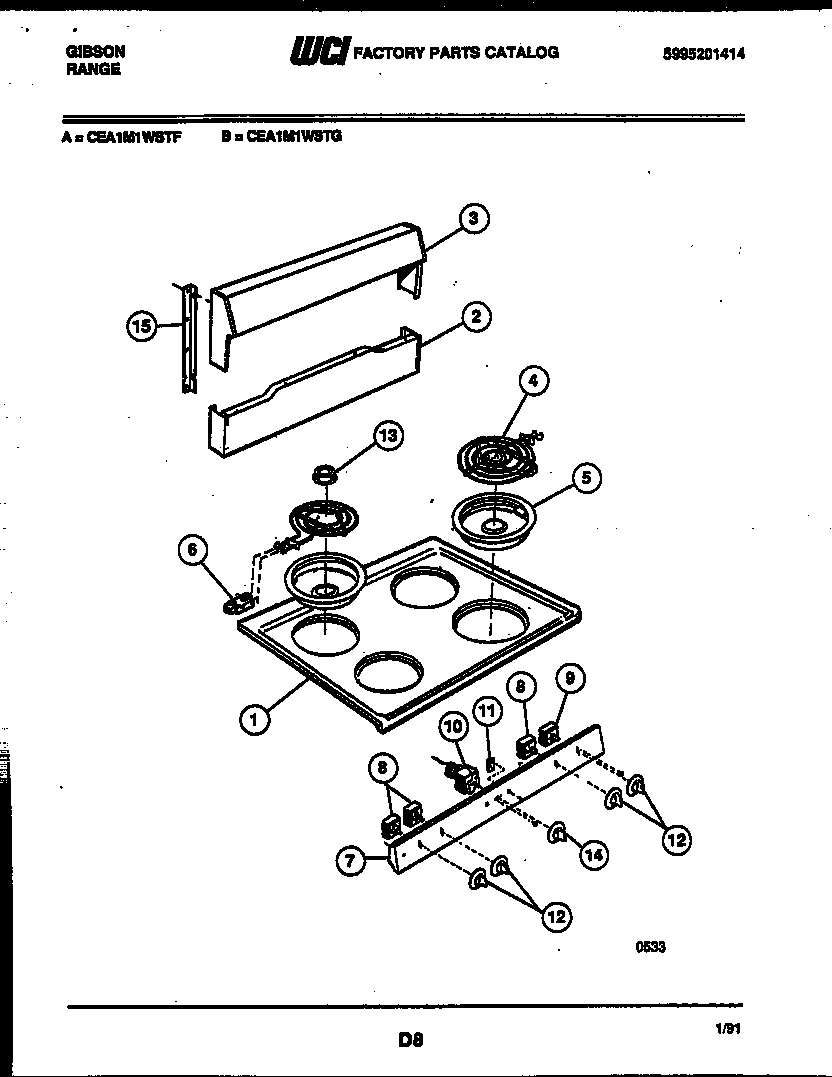

CEA1M1WSTF 02 – BACKGUARD AND COOKTOP PARTS

CEA1M1WSTF 02 – BACKGUARD AND COOKTOP PARTS

Written by

in

CEA1M1WSTF 02 – BACKGUARD AND COOKTOP PARTS

Products

PositionProduct
*42127WCI 3015721
*42127WCI 5300009126
1MAIN TOP-WHITE
2BACKGUARD-PNL, LWR
3WCI 3200855
4A318372210 Frigidaire Oven Range 6" 1250W Surface Element
4316442300 Frigidaire Oven 2100W Coil Element 8
5316048413 Frigidaire Oven Range Chrome 8" Drip Bow
5A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
65303935058 Frigidaire Oven Burner Receptacle Kit
7SWITCH-PANEL WHITE
95303935086 Frigidaire Oven Top Burner Switch Kit
10WCI 5303015184
11INDICATOR LIGHT
12KNOB-SURFACE (4)
13MEDALLION, STAINLESS STEEL, SURF ELEM
14THERMOSTAT KNOB
15BRACE (2)
