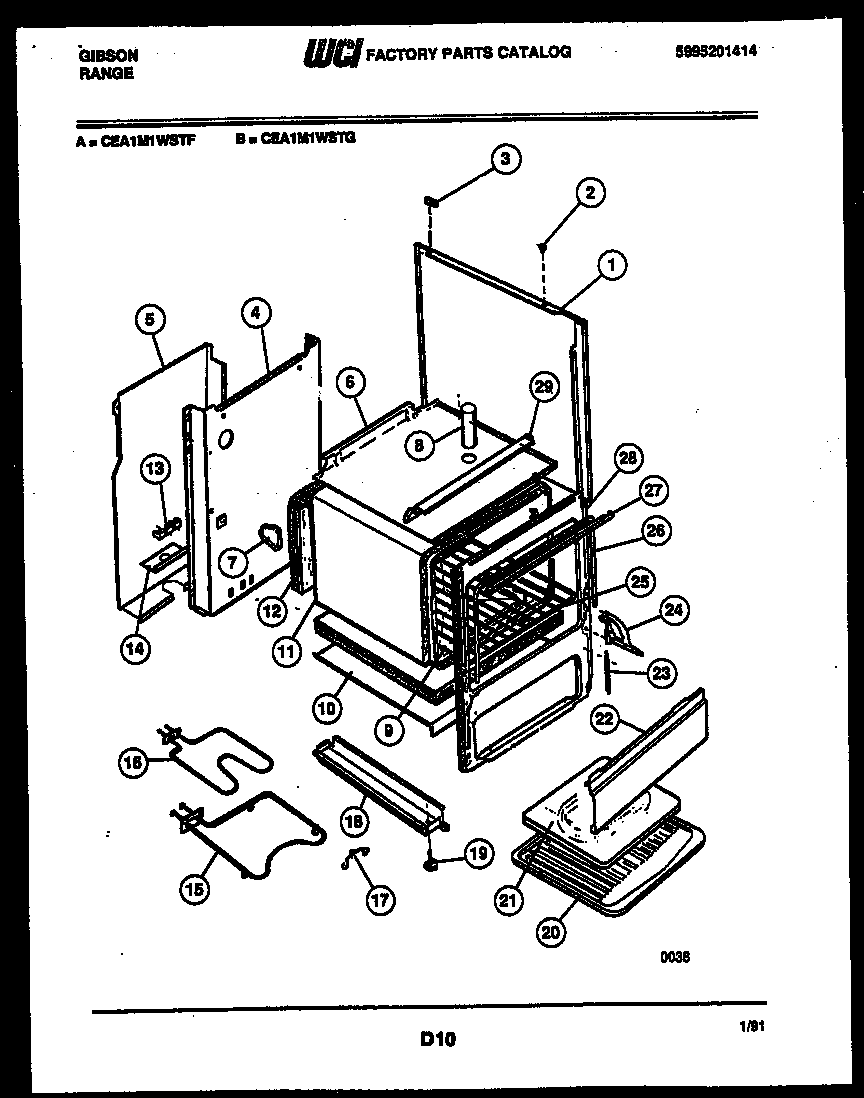

CEA1M1WSTG 03 – BODY PARTS

Products

Position	Product
*42135	WCI 19100210113
*42134	ANTI-TIP KIT
*42135	WCI 5303210891
*42135	WCI 5303210892
1	BODYSIDE PANEL-WHITE (2)
2	GROMMET
3	GROMMET-MAINTOP
4	BACK MAIN
5	COVER-WIRE
6	BURNER BOX-BTM
7	SUPPORT-REAR OVN (2)
8	TUBE-VENT
9C	WCI 3017720
9D	WCI 3017710
9B	WCI 3017708
9A	LINER-LEFTSIDE
9	LINER-RIGHT SIDE
10	PAN BOTTOM
11	INSUL WRAP
12	INSUL BACK
13	5304409888 Frigidaire Oven Terminal Block with Hardware
14	SUPPORT-CONDUIT
15	WCI 5303051076
16	WCI 3051071
17	SUPPORT-BROIL ELMNT
18	RAIL-BASE LH
18A	RAIL BASE RH
20	WCI 5303016973
21	WCI 5303017712
22	PANEL-FALSE, WHITE
23	SPRING-OVEN DOOR
24	HINGE ASSY-RH
24A	318348801 Frigidaire Oven Left Side Door Hinge
25	WCI 3016158
26	SEAL OVEN DOOR
27	SUPPORT-CONTROL PNL
28	FRAME-FRONT
29	SHIELD
