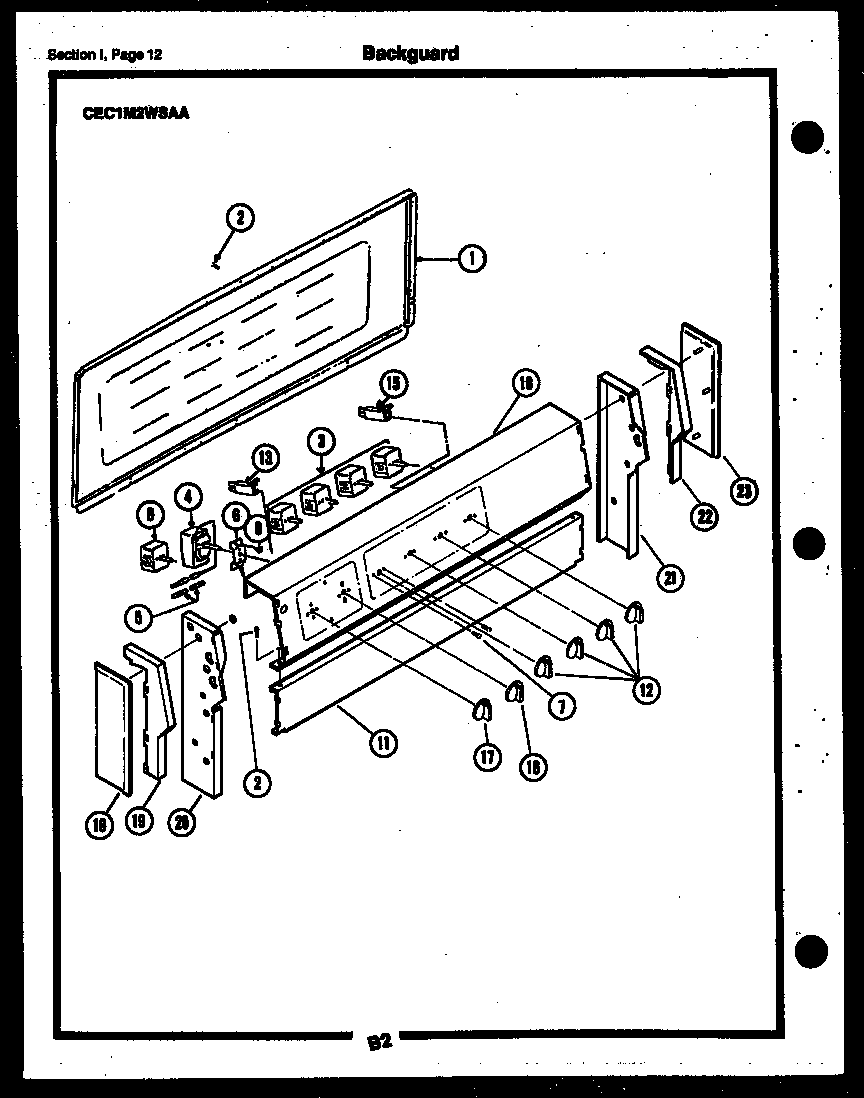

CEA1M2WSTA 09 – BACKGUARD

Products

Position	Product
1	COVER, WIRE
2	08002868 Frigidaire 0 Screw Assembly
3	5303935086 Frigidaire Oven Top Burner Switch Kit
4	THERMOSTAT
5	WCI K1301788
6	BRACKET
8	SWITCH SELEC.
9	SCREW - THERMO BRACKET 6-32 X 3/16 (2)
10	WCI K5138801
11	PANEL BACKSPLASH, WHITE
12	KNOB-SURFACE UNIT (4)
13	WCI K5139001
15	SIGNAL LIGHT - OVEN
16	WCI K5159401
17	KNOB - SELECTOR SWITCH
18	WCI K5128002
19	WCI K5128102
20	WCI K5127702
21	SUPPORT-BACKGRD RH
22	WCI K5128101
23	NUT (3)
23	WCI K5128001
