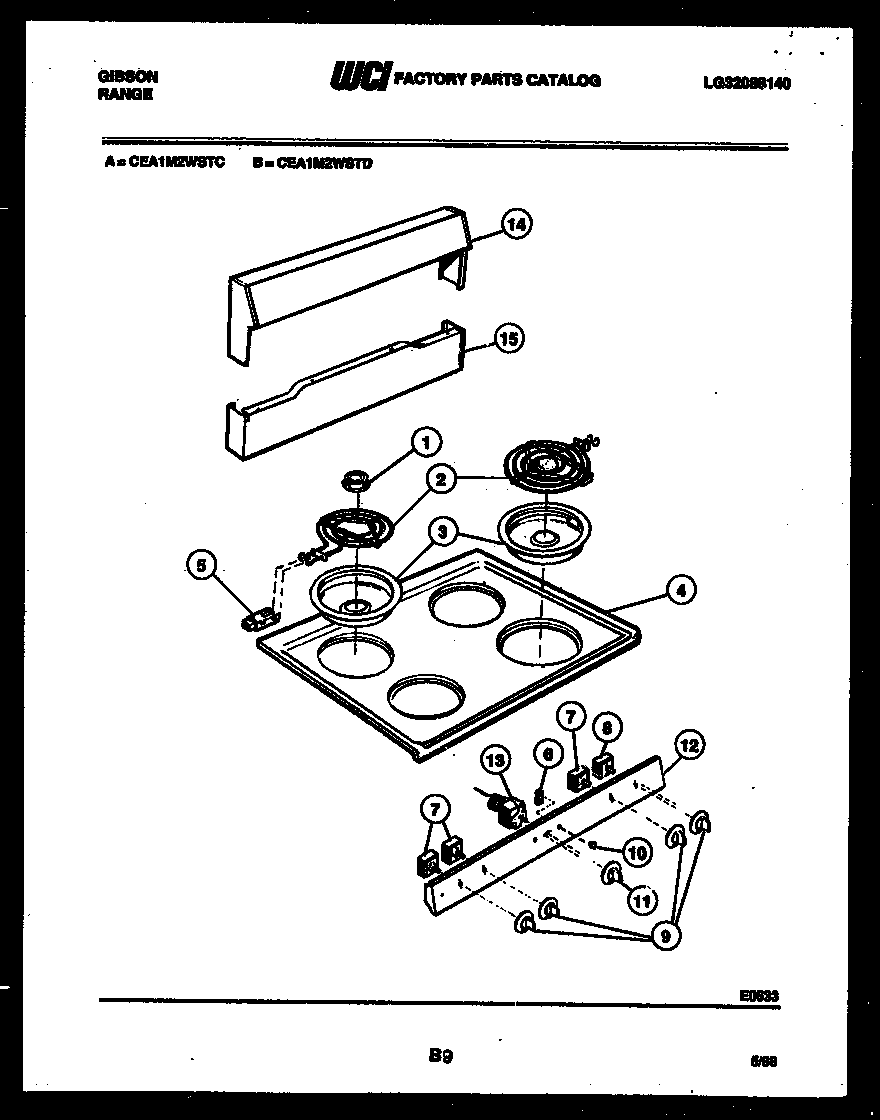

CEA1M2WSTD 02 – BACKGUARD AND COOKTOP PARTS

CEA1M2WSTD 02 – BACKGUARD AND COOKTOP PARTS

Written by

in

CEA1M2WSTD 02 – BACKGUARD AND COOKTOP PARTS

Products

PositionProduct
1WCI 3017707
2318372210 Frigidaire Oven Range 6" 1250W Surface Element
2A316442300 Frigidaire Oven 2100W Coil Element 8
3316048413 Frigidaire Oven Range Chrome 8" Drip Bow
3A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
4WCI A76096000
55303935058 Frigidaire Oven Burner Receptacle Kit
6PILOT LIGHT (2)
85303935086 Frigidaire Oven Top Burner Switch Kit
9SURFACE KNOB (4)
10WCI AP234001
11WCI AP227503
12SWITCH-PANEL WHITE
13WCI 3015723
14BACKGUARD-PNL WHITE
15BACKGUARD-PNL, LWR
