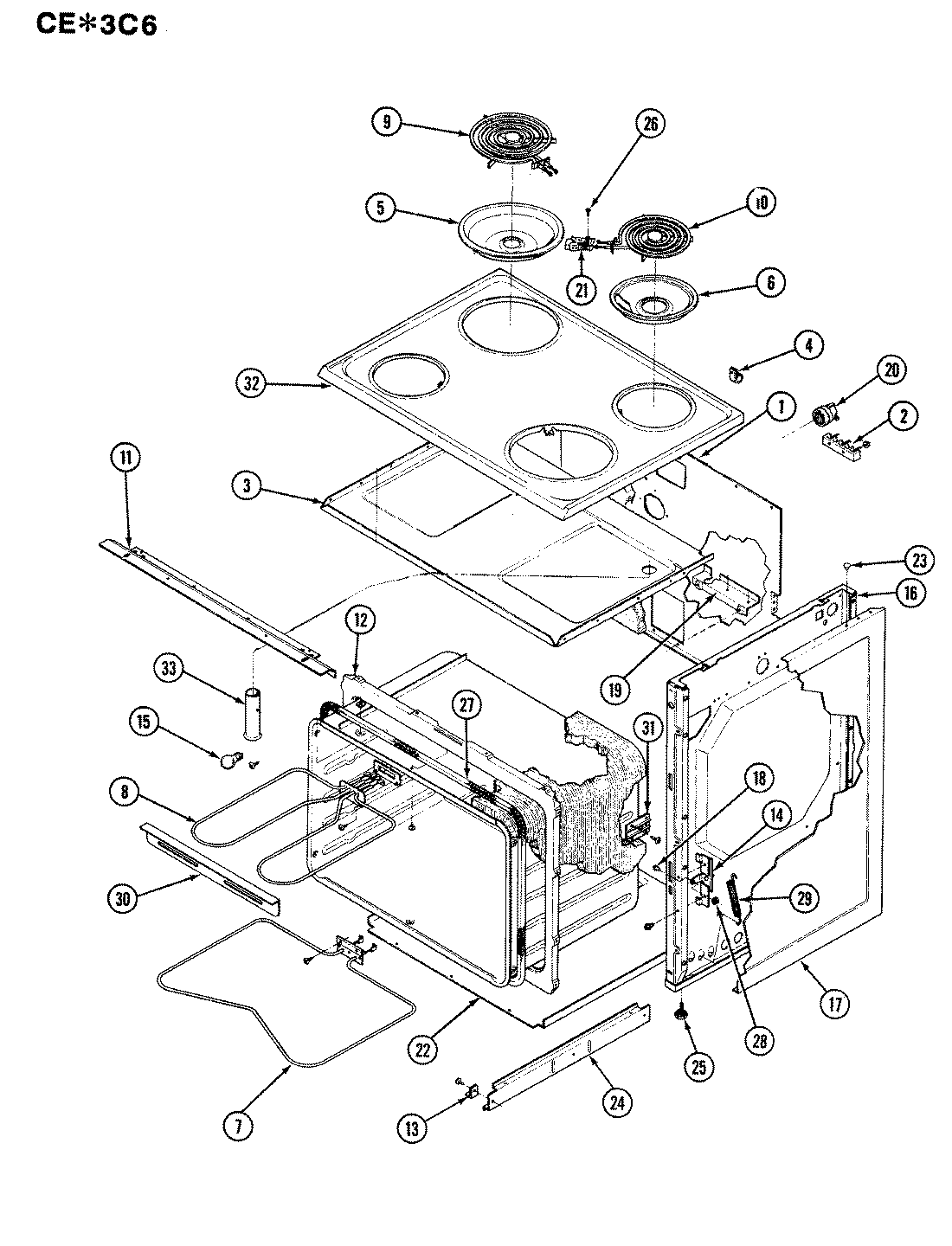

| NI | MAY 8110P087-60 |
| 1 | MAY 4002F092-80 |
| 2 | MAY 7401P002-60 |
| 3 | MAY 3801F101-80 |
| 3 | MAY 4011F128-23 |
| 3 | MAY 3802F029-80 |
| 3 | MAY 3802F003-80 |
| 4 | MAY 7111P002-60 |
| 4 | WP7112P004-60 Whirlpool Thermal Clip |
| 4 | MAY 4005F013-80 |
| 4 | MAY 7112P030-60 |
| 5 | MAY 7725P001-60 |
| 5 | DRIP BOWL 8" W/HOLE CHROME |
| 6 | MAY 7725P002-60 |
| 6 | WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole |
| 7 | MAY 7406P010-60 |
| 8 | MAY 7406P003-60 |
| 9 | MAY 7406P039-60 |
| 10 | MAY 7406P037-60 |
| 11 | MAY 4012F007-80 |
| 12 | MAY 2201F060-23 |
| 13 | MAY 8016P004-60 |
| 13 | MAY 8016P005-60 |
| 13 | MAY 7501P002-60 |
| 14 | MAY 3418F029-34 |
| 14 | MAY 3418F030-34 |
| 14 | MAY 4001F016-23 |
| 14 | MAY 3413F002-23 |
| 15 | MAY 7407P026-60 |
| 16 | MAY 4009W029-80 |
| 16 | MAY 3401F004-23 |
| 17 | MAY 2618F052-74 |
| 17 | MAY 2618F052-71 |
| 17 | MAY 2618F052-76 |
| 19 | MAY 3605F148-80 |
| 19 | PLATE, CONDUIT REINFORCEMENT |
| 19 | MAY 7801P030-60 |
| 19 | MAY 3605F031-80 |
| 20 | MAY 7408P002-60 |
| 21 | MAY 7401P014-60 |
| 22 | MAY 3804F093-80 |
| 23 | MAY 7107P017-60 |
| 24 | MAY 3406F020-80 |
| 24 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 24 | MAY 3406J007 |
| 24 | MAY 7101P057-60 |
| 25 | MAY Y7101P25460 |
| 25 | MAY 7101P101-60 |
| 26 | MAY 7101P042-60 |
| 27 | MAY 3604F017-45 |
| 27 | MAY 7212P002-60 |
| 28 | MAY 7112P019-60 |
| 29 | MAY 7803P002-60 |
| 31 | MAY 3807F205-45 |
| 32 | MAY 2002W028-84 |
| 32 | MAY 2002W028-81 |
| 32 | MAY 2002W028-86 |
| 33 | MAY 8026P003-60 |
