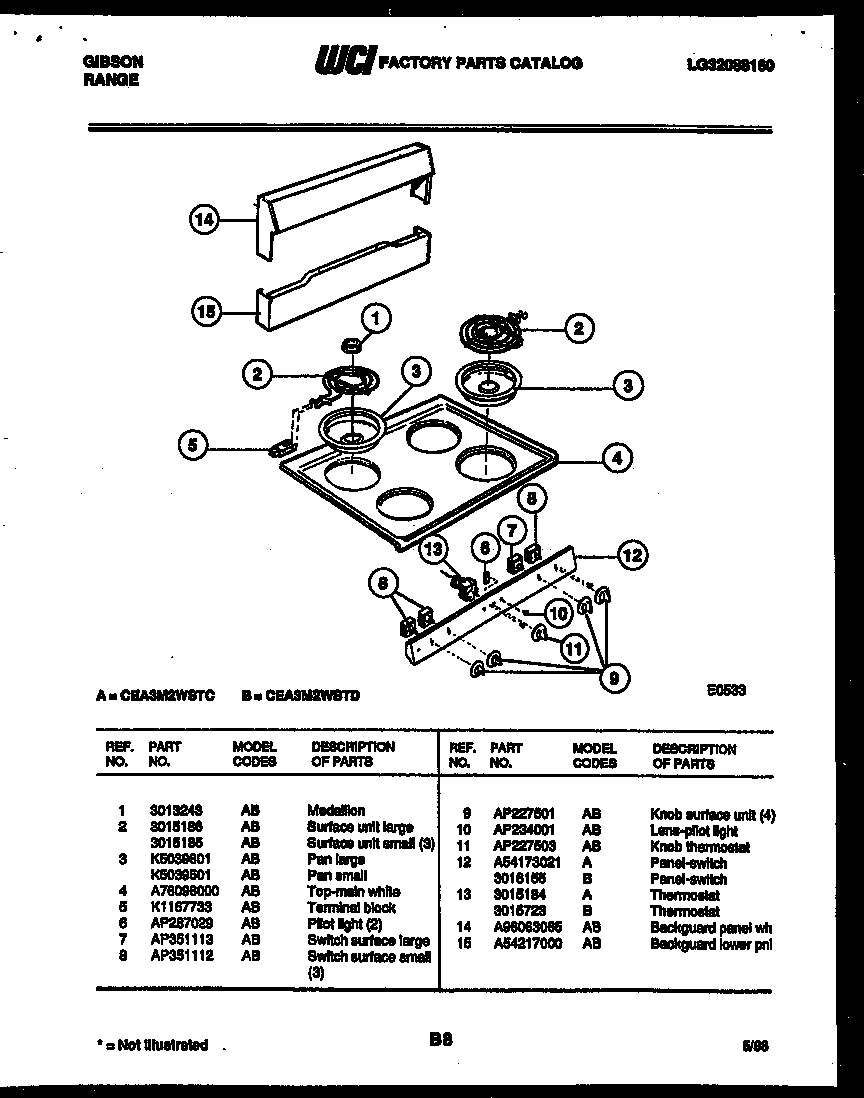

CEA3M2WSTC 02 – BACKGUARD AND COOKTOP PARTS

CEA3M2WSTC 02 – BACKGUARD AND COOKTOP PARTS

Written by

in

CEA3M2WSTC 02 – BACKGUARD AND COOKTOP PARTS

Products

PositionProduct
1MEDALLION
2A318372210 Frigidaire Oven Range 6" 1250W Surface Element
2316442300 Frigidaire Oven 2100W Coil Element 8
3316048413 Frigidaire Oven Range Chrome 8" Drip Bow
3A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
4WCI A76096000
55303935058 Frigidaire Oven Burner Receptacle Kit
6PILOT LIGHT (2)
85303935086 Frigidaire Oven Top Burner Switch Kit
9SURFACE KNOB (4)
10WCI AP234001
11WCI AP227503
12WCI A54173021
13WCI 3015184
14BACKGUARD-PNL WHITE
15WCI A54217000
