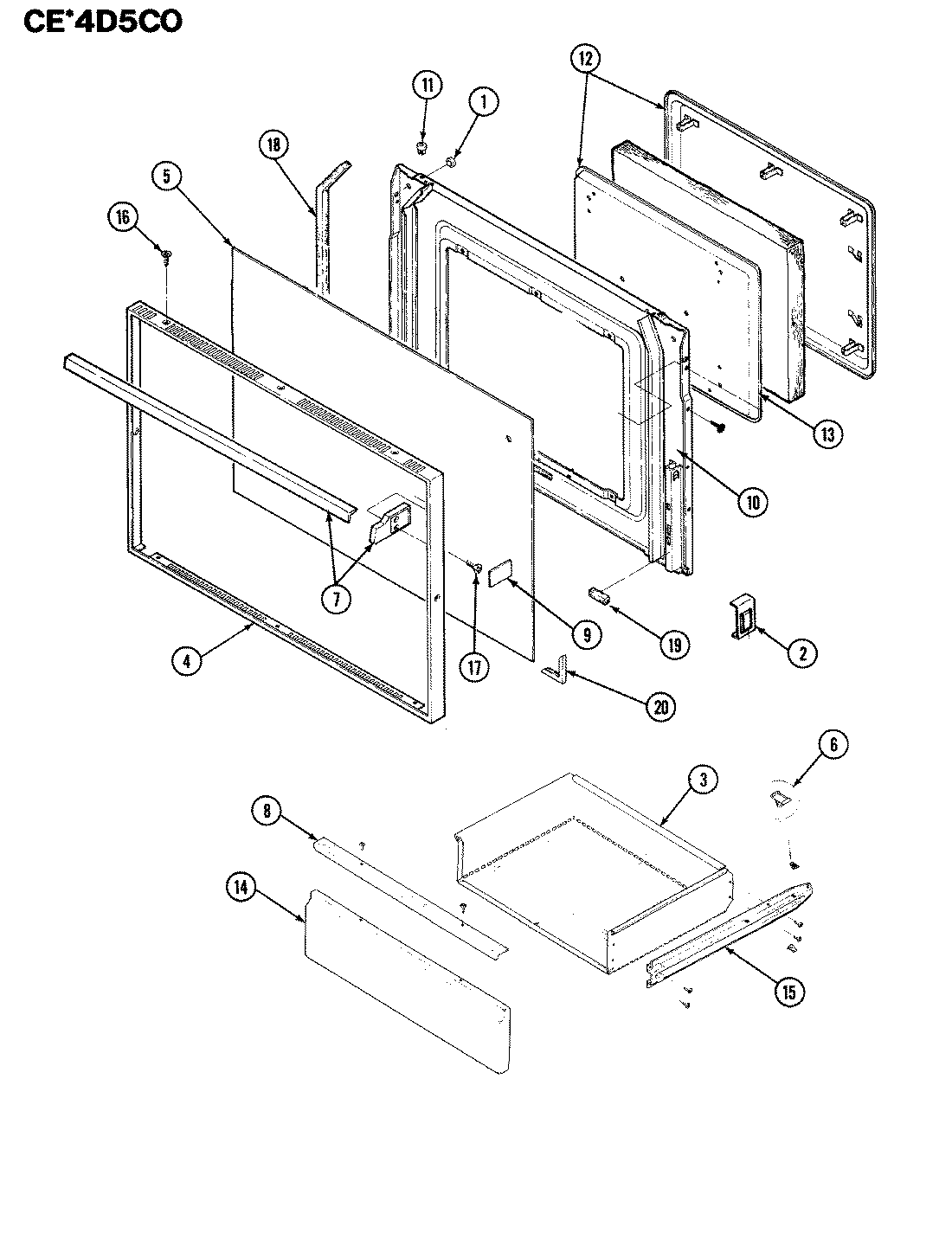

CEA4D59CO 03 – DOOR/DRAWER

CEA4D59CO 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 3802F044-51
1MAY 3801F031-51
1MAY 8003P002-60
2CLIP, DOOR
3MAY 3405F008-80
4MAY 7706P243-60
5MAY 7902P275-60
6MAY 8016P004-60
7MAY 7701P047-60
8MAY 7701P014-70
8MAY 7701P014-74
8MAY 7701P014-71
9MAY 7728P012-60
10MAY 2402W128-15
11WP7103P114-60 Whirlpool Snap Nut
12MAY 2410A028-15
13MAY 2410F012-51
14MAY 2416F006-70
14MAY 2416F006-74
14MAY 2416F006-71
15MAY 3406F020-80
16WP7101P126-60 Whirlpool Screw
17MAY 7101P123-60
17MAY 7101P061-60
18MAY 7208P002-60
19MAY 7208P011-60
20MAY 8010P045-60
