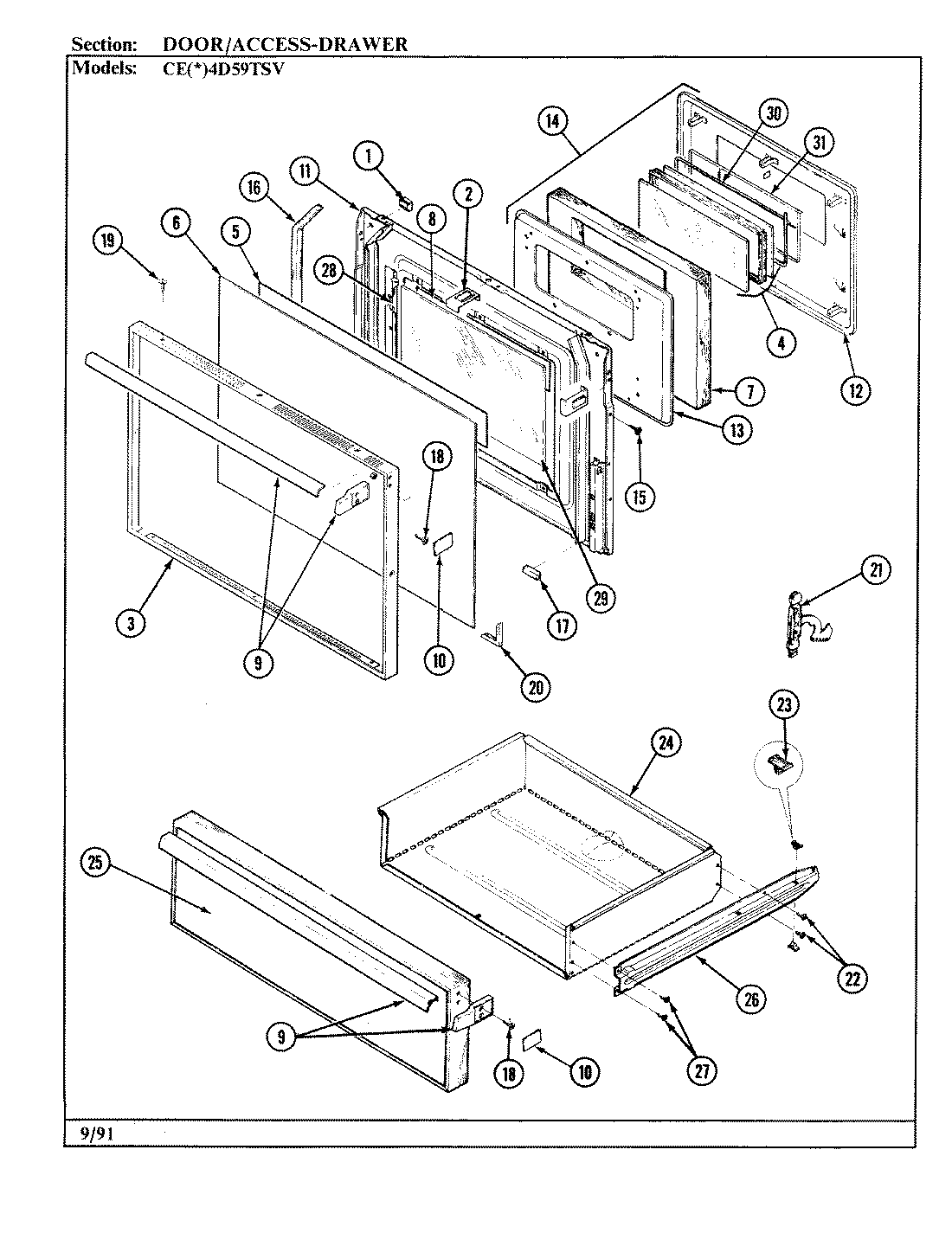

CEA4D59TSV 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 8003P009-60
2	CLIP, DOOR
3	MAY 7706P243-60
4	MAY 7902S303-60
5	MAY 8270P033-60
6	MAY 7902P276-60
6	MAY 7902P277-60
6	MAY 7902P278-60
7	MAY 4804F006-60
8	MAY 8270P071-60
9	MAY 7701P047-60
10	MAY 7728P068-60
11	MAY 2402W173-19
11	WP7103P114-60 Whirlpool Snap Nut
11	MAY 8114P274-60
12	MAY 2410W041-19
13	MAY 2410F016-51
14	MAY 2410A041-19
15	MAY 7107P017-60
16	MAY 7208P002-60
17	MAY 7208P011-60
18	MAY 7101P123-60
19	WP7101P126-60 Whirlpool Screw
20	MAY 8010P045-60
21	MAY 3420A033-34
22	MAY 7101P061-60
23	MAY 8016P009-60
23	MAY 8016P004-60
24	SCREW
24	MAY 3405F008-80
25	MAY 2416S034-74
25	MAY 2416S032-70
25	MAY 2416S035-71
26	MAY 3406F026-80
28	MAY 3804F051-80
29	MAY 7902P097-60
30	MAY 7201P018-60
31	MAY 3804F022-45
