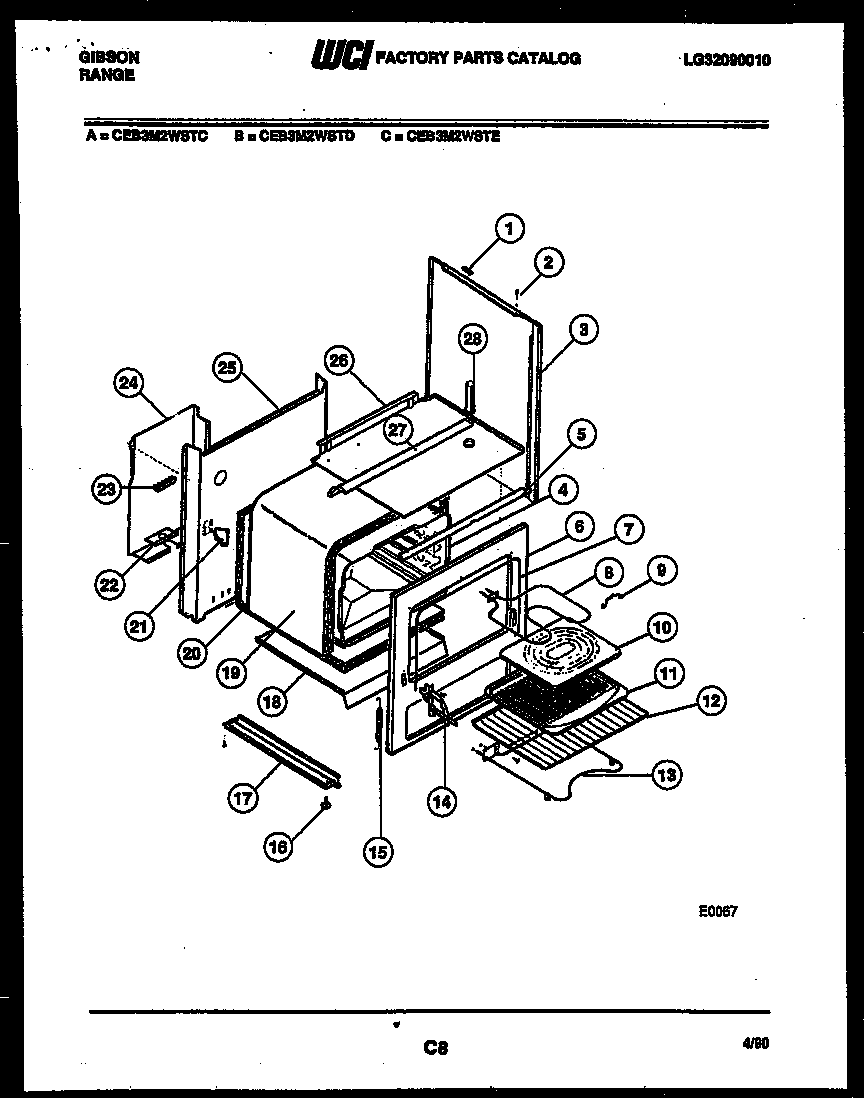

CEB3M2WSTC 04 – BODY PARTS

Products

Position	Product
1	GROMMET MAIN TOP
2	GROMMET
3	PANEL-BODYSIDE (WHITE) (2)
4C	WCI A51119002
4B	WCI A51151000
4A	WCI A51133002
4	WCI A51132002
4D	WCI A51101002
5	SUPPORT-CONTROL PANEL
6	WCI A98389001
7	SEAL – DOOR
8	WCI 3009293
9	WCI 3009445
10	WCI A43001000
11	WCI A53008000
12	WCI 3016128
13	WCI 3009292
14	WCI 3204670
14A	318348801 Frigidaire Oven Left Side Door Hinge
15	SPRING DOOR (2)
16	WCI 08008041
17	BASE RAIL
18	PAN-INSULATION
19	WCI 3016946
20	WCI 3016947
21	SUPPORT-REAR OVN (2)
22	WCI 08011558
23	5304409888 Frigidaire Oven Terminal Block with Hardware
24	COVER-WIRE
25	WCI 3016944
26	WCI 08013947
27A	CLIP BACKSPLASH CORNER
27	SHIELD SWITCH
27B	CLIP-CAPILLARY (NON-ILLUSTRATED)
28	TUBE-VENT
