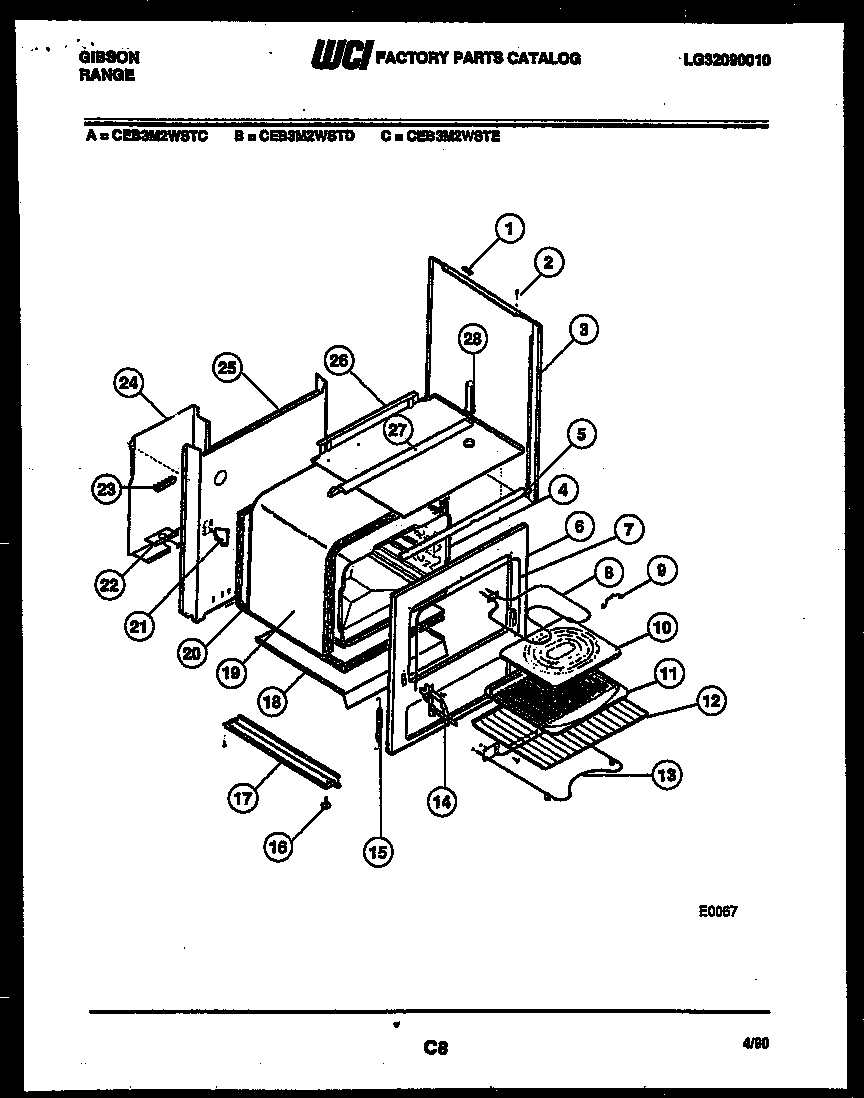

CEB3M2WSTD 04 – BODY PARTS

Products

Position	Product
1	GROMMET MAIN TOP
2	GROMMET
3	PANEL-BODYSIDE (WHITE) (2)
4A	LINER-LEFTSIDE
4	LINER-RIGHT SIDE
4B	WCI 3017600
4C	WCI 3017598
4D	LINER-OVEN BTM
5	SUPPORT-CONTROL PANEL
6	WCI 3017601
7	SEAL – DOOR
8	WCI 3009293
9	WCI 3009445
10	BROILER GRID
11	WCI 3016973
12	WCI 3016128
13	WCI 3009292
14	WCI 3204670
14A	318348801 Frigidaire Oven Left Side Door Hinge
15	SPRING DOOR (2)
16	WCI 08008041
17	BASE RAIL
18	PAN-INSULATION
19	WCI 3016946
20	WCI 3016947
21	SUPPORT-REAR OVN (2)
22	SUPPORT-CONDULT
23	5304409888 Frigidaire Oven Terminal Block with Hardware
24	COVER-WIRE
25	WCI 3016944
26	WCI 3016943
27	SHIELD SWITCH
27B	CLIP-CAPILLARY (NON-ILLUSTRATED)
27A	CLIP BACKSPLASH CORNER
28	TUBE-VENT
