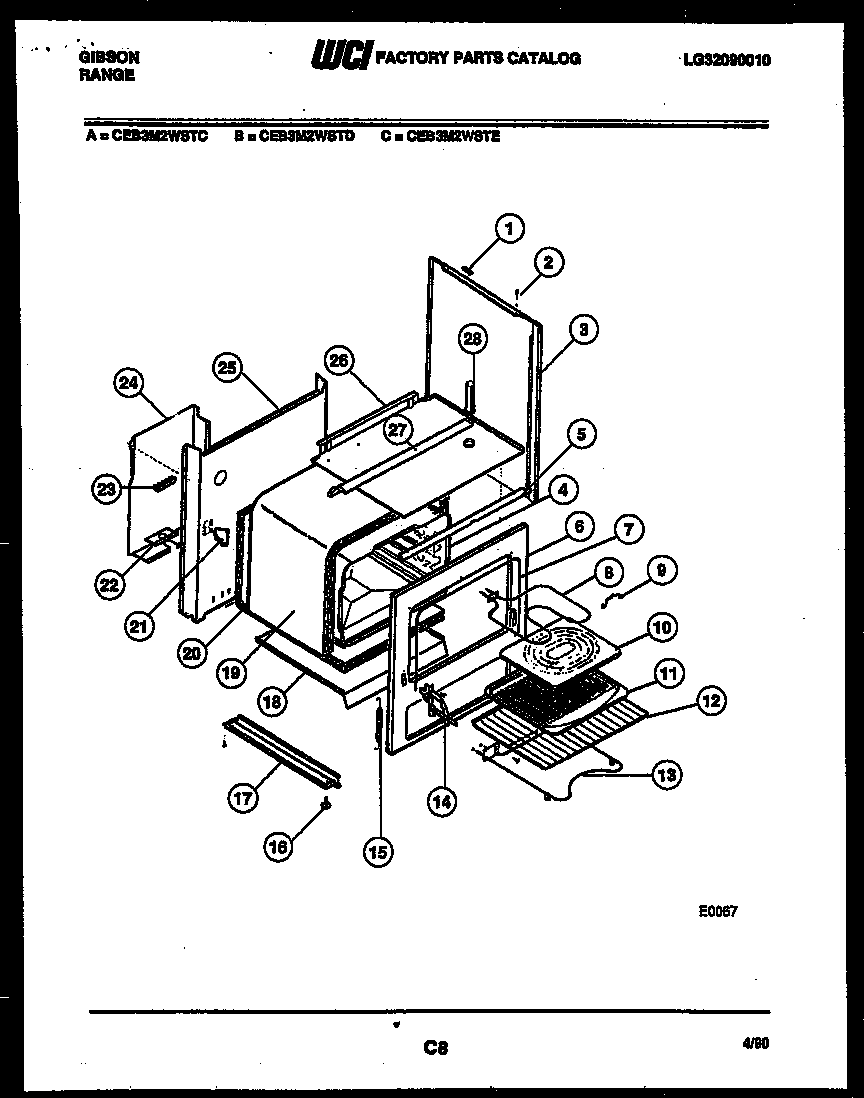

CEB3M2WSTE 04 – BODY PARTS

Products

Position	Product
1	GROMMET MAIN TOP
2	GROMMET
3	PANEL-BODYSIDE (WHITE) (2)
4	LINER-RIGHT SIDE
4D	LINER-OVEN BTM
4C	WCI 3017598
4B	WCI 3017600
4A	LINER-LEFTSIDE
5	SUPPORT-CONTROL PANEL
6	FRAME-FRONT
7	SEAL – DOOR
8	WCI 3009293
9	WCI 3009445
10	BROILER GRID
11	WCI 3016973
12	WCI 3016128
13	WCI 3009292
14	WCI 3204670
14A	318348801 Frigidaire Oven Left Side Door Hinge
15	SPRING DOOR (2)
16	WCI 3051080
17	BASE RAIL
18	PAN-INSULATION
19	WCI 3016946
20	WCI 3016947
21	SUPPORT-REAR OVN (2)
22	SUPPORT-CONDUIT
23	5304409888 Frigidaire Oven Terminal Block with Hardware
24	COVER-WIRE
25	MAIN BACK
26	BURNER BOX BOTTOM
27A	CLIP BACKSPLASH CORNER
27	SHIELD SWITCH
27C	ANTI-TIP KIT
27B	CLIP-CAPILLARY (NON-ILLUSTRATED)
28	TUBE-VENT
