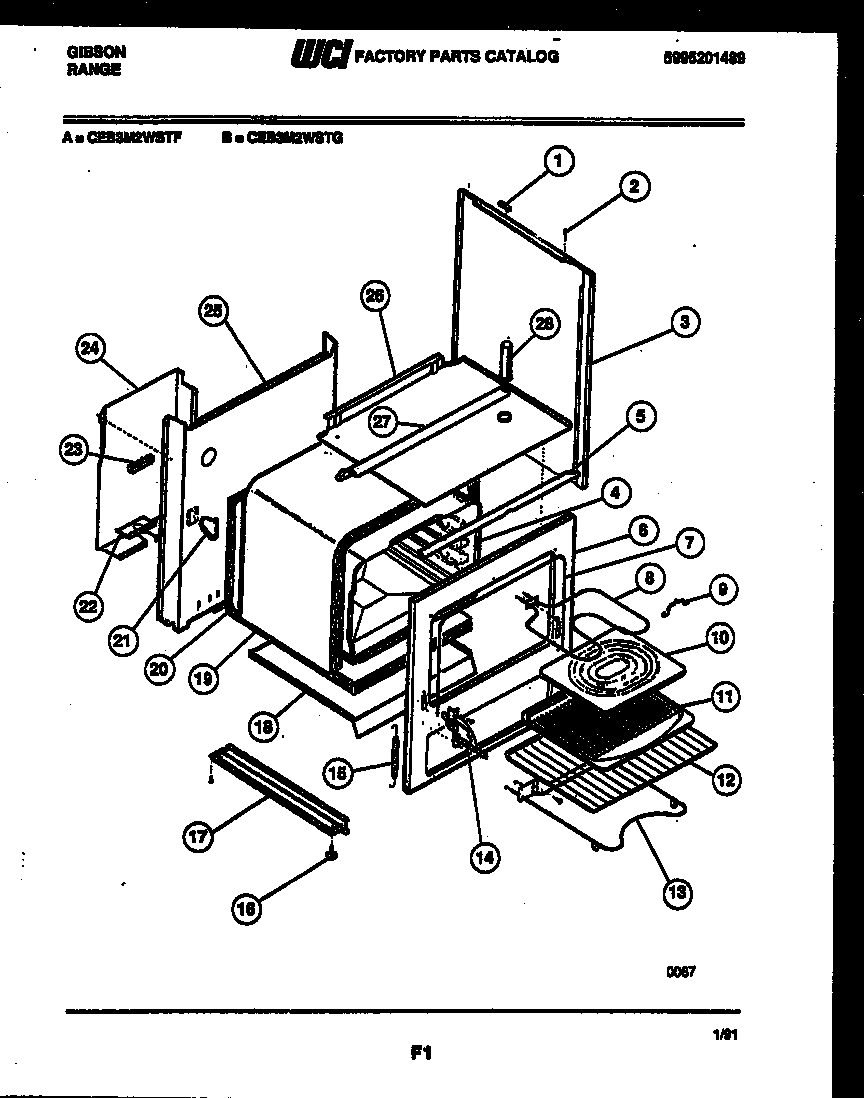

CEB3M2WSTF 04 – BODY PARTS

Products

Position	Product
*35539	WCI 19100210113
*35539	WCI 5303210891
*35539	WCI 5303210892
1	GROMMET-MAINTOP
2	GROMMET
3	BODYSIDE PANEL-WHITE (2)
4	LINER-RIGHT SIDE
4B	WCI 3017600
4C	WCI 3017598
4D	LINER-OVEN BTM
4A	LINER-LEFTSIDE
5	SUPPORT-CONTROL PANEL
6	FRAME-FRONT
7	WCI 5308013916
8	WCI 5303009293
9	SUPPORT-BROIL ELMNT
10	WCI 5303017712
11	WCI 5303016973
12	WCI 5303016128
13	WCI 5303009292
14A	318348801 Frigidaire Oven Left Side Door Hinge
14	HINGE ASSY-RH
15	SPRING-OVEN DOOR
17A	Rail,base ,RH
17	RAIL-BASE, LH
18	PAN-INSULATION
19	WCI 3016946
20	WCI 3016947
21	SUPPORT-REAR OVN (2)
22	SUPPORT-CONDUIT
23	5304409888 Frigidaire Oven Terminal Block with Hardware
24	COVER-WIRE
26	BURNER BOX BOTTOM
27	SHIELD SWITCH
27C	ANTI-TIP KIT
27B	WCI 5300009126
27A	GRATE
28	TUBE-VENT
