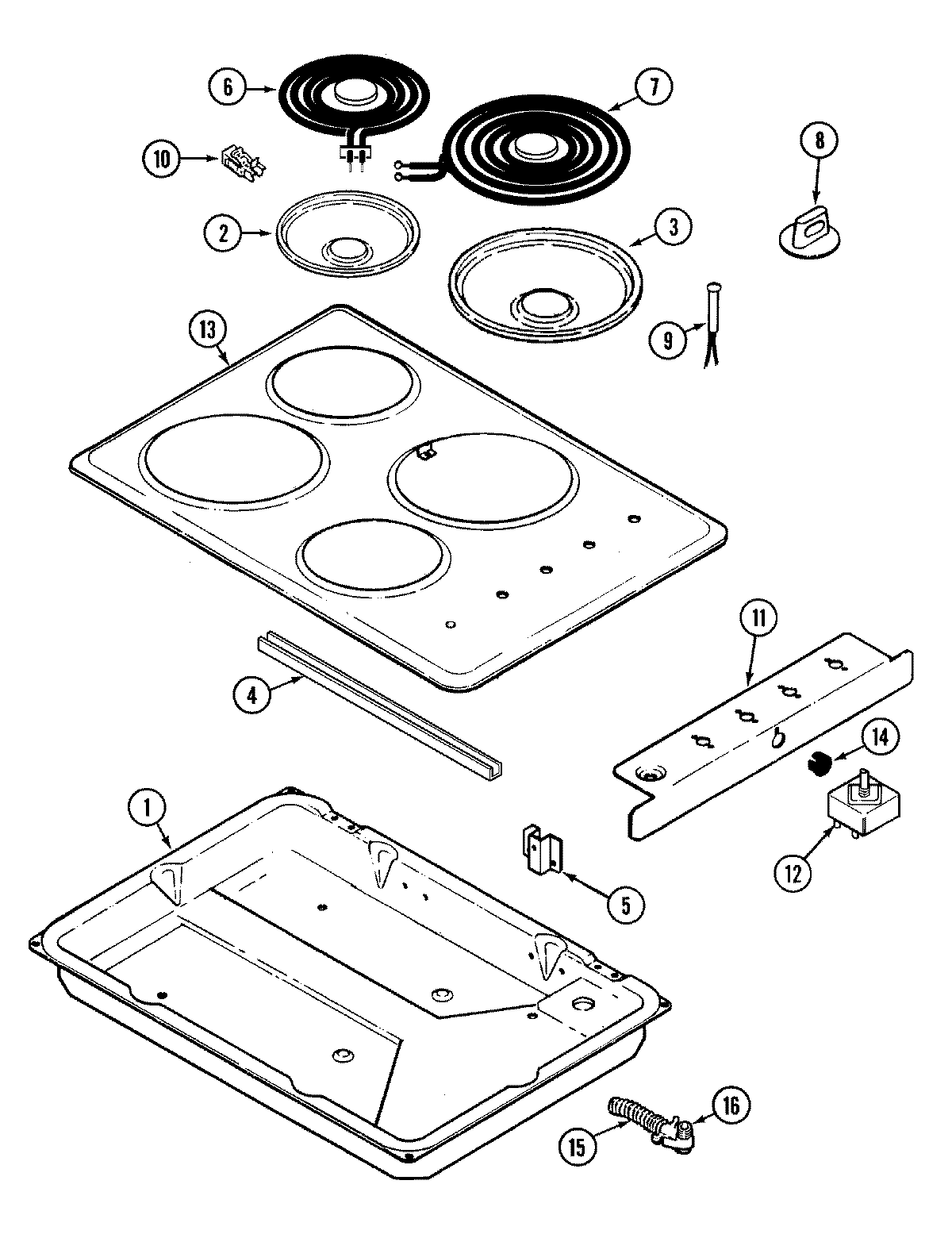

CEC1430AAB 01 – COOKTOP (COMPLETE)

Products

Position	Product
NI	MAY 74007807
NI	MAY 8111P435-60
NI	MAY 8111P470-60
NI	MAY 8111P521-60
1	BOTTOM, BURNER BOX
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
3	DRIP BOWL 8" W/HOLE CHROME
4	BRACE, TOP
5	MAY 7118P004-60
5	BRACKET, MAIN TOP SUPPORT
5	MAY 7111P002-60
6	WPW10259868 Whirlpool Surface Heating Element
7	WPW10345410 Whirlpool Surface Element
8	MAY 74003427
9	W10852510 Whirlpool Indicator Light
9	W11690131 Whirlpool Light Lens
10	12001676 Whirlpool Range Surface Burner Receptacle Kit
10	MAY 7101P042-60
11	MAY 3604F133-80
12	910187 Whirlpool Screw
12	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
12	WP7403P239-60 Whirlpool Oven Switch
13	MAY 74007826
14	MAY 8008P014-60
15	MAY 74005433
15	MAY 74001447
15	MAY 3801F072-45
16	MAY 74007831
16	MAY 7417P004-60
