CEC1536AAB 03 – TOP ASSEMBLY

CEC1536AAB 03 – TOP ASSEMBLY

Written by

in

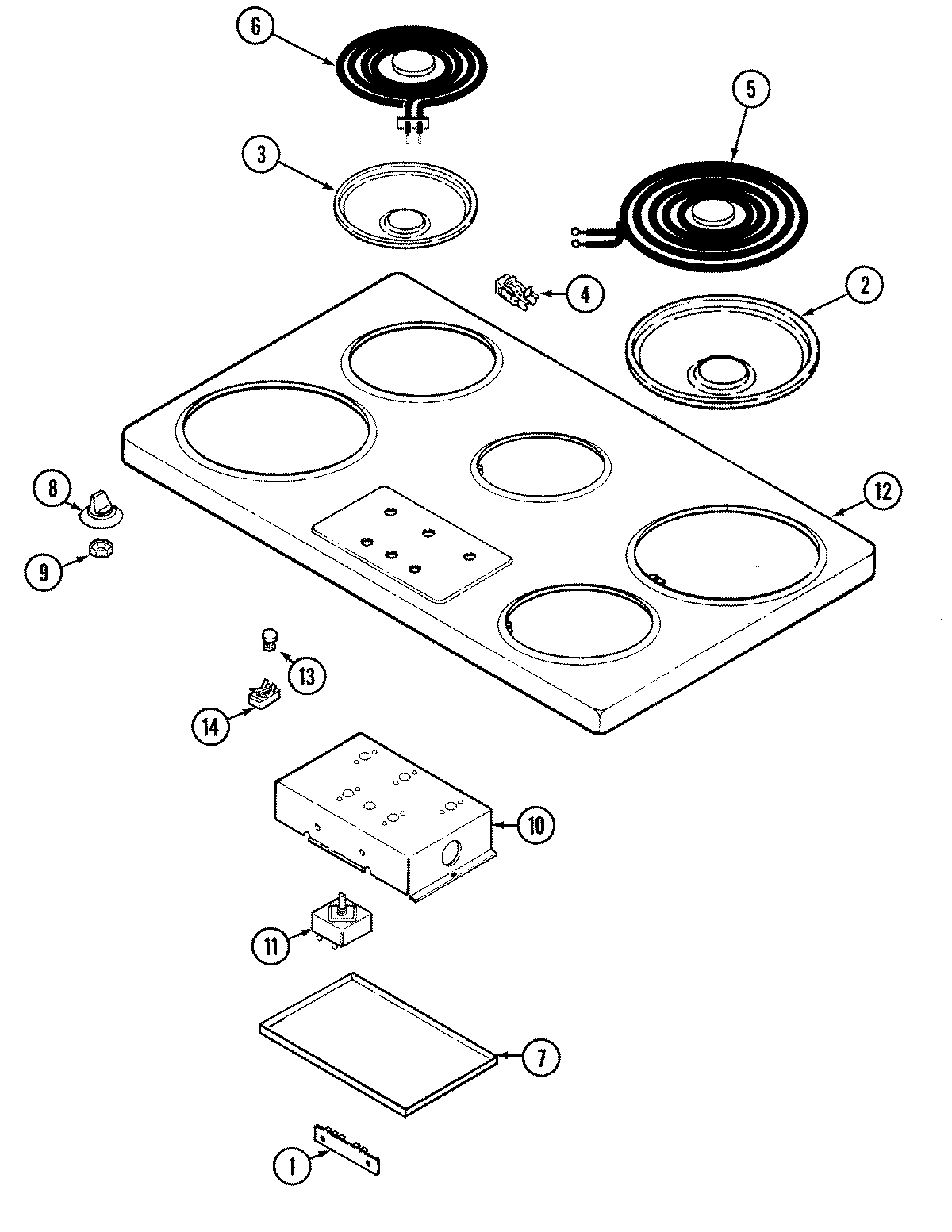

CEC1536AAB 03 – TOP ASSEMBLY

Products

PositionProduct
1SCREW (8BX3/8-NI)
1MAY 7401P015-60
2DRIP BOWL 8" W/HOLE CHROME
3WPW10196406 Whirlpool 6" Chrome Drip Bowl
412001676 Whirlpool Range Surface Burner Receptacle Kit
5WP660532 Whirlpool Oven Surface Element
5MAY 74004011
600484791 Bosch Oven Heating Element
6MAY 74005229
7MAY 4005F086-51
8MAY 74003427
9MAY 7103P021-60
10MAY 74002068
11MAY 74002069
12MAY 74007991
13W11690131 Whirlpool Light Lens
14W10852510 Whirlpool Indicator Light
