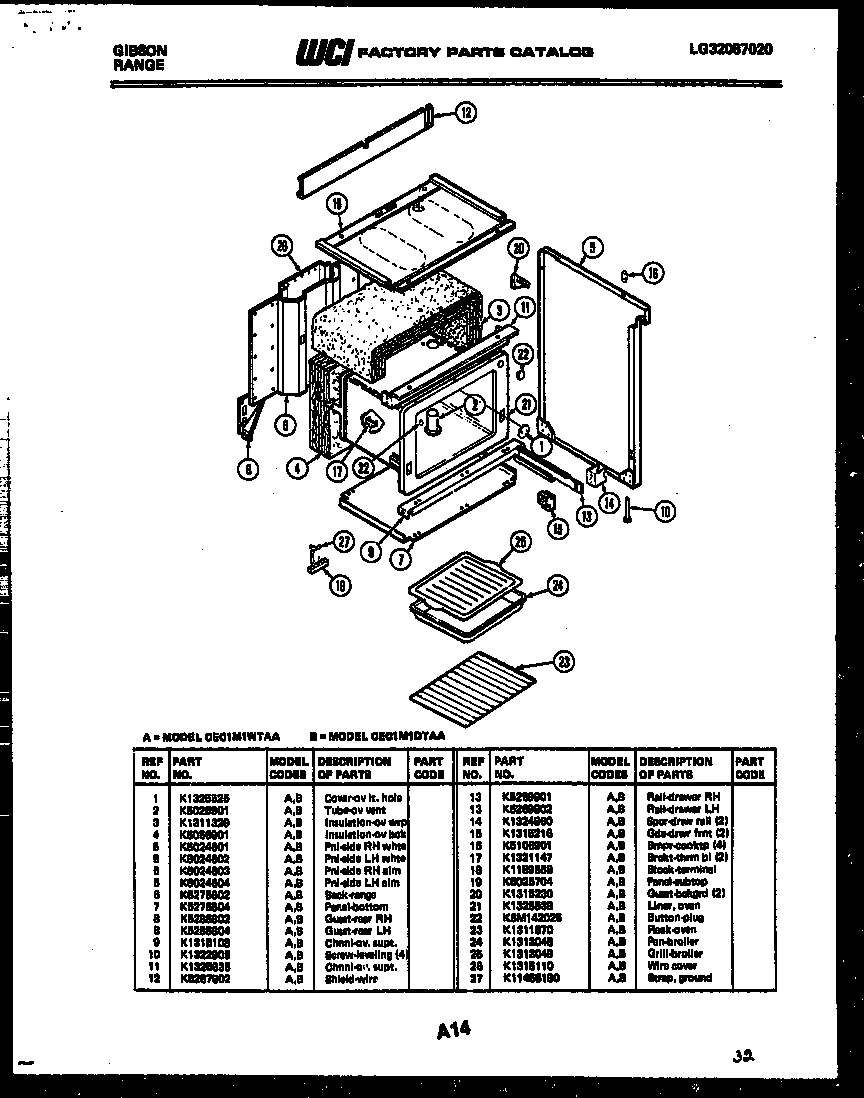

CEC1M1DTAA 07 – BODY PARTSadmin2025-04-26T08:47:09+00:00CEC1M1DTAA 07 – BODY PARTS
Products
| Position | Product |
|---|
| 1 | WCI K1325525 |
| 2 | VENT TUBE |
| 3 | INSULATION, WRAP |
| 4 | INSULATION-OVEN BACK |
| 5 | WCI K5024602 |
| 5 | WCI K5024601 |
| 5 | END PANEL, RH, ALMOND |
| 5 | END PANEL, LH, ALMOND |
| 6 | BACK |
| 7 | PANEL, BTM |
| 8 | GUSSET, RH |
| 8 | GUSSET REAR, LH |
| 9 | CHANNEL, OV. SUPT. |
| 10 | LEG |
| 11 | CHANNEL-OVEN SUPT |
| 12 | WCI K5287902 |
| 13 | RAIL, DWR, LH |
| 13 | RAIL, DWR., RH |
| 14 | SPACER, RAIL |
| 15 | GUIDE |
| 16 | BUMPER |
| 17 | BRACKET - THRM BL (2) |
| 18 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 19 | WCI K5025704 |
| 20 | GUSSET, BACKGRD (2) |
| 21 | WCI K1325538 |
| 22 | WCI K6M142025 |
| 23 | RACK (2) |
| 24 | 5304442087 Frigidaire Range Wall Oven Broil Pan and Insert |
| 25 | GRILLE, BROILER |
| 26 | WCI K1315110 |
| 27 | WCI K11455190 |
