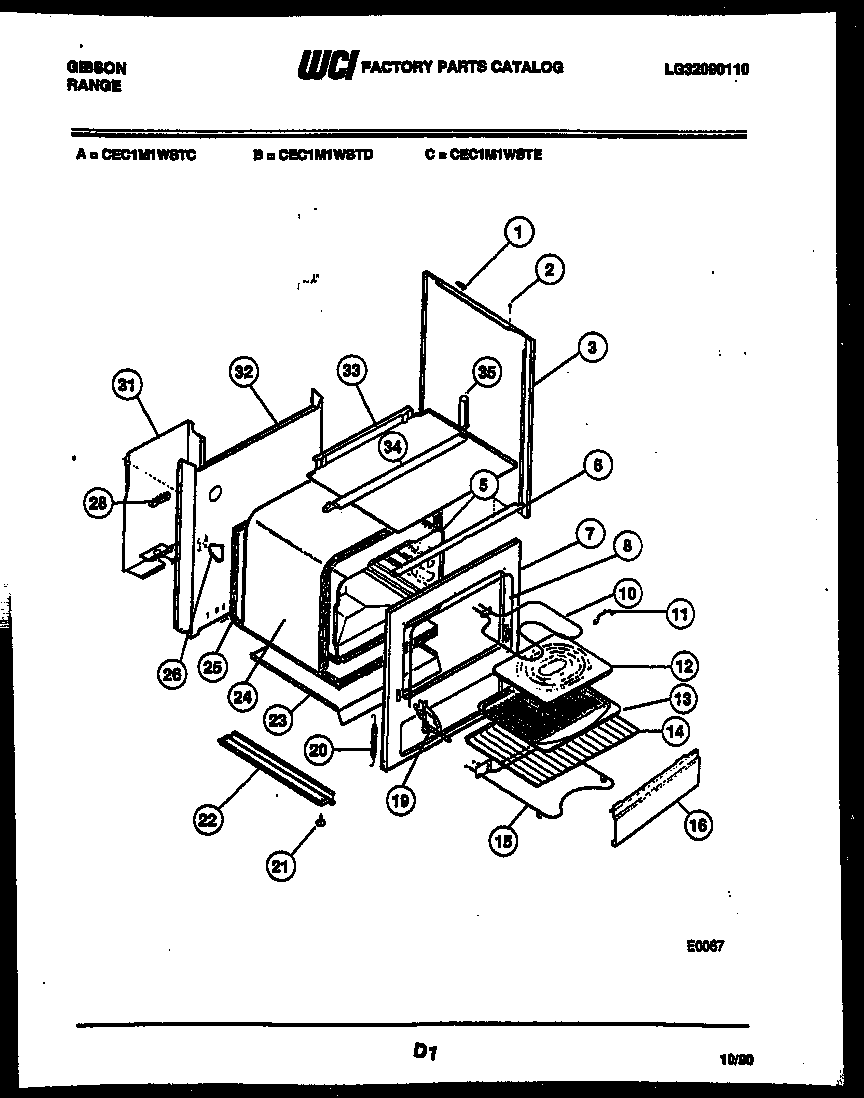

CEC1M1WSTD 04 – BODY PARTS

Products

Position	Product
*24966	CLIP-WIRE
*24967	BRACKET-INSTALLATION (2)
*24966	WCI 3203614
*24966	CLIP,BODYSIDE
*24966	WCI 5300009126
*24965	PLATE=GROUND STRAP
1	WCI 5303016129
2	GROMMET
3	BODYSIDE PANEL-WHITE (2)
3	PANEL BODYSIDE-ALMD
5	LINER-OVEN BACK
5	LINER-OVEN BOTTOM
5	LINER-OVEN TOP
5	LINER-LEFTSIDE
5	LINER-RIGHT SIDE
6	SUPPORT CONTROL PNL
7	WCI 3017790
8	DOOR SEAL
10	WCI 5303009293
11	SUPPORT-BROIL ELMNT
12	WCI 5303017712
13	WCI 5303016973
14	OVEN RACK (2)
15	WCI 5303017027
16A	SPACER (NON-ILLUSTRATED)
16	PANEL-DUMMY WHITE
16	WCI A35049004
19	318348801 Frigidaire Oven Left Side Door Hinge
19	HINGE ASSY-RH
20	SPRING-OVEN DOOR
21	WCI 5308008041
22	RAIL-BASE
23	WCI 3017031
24	WCI 3017029
25	WCI 3017028
26	SUPPORT-REAR OVN (2)
28	5304409888 Frigidaire Oven Terminal Block with Hardware
31	WCI 5303015725
32	WCI 3015724
33	BURNER BOX BOTTOM
34	WCI 3017034
35	TUBE-VENT
