CEC1M1WTAC 06 – BODY PARTS

CEC1M1WTAC 06 – BODY PARTS

Written by

in

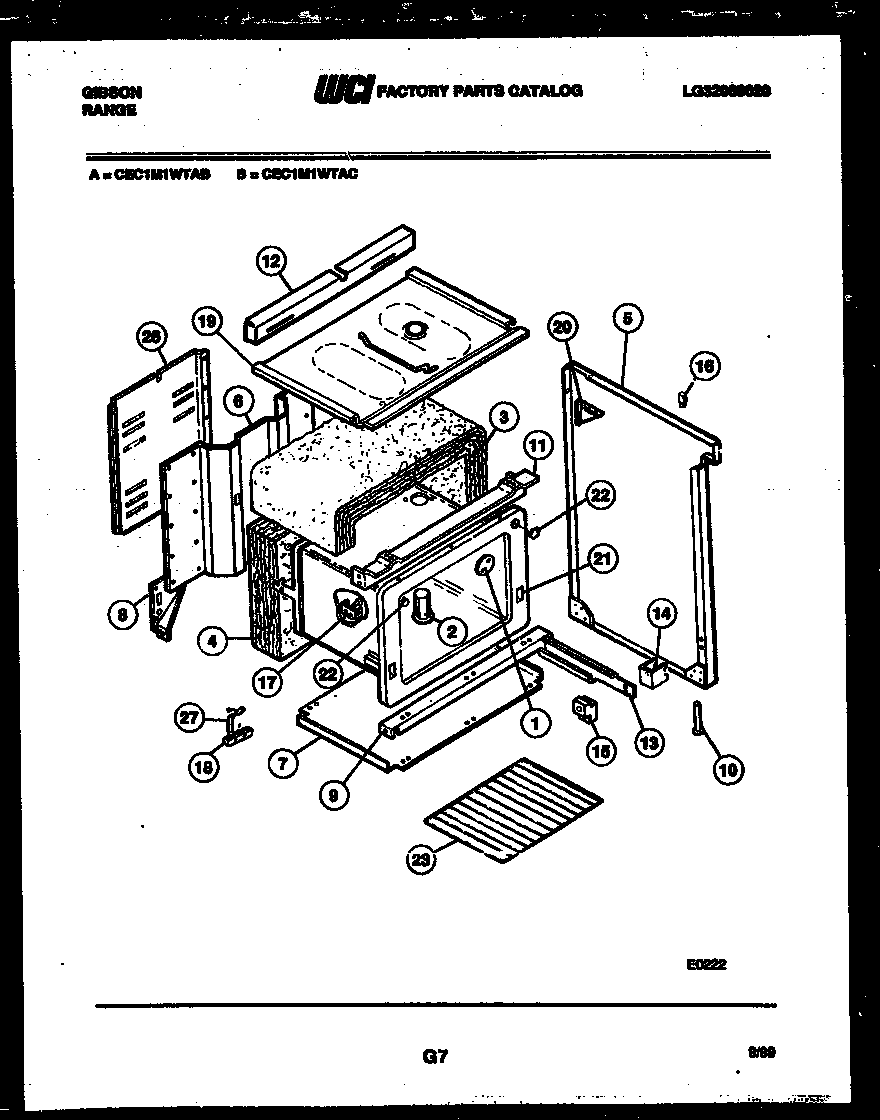

CEC1M1WTAC 06 – BODY PARTS

Products

PositionProduct
*17153ANTI-TIP KIT, (NON-ILLUSTRATED)
1WCI K1325524
2VENT TUBE
3INSULATION, WRAP
4INSULATION-OVEN BACK
5AEND PANEL, LH, ALMOND
5AWCI K5024602
5WCI K5024601
5END PANEL, RH, ALMOND
6WCI 3017575
7WCI 3203574
8AWCI 3017482
8WCI 3017481
9CHANNEL – OVEN SUPPORT LOWER
10LEG, LEVELLER (4)
11WCI 3200926
12WCI K5287902
13RAIL, DWR., RH
13ARAIL, DWR, LH
14SPACER, RAIL
15GUIDE
16BUMPER
17BRACKET – THRM BL (2)
185304409888 Frigidaire Oven Terminal Block with Hardware
19WCI K5025704
20GUSSET, BACKGRD (2)
21OVEN LINER
22WCI 3051784
23316067902 Frigidaire Oven Rack
26COVER – WIRE
26WCI K1315110
27STRAP-GROUND
