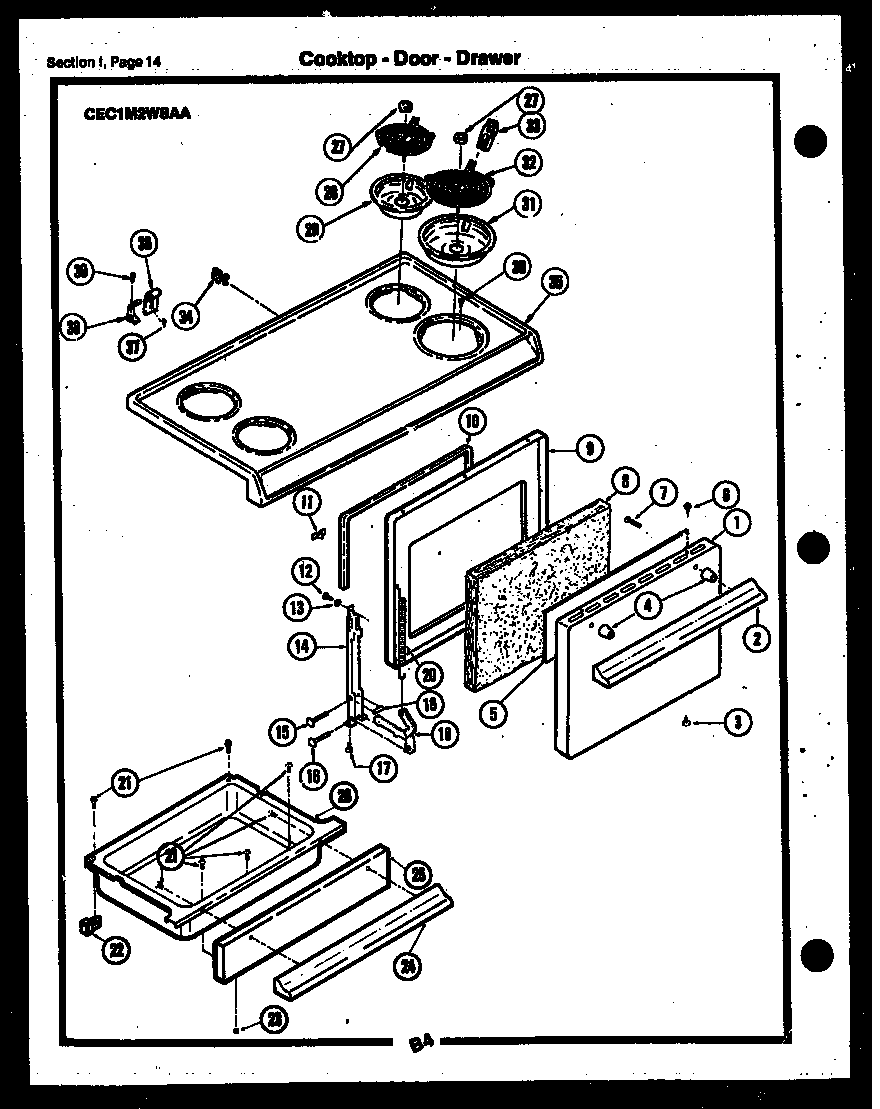

CEC1M2WSAA 10 – COOKTOP-DOOR-DRAWER

Products

Position	Product
1	WCI K1317930
4	SPACER (2)
5	WCI K5109202
7	WCI K5104201
8	INSULATION
9	WCI K1323814
10	GASKET (WITH CLIPS)
11	WCI K1309666
13	WASHER, PADDED
14	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
15	RIVET
16	AXLE
17	WCI K1164550
18	ARM ASSY.
19	WCI K1167543
20	SPRING
21	SCREW
22	GUIDE
23	5303013272 Frigidaire Oven Nut
24	HANDLE - DRAWER (CHROME)
25	WCI K1325096
26	DRAWER
27	WCI K1166379
28	318372210 Frigidaire Oven Range 6" 1250W Surface Element
29	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
30	5308014215 Frigidaire Oven Screw
31	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
32	316442300 Frigidaire Oven 2100W Coil Element 8
33	5303935058 Frigidaire Oven Burner Receptacle Kit
34	WCI K1315541
35	WCI K5270101
36	WCI K1315632
38	WCI K1315630
38A	WCI K1315631
39	08002868 Frigidaire 0 Screw Assembly
