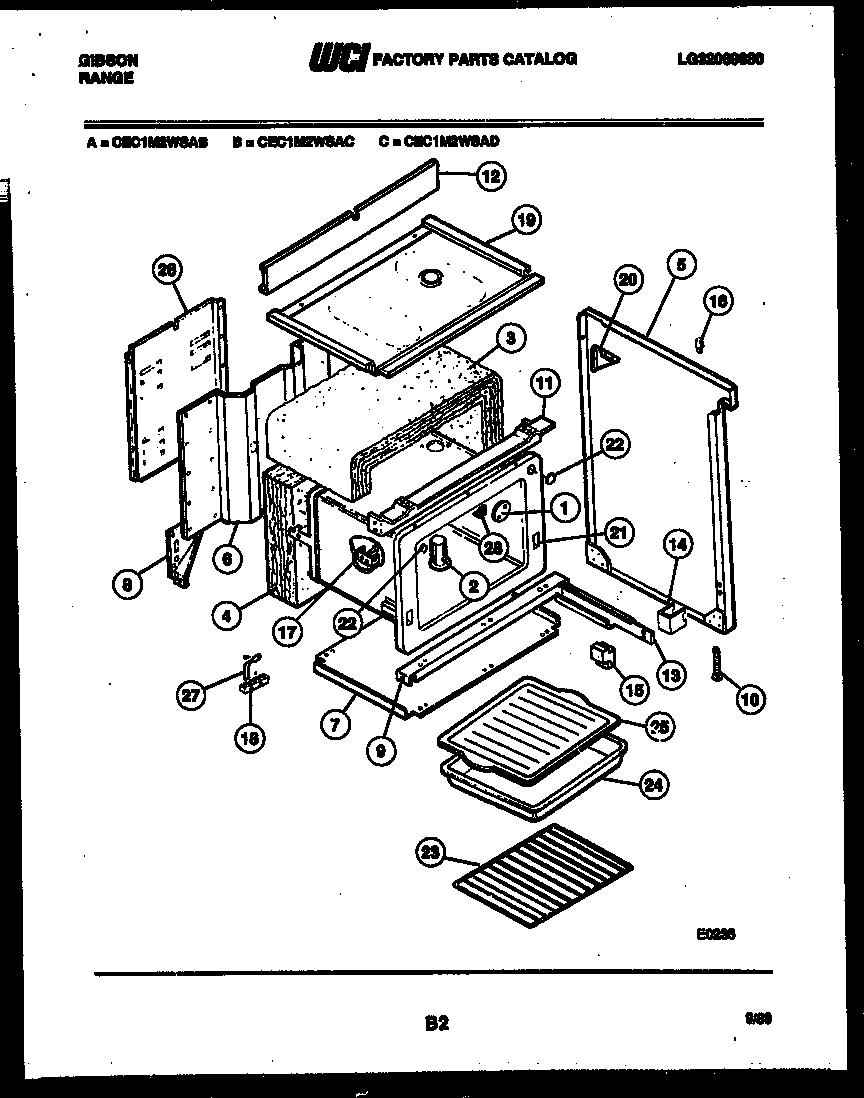

CEC1M2WSAC 06 – BODY PARTS

CEC1M2WSAC 06 – BODY PARTS

Written by

in

CEC1M2WSAC 06 – BODY PARTS

Products

PositionProduct
*18985ANTI-TIP KIT, (NON-ILLUSTRATED)
1WCI K1325524
2WCI 08012541
3INSULATION – OVEN WRAP
4INSULATION – OVEN BACK
5WCI K5024601
5END PANEL, RH, ALMOND
5AWCI K5024602
5AEND PANEL, LH, ALMOND
6BACK
7WCI 3203574
8GUSSET – REAR (2)
9CHANNEL – OVEN SUPPORT LOWER
10LEG, LEVELLER (4)
11WCI 3200926
12WCI 3205755
13ARAIL, DRAWER LH
13WCI 08015746
14SPACER, RAIL
15GUIDE
16BUMPER
17BRACKET THERM. BULB
185304409888 Frigidaire Oven Terminal Block with Hardware
19WCI 08012542
20GUSSET, BACKGRD (2)
21OVEN LINER
22WCI 3051784
23316067902 Frigidaire Oven Rack
24WCI 3205232
25WCI 3205234
26COVER – WIRE
27STRAP-GROUND
