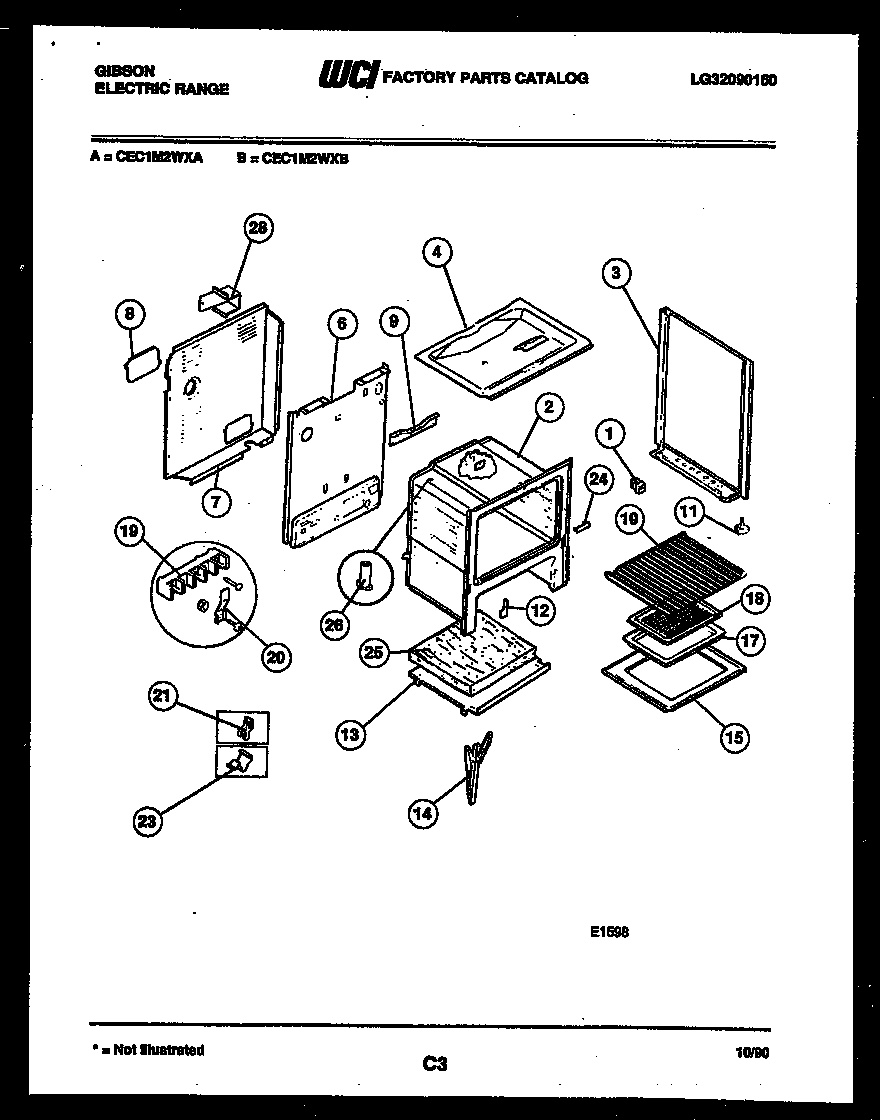

CEC1M2WXB 06 – BODY PARTS

Products

Position	Product
*22136	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
*22136	WCI 08067961
*22136	3203550 Frigidaire Oven Plug
*22136	WCI 3131252
*22135	WCI 5303206618
1	SPACER-BODYSIDE, (8)
3A	PNL-BODYSIDE RH-ALMOND
3A	PNL-BODYSIDE RH-WHITE
3	PNL-BODYSIDE LH-ALMOND
3	PNL-BODYSIDE LH-WHITE
4	WCI 3017926
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	CHAN-DOOR HINGE (2)
15	PANEL-OVEN BOTTOM
17	PAN-BROILER
17A	WCI 19100210079
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE-GROUND STRAP
21	5303284616 Frigidaire Range Bulb Clip Thermostat
23	WCI 3051367
24	COVER-BURNER BOX
25	316403803 Frigidaire Insulation
26E	316205500 Frigidaire Oven Nut
26A	INSULATION, OVEN WRAPPER
26	WCI 3051344
26D	SCREW-HINGE MTG. (6) (NON-ILLUSTRATED)
26B	INSUL - OVEN BACK (NON-ILLUSTRATED)
26C	3131903 Frigidaire Door/Drawer Bumper
28	WCI 3203582
