CEC1S3WSAC 02 – BACKGUARD

CEC1S3WSAC 02 – BACKGUARD

Written by

in

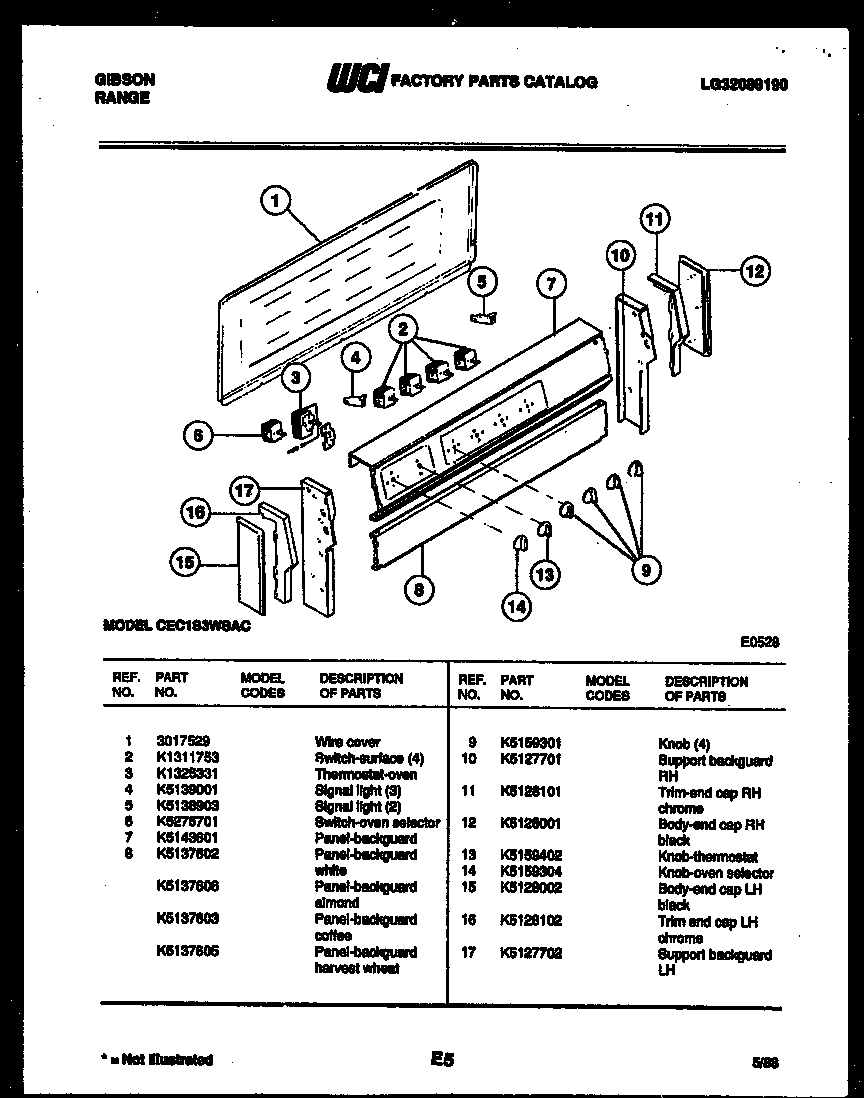

CEC1S3WSAC 02 – BACKGUARD

Products

PositionProduct
1COVER-WIRE, UPPER
2SWITCH-SURFACE UNIT (4)
3THERMOSTAT
4WCI K5139001
5SIGNAL LIGHT-SURF UNIT
6WCI K5275701
7WCI K5143601
8PANEL BACKSPLASH, WHEAT
8PANEL BACKSPLASH, WHITE
8PANEL BACKSPLASH, COFFEE
8PANEL BACKSPLASH, ALMOND
9KNOB-SURFACE UNIT (4)
10SUPPORT-BACKGRD RH
11WCI K5128101
12WCI K5128001
13WCI K5159402
14WCI K5159304
15WCI K5128002
16WCI K5128102
17WCI K5127702
