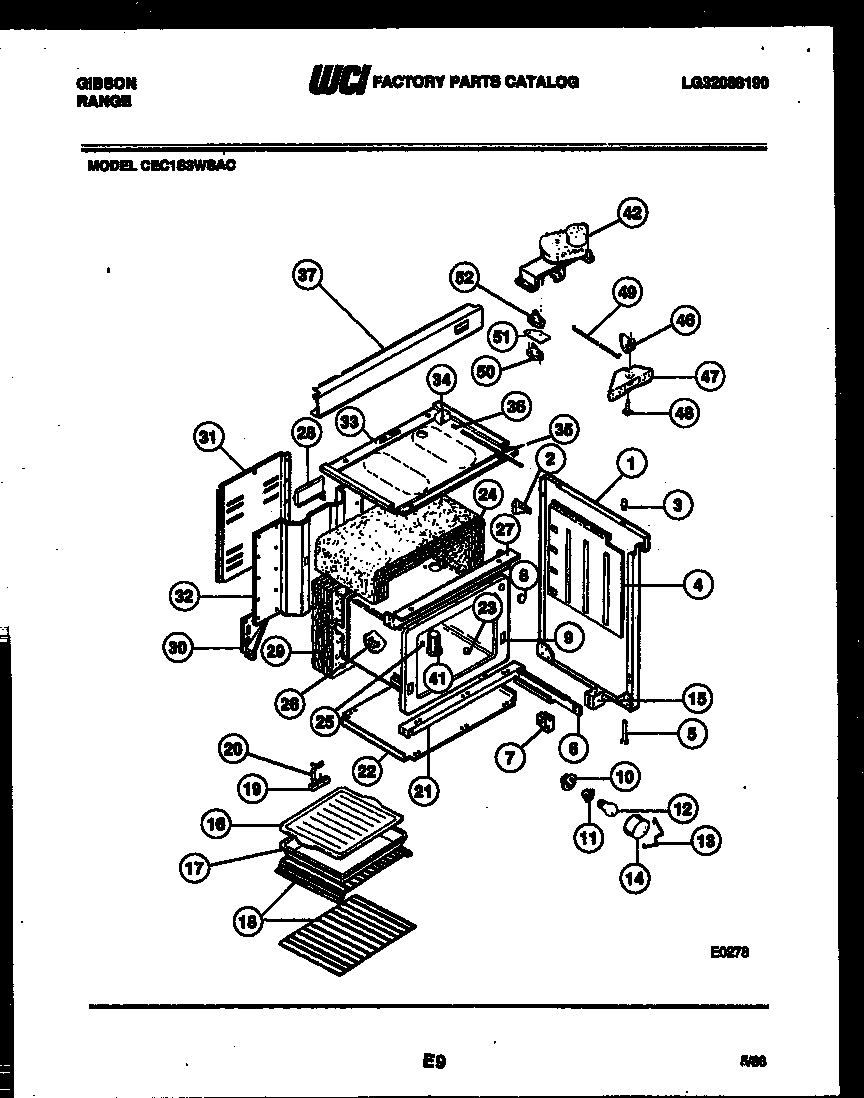

CEC1S3WSAC 06 – BODY PARTS

Products

Position	Product
1A	WCI K5024602
1	END PANEL, RH, ALMOND
1	WCI K5024601
1	WCI K5024605
1A	WCI K5024606
1A	END PANEL, LH, ALMOND
1	WCI K5024609
1A	PANEL-END RH-WHEAT
2	GUSSET, BACKGRD (2)
3	BUMPER
4	RETAINER-INSUL (2)
5	LEG
6A	RAIL, DWR, LH
6	RAIL, DWR., RH
7	GUIDE
9	WCI K1325538
10	CUP, OVEN LT
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	RETAINING WIRE
14	5304524341 Frigidaire Lens
15	SPACER, RAIL
16	GRILLE, BROILER
17	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
18A	WCI K5133501
18	316067902 Frigidaire Oven Rack
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	STRAP-GROUND
21	CHANNEL, OV. SUPT.
22	WCI 3017394
23	PLUG-BUTTON 3/4“
24	WCI K1311331
25	WCI KGM142017
26	BRACKET THERM. BULB
27	WCI K1325636
28	WCI K5134501
29	INSULATION-OVEN BACK
30	WCI 3017481
30	WCI 3017480
31	COVER – WIRE
32	WCI 3017575
33	WCI K5025802
33A	WASHER, PADDED
34	SWITCH-DOOR
35	PUSH ROD
36	WCI K1322682
37	WCI 3017633
41	VENT TUBE
42	LATCH-MOTOR
46	WCI K5260202
47	HOUSING, DOOR LATCH
48	AXLE
49	WCI K5271201
50	SWITCH-LOWER
51	INSULATOR
52	WCI K1167190
