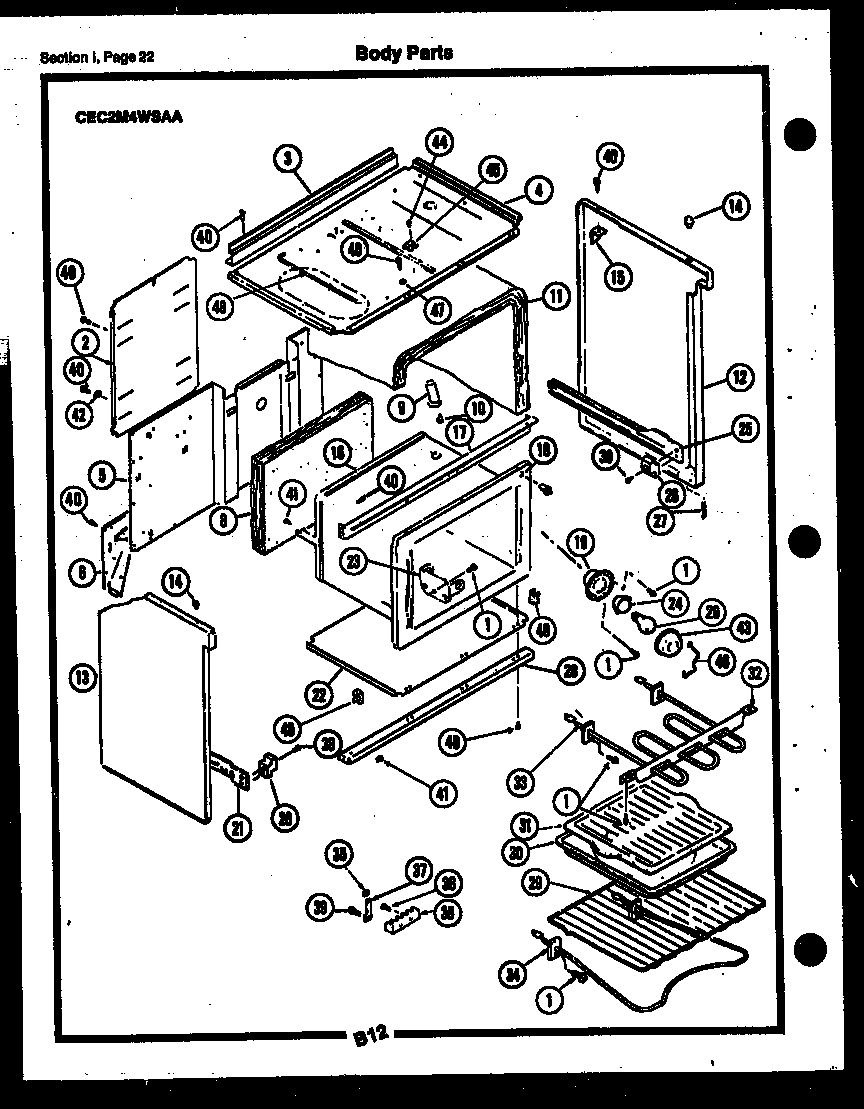

CEC2M4WSAA 14 – BODY PARTSadmin2025-04-26T08:46:53+00:00CEC2M4WSAA 14 – BODY PARTS
Products
| Position | Product |
|---|
| *11414 | WCI K5035908 |
| *11413 | WCI K5099304 |
| 1 | 08002868 Frigidaire 0 Screw Assembly |
| 2 | WCI K1315110 |
| 3 | WCI K1315109 |
| 4 | WCI K5025802 |
| 5 | WCI G5137902 |
| 6A | WCI K1325113 |
| 6 | WCI K1325114 |
| 8 | INSULATION, BACK |
| 9 | VENT TUBE |
| 10 | SCREW |
| 11 | INSULATION, WRAP |
| 12 | WCI K5024601 |
| 13 | WCI K5024602 |
| 14 | BUMPER |
| 15 | GUSSET, BACKGRD (2) |
| 16 | WCI K1325538 |
| 17 | CHANNEL-OVEN SUPT |
| 18 | SWITCH, OVEN LIGHT |
| 19 | CUP, OVEN LT |
| 20 | 316538904 Frigidaire Oven Lamp Light |
| 21 | RAIL, DWR, LH |
| 22 | WCI K1315107 |
| 23 | BRACKET THERM. BULB |
| 24 | 316116400 Frigidaire Oven Light Socket |
| 25 | RAIL, DWR., RH |
| 26 | GUIDE |
| 27 | LEG |
| 28 | CHANNEL, OV. SUPT. |
| 29 | RACK (2) |
| 30 | 5304442087 Frigidaire Range Wall Oven Broil Pan and Insert |
| 31 | GRILLE, BROILER |
| 32 | HANGER |
| 33 | 5303051516 Frigidaire Broil Element |
| 34 | 5303051519 Frigidaire Oven 2600W Bake Element |
| 35 | WCI K1266 |
| 36 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 37 | STRAP-GROUND |
| 38 | SCREW |
| 41 | SCREW |
| 42 | WCI K1099962 |
| 43 | 5304524341 Frigidaire Lens |
| 44 | WCI K1164550 |
| 45 | RETAINER |
| 46 | RETAINING WIRE |
| 47 | WASHER, PADDED |
| 48 | ROD |
| 49 | SPACER, RAIL |
