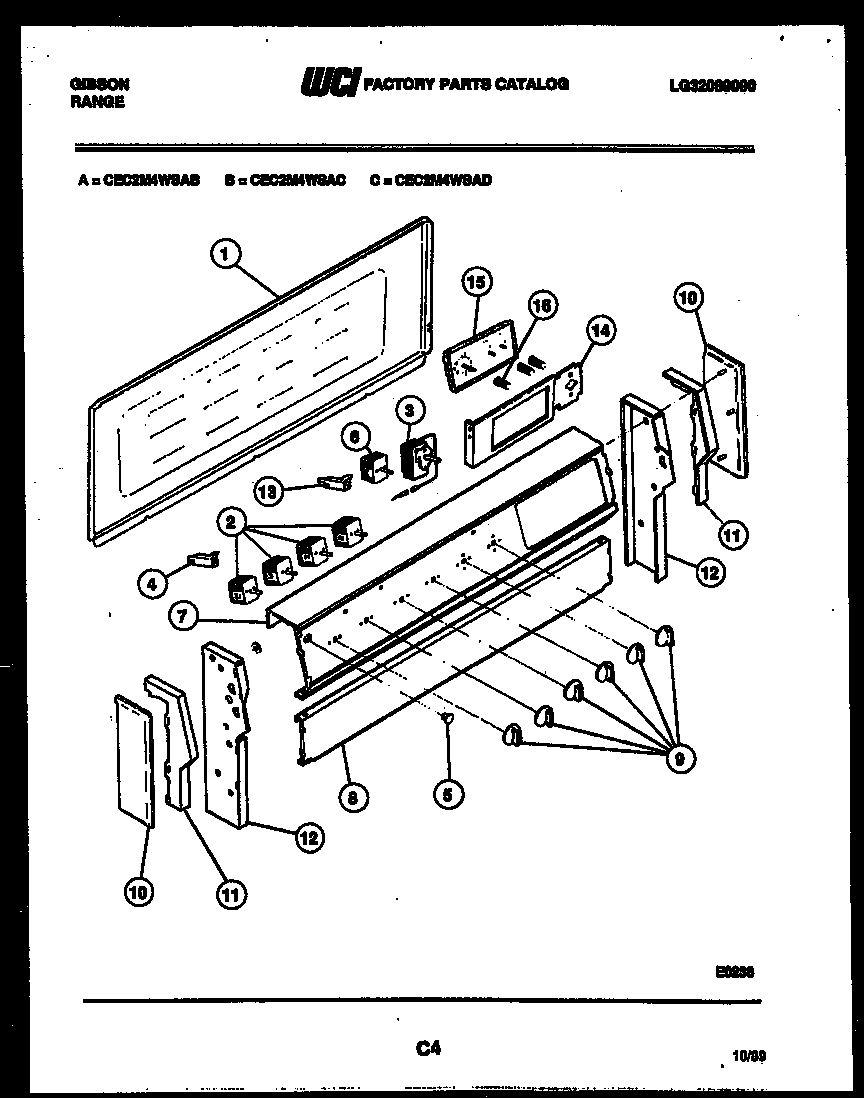

CEC2M4WSAB 02 – BACKGUARD

CEC2M4WSAB 02 – BACKGUARD

Written by

in

CEC2M4WSAB 02 – BACKGUARD

Products

PositionProduct
*19148WCI K1167966
1COVER, WIRE
25303935086 Frigidaire Oven Top Burner Switch Kit
3WCI 08005306
4SIGNAL LIGHT-SURF UNIT
5LENS – SIGNAL LIGHT (2)
6WCI 08016480
7WCI K5140001
8PANEL BACKSPLASH, WHITE
8PANEL BACKSPLASH, COFFEE
8WCI K5137604
8PANEL BACKSPLASH, WHEAT
8PANEL BACKSPLASH, ALMOND
9WCI K5159401
9KNOB – SELECTOR SWITCH
9KNOB-SURFACE UNIT (4)
10WCI 3051674
10WCI 3051675
11WCI K5128101
11WCI K5128102
12SUPPORT-BACKGRD RH
12SUPPORT-BACKGRD LH
13SIGNAL LIGHT – OVEN
14BRACKET MOUNTING
15TIMER
16WCI 3016387
