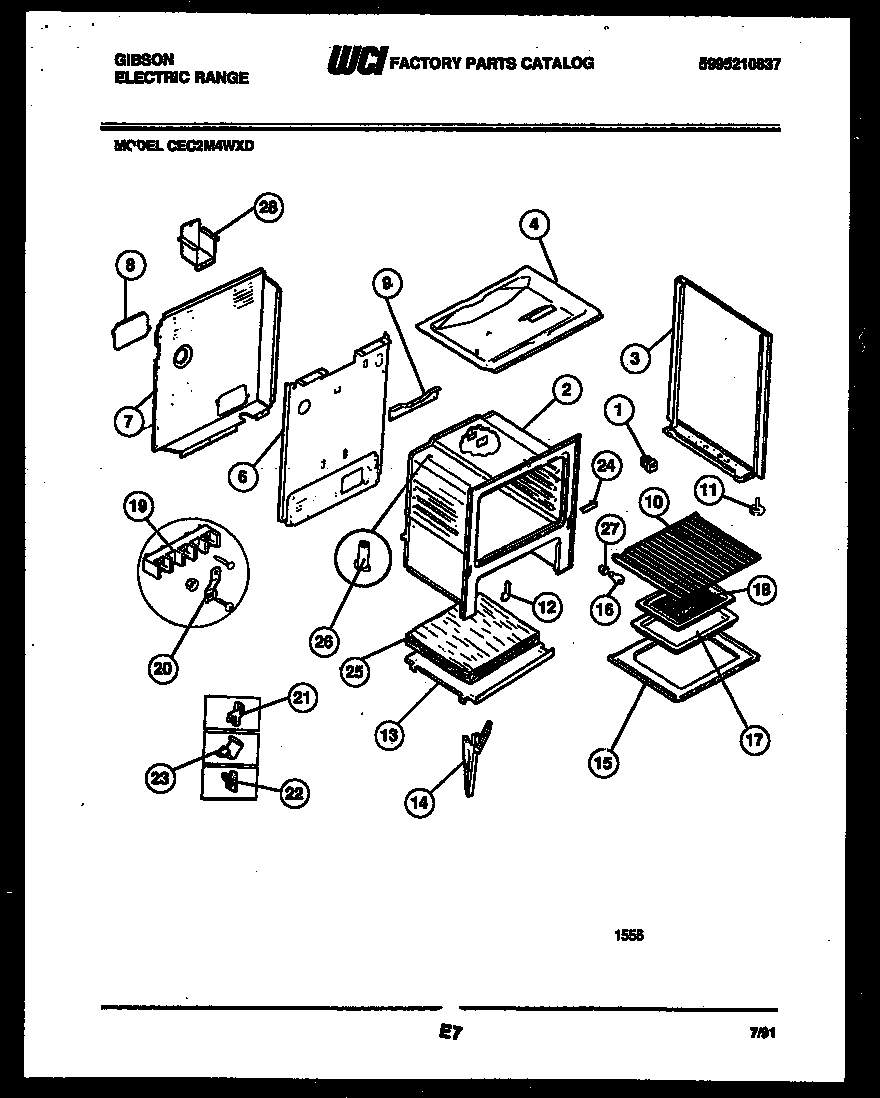

CEC2M4WXD 04 – BODY PARTS

Products

Position	Product
*46299	WCI 5303269859
*46299	ANTI-TIP KIT (NOT ILLUSTRATED)
*46299	316205500 Frigidaire Oven Nut
*46298	3131903 Frigidaire Door/Drawer Bumper
*46298	INSUL – OVEN BACK (NON-ILLUSTRATED)
*46300	3203550 Frigidaire Oven Plug
*46298	INSULATION, OVEN WRAPPER
*46299	WCI 5303206618
1	SPACER-BODYSIDE, (8)
3	WCI 5303269545
3A	WCI 5303269543
3A	PNL-B/S-RH-WHITE
3	PNL-B/S-LH-WHITE
4	WCI 5303271756
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	PANEL-OVEN BOTTOM
16	316538904 Frigidaire Oven Lamp Light
16A	WCI 19100210078
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE-GROUND STRAP
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	COVER-OVEN FRONT
25	316403803 Frigidaire Insulation
26	WCI 3051344
27	316116400 Frigidaire Oven Light Socket
28	WCI 3203582
