CEC2S5WSAC 07 – BODY PARTS

CEC2S5WSAC 07 – BODY PARTS

Written by

in

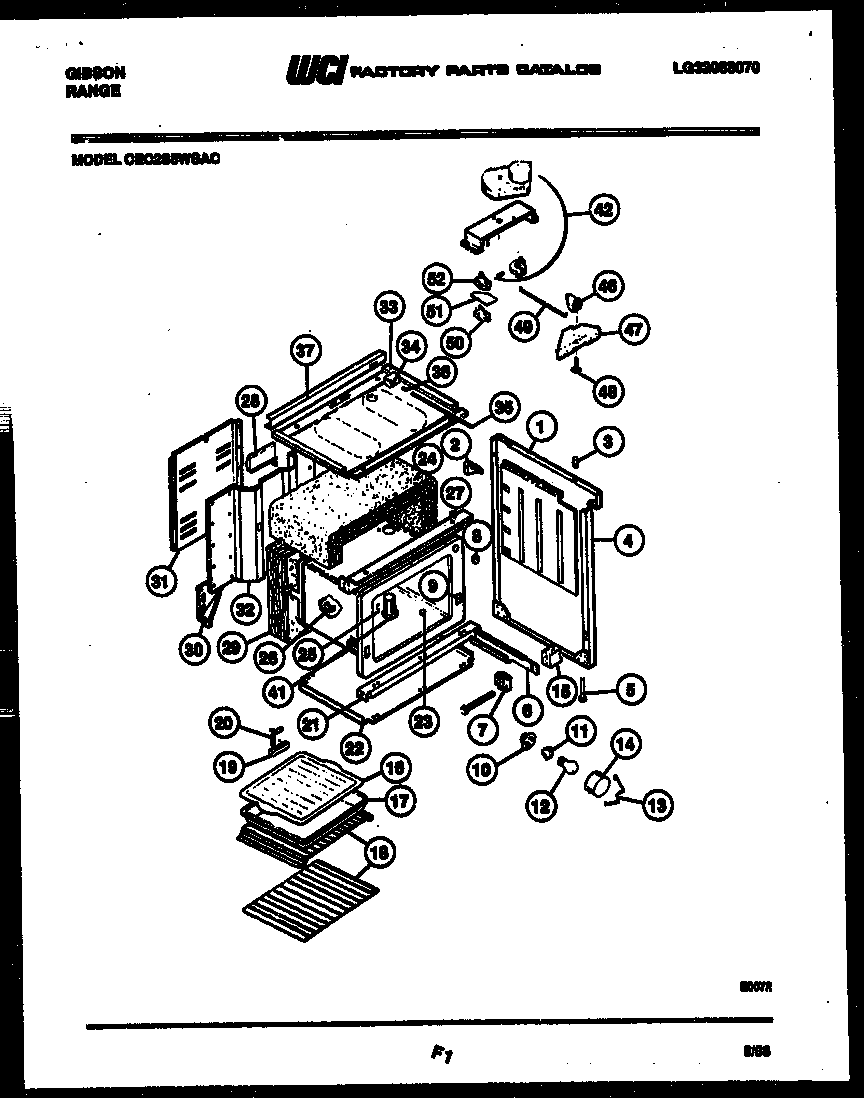

CEC2S5WSAC 07 – BODY PARTS

Products

PositionProduct
1WCI K5024602
1WCI K5024601
1WCI K5024605
1WCI K5024606
1PANEL-END RH-WHEAT
1WCI K5024607
1WCI K5024608
1WCI K5024609
1END PANEL, LH, ALMOND
1END PANEL, RH, ALMOND
2GUSSET, BACKGRD (2)
3BUMPER
4RETAINER-INSUL (2)
5LEG
6RAIL, DWR., RH
6RAIL, DWR, LH
7GUIDE
9WCI K1325538
10CUP, OVEN LT
11316116400 Frigidaire Oven Light Socket
12316538904 Frigidaire Oven Lamp Light
13RETAINING WIRE
145304524341 Frigidaire Lens
15SPACER, RAIL
16GRILLE, BROILER
175304442087 Frigidaire Range Wall Oven Broil Pan and Insert
18WCI K5133501
18316067902 Frigidaire Oven Rack
195304409888 Frigidaire Oven Terminal Block with Hardware
20STRAP-GROUND
21CHANNEL, OV. SUPT.
22WCI K5276502
23PLUG-BUTTON 3/4“
24WCI K1311331
25WCI KGM142017
26BRACKET THERM. BULB
27WCI K1325636
28WCI K5134501
29INSULATION-OVEN BACK
30GUSSET REAR, LH
30GUSSET, RH
31WCI K1315110
32BACK
33AWASHER, PADDED
33WCI K5025802
34SWITCH-DOOR
35PUSH ROD
36WCI K1322682
37WCI K5287902
41VENT TUBE
42LATCH-MOTOR
46WCI K5260202
47HOUSING, DOOR LATCH
48AXLE
49WCI K5271201
50SWITCH-LOWER
51INSULATOR
52WCI K1167190
